Intel D845EPI

Installing and Replacing Desktop Board Components
27
Connecting the Processor Fan Heatsink Cable
Connect the processor fan heatsink cable to the processor fan header (see Figure 6).
OM16290

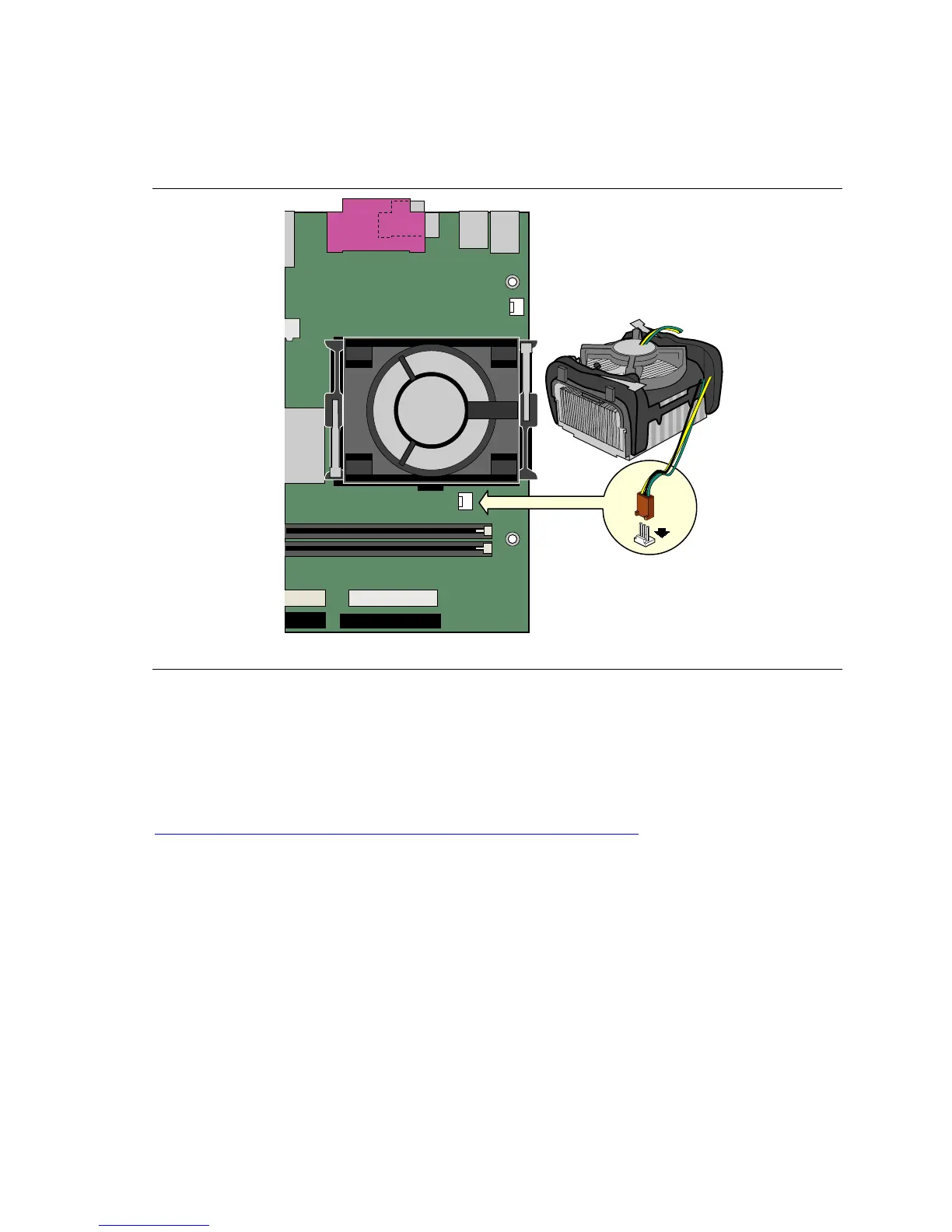

Figure 6. Connecting the Processor Fan Heatsink Cable to the Processor Fan Header
Removing a Processor
For instruction on how to remove the processor fan heatsink, refer to the Intel World Wide Web
site at:
http://support.intel.com/support/processors/pentium4/intnotes478.htm
