Installing and Replacing Desktop Board Components
39
Setting the BIOS Configuration Jumper Block

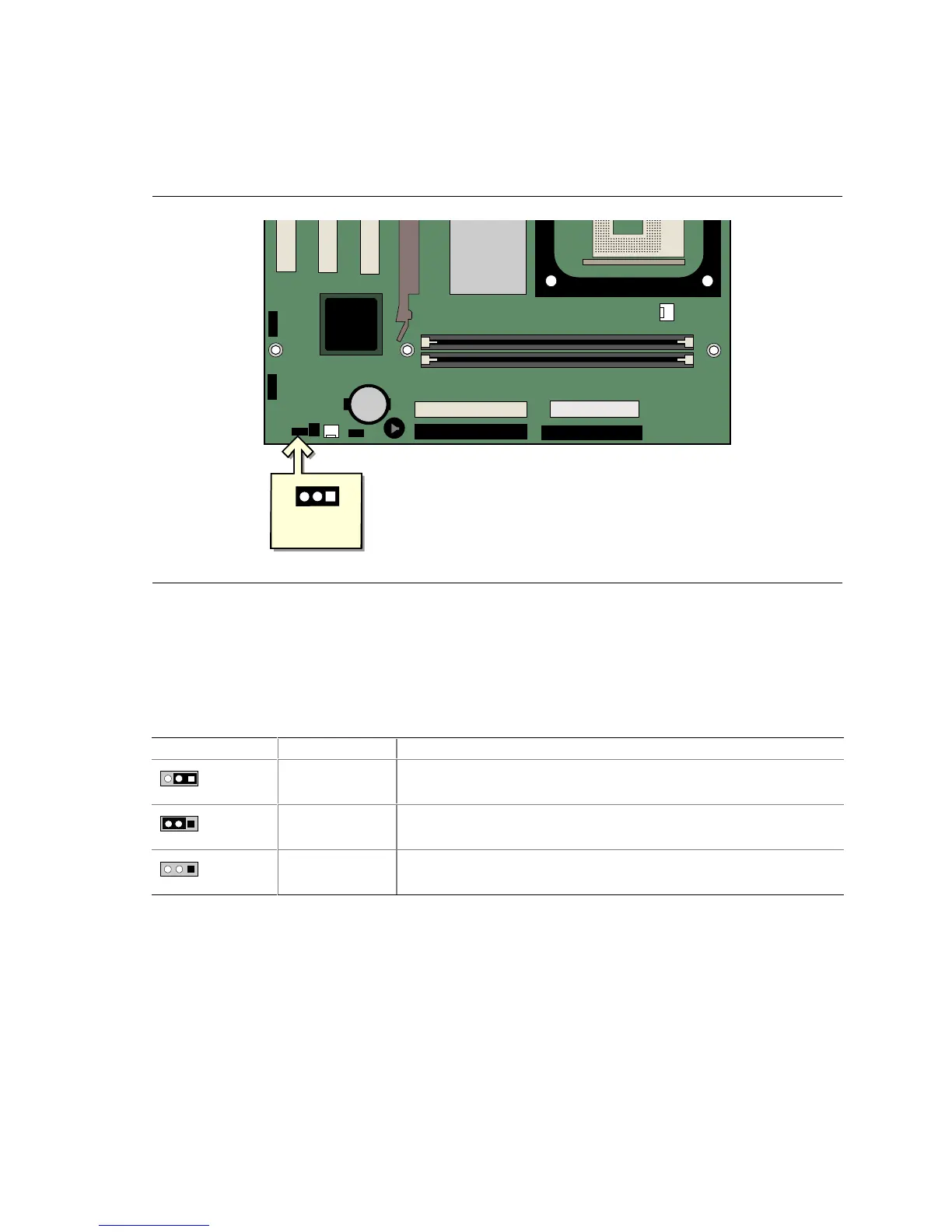

Figure 13 shows the location of the BIOS configuration jumper block.
OM16296
1
3
J9H2
Figure 13. Location of the BIOS Configuration Jumper Block
The three-pin BIOS jumper block enables all board configurations to be done in BIOS Setup.
Table 9 shows the jumper settings for the Setup program modes.
Table 9. Jumper Settings for the BIOS Setup Program Modes (J9H2)
Jumper Setting Mode Description
3
1
Normal (default)
(1-2)
The BIOS uses the current configuration and passwords for booting.
3
1
Configure
(2-3)
After the Power-On Self-Test (POST) runs, the BIOS displays the
Maintenance Menu. Use this menu to clear passwords.
3
1
Recovery
(None)
Recovers BIOS from a diskette in the event of a failed BIOS update.
