Intel Desktop Board D945GCLF Product Guide
30
Connecting Internal Headers
Before connecting cables to the internal he
aders, observe the pr
ecautions in
"Before
You Begin" on page 21. Figure 11 shows
the
location of the board’s internal headers.
Item Description
A Audio
B
Hi-speed USB 2.0
C
Front panel

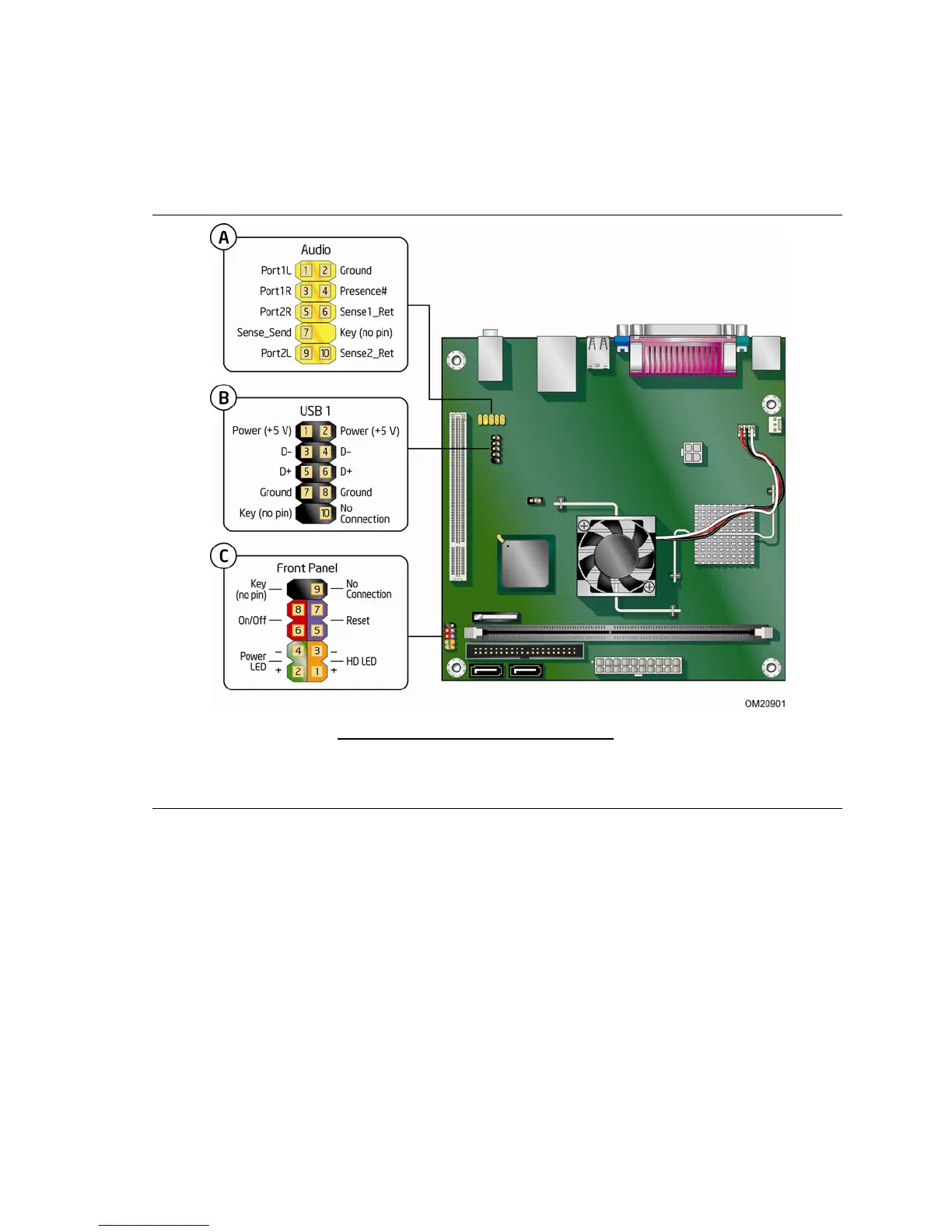

Figure 11. Internal Headers
29
31
