Intel Desktop Board D945GCZ Product Guide
36
Installing DIMMs
To install a DIMM, follow these steps:
1. Observe the precautions in "
Before You Begin" on page 25.
2. Turn off all peripheral devices connected to the computer. Turn off the computer and
disconnect the AC power cord.
3. Remove the computer’s cover and locate the DIMM sockets (see
Figure 16).
OM17638
Channel A DIMM 0
Channel A DIMM 1
Channel B DIMM 0
Channel B DIMM 1
Intel 82945G
(GMCH)
R
82801
(ICH7)
Intel
R

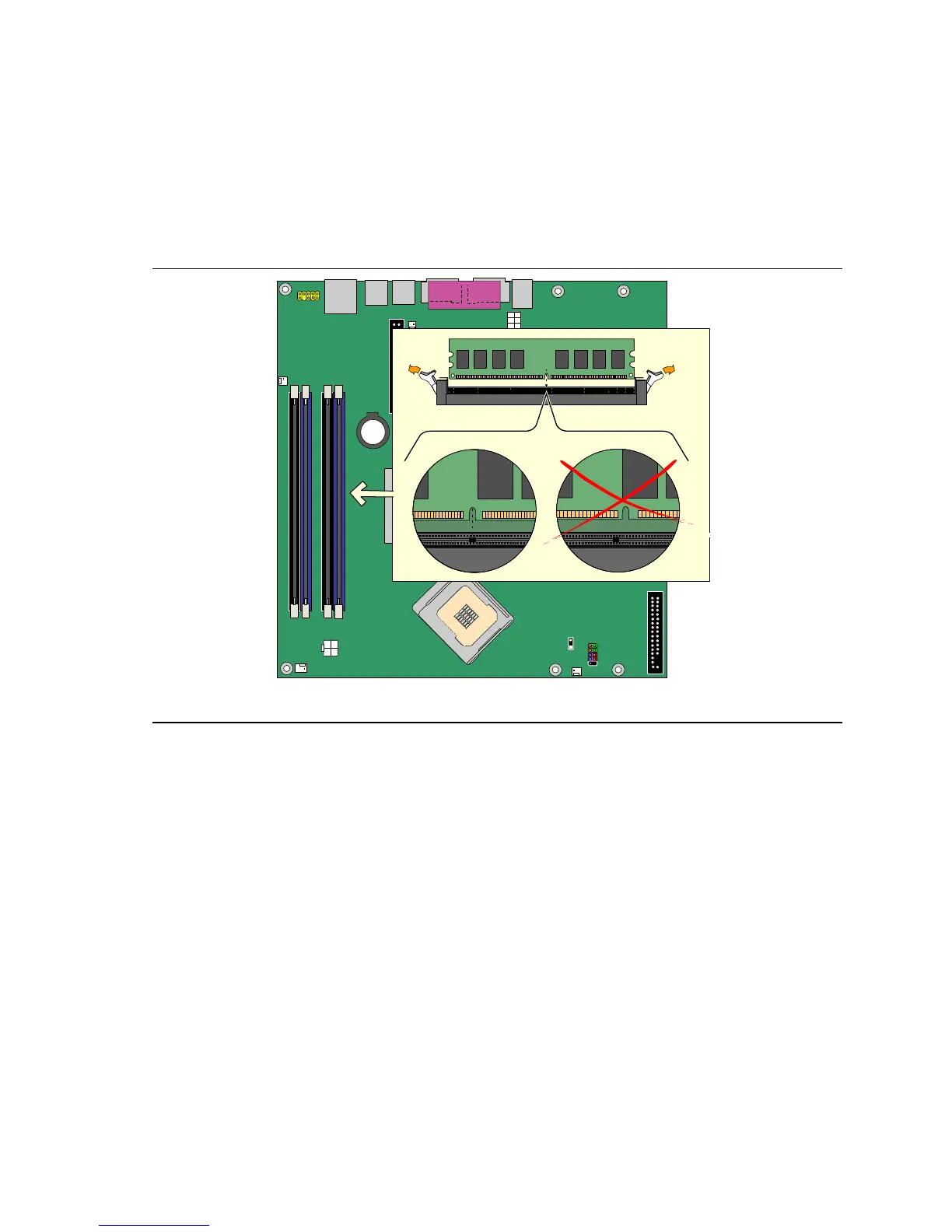

Figure 16. Installing a DIMM
4. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the
open position.
5. Holding the DIMM by the edges, remove it from its anti-static package.
6. Position the DIMM above the socket. Align the small notch at the bottom edge of the DIMM
with the keys in the socket (see inset in
Figure 16).
7. Insert the bottom edge of the DIMM into the socket.
8. When the DIMM is inserted, push down on the top edge of the DIMM until the retaining clips
snap into place. Make sure the clips are firmly in place.
9. Replace the computer’s cover and reconnect the AC power cord.
