Intel Desktop Board D945GCZ Product Guide
46
Connecting Power Cables
CAUTION
Failure to use the appropriate power supply and/or not connecting the 12 V (2x2) power connector
to the desktop board may result in damage to the board or the system may not function properly.
See
Table 4 on page 14 for power supply requirements. Figure 23 shows the location of the power
connectors.
OM17643
2

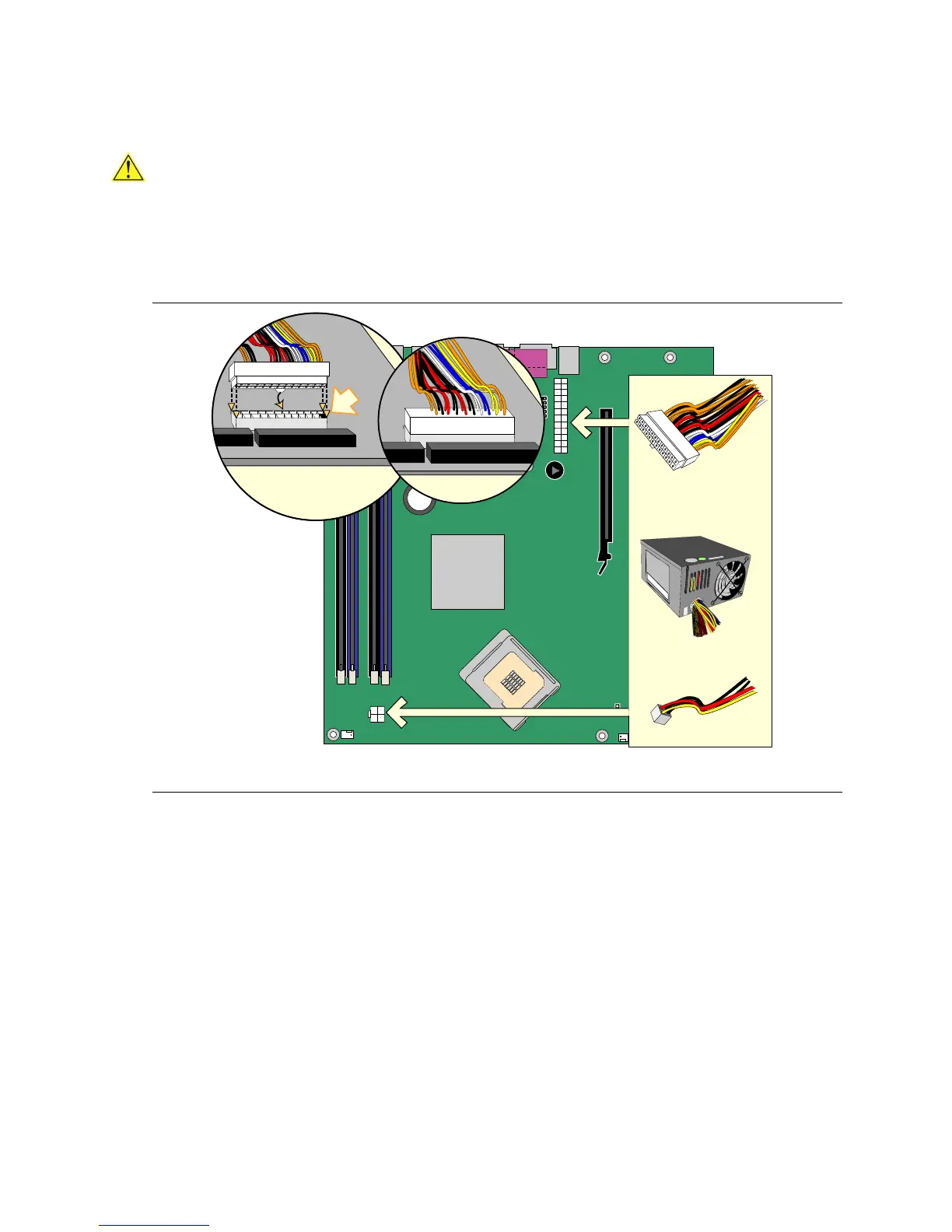

Figure 23. Connecting Power Supply Cables
1. Observe the precautions in "Before You Begin" on page 25.
2. Connect the main power supply cable to the 2x12 connector.
3. Connect the 12 V processor core voltage power supply cable to the 2x2 connector.
