Installing and Replacing Desktop Board Components
47
Setting Up the Flexible 6-Channel Audio with Jack
Re-tasking (Optional)
NOTE
This section applies only to D945GNT/D945GTP desktop boards with the triple-stack audio
connector.
After installing the SigmaTel audio driver from the Intel Express Installer driver CD-ROM, the
multi-channel audio feature can be enabled.
OM15694
A
B
C
Item Description
A Rear left/right out or Line In
B Front left/right out
C Center/LFE (Subwoofer) or Mic In

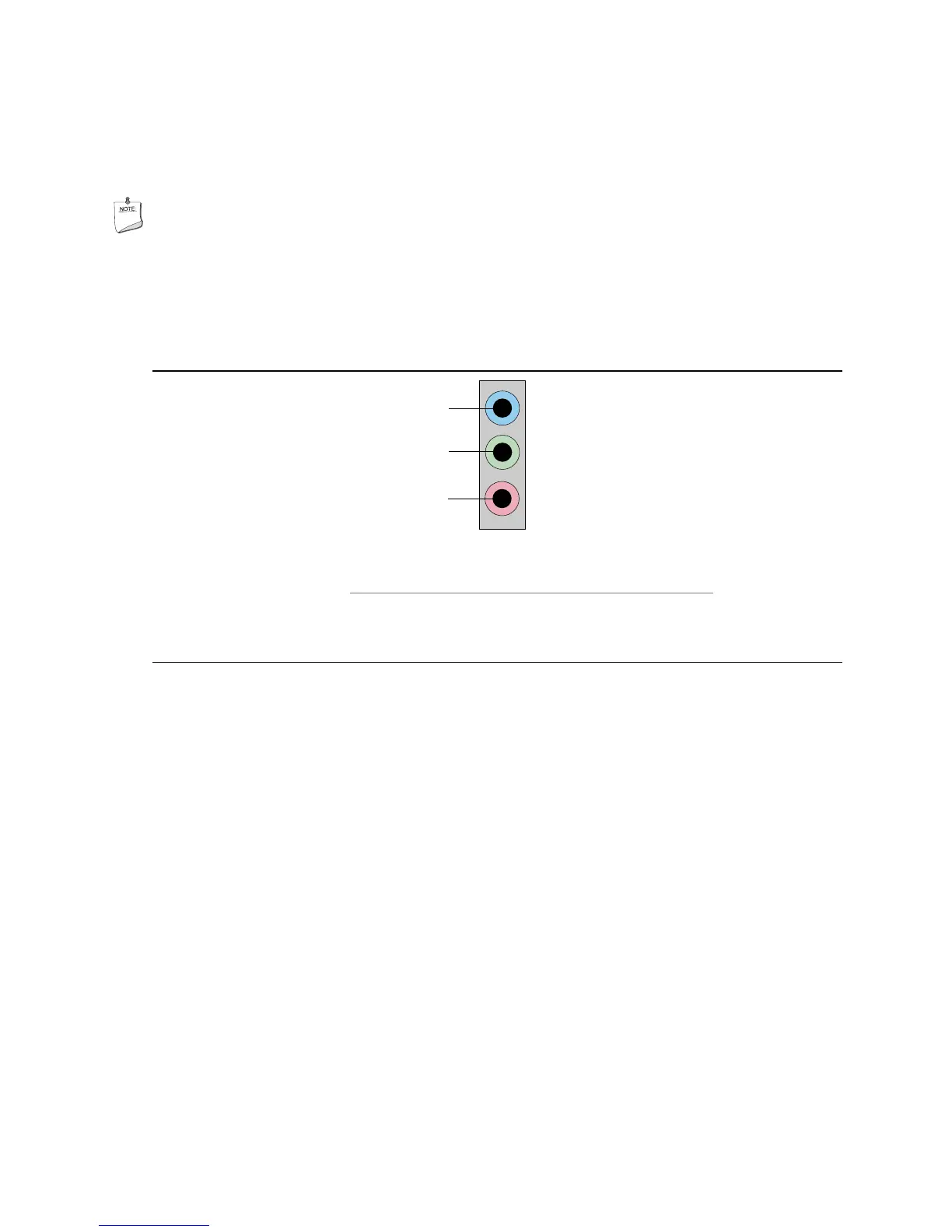

Figure 22. Back Panel Audio Connectors for Flexible 6-Channel Audio System
Multi-Channel Analog Audio
Connect two speakers to the front left/right out (B) and two speakers to the rear left/right out (A)
for both 4- and 6-channel audio configurations. For 6-channel audio, connect two additional
speakers to the center LFE out (C).
