Product Description
39
1.17.2.10 +5 V Standby Power LED
The green +5 V standby power indicator LED shows that power is still present even
when the computer appears to be off. Figure 7 shows the location of the Standby
Power indicator LED on the board.
CAUTION
If AC power has been switched off and the standby power indicators are still lit,
disconnect the power cord before installing or removing any devices connected to the
board. Failure to do so could damage the board and any attached devices.

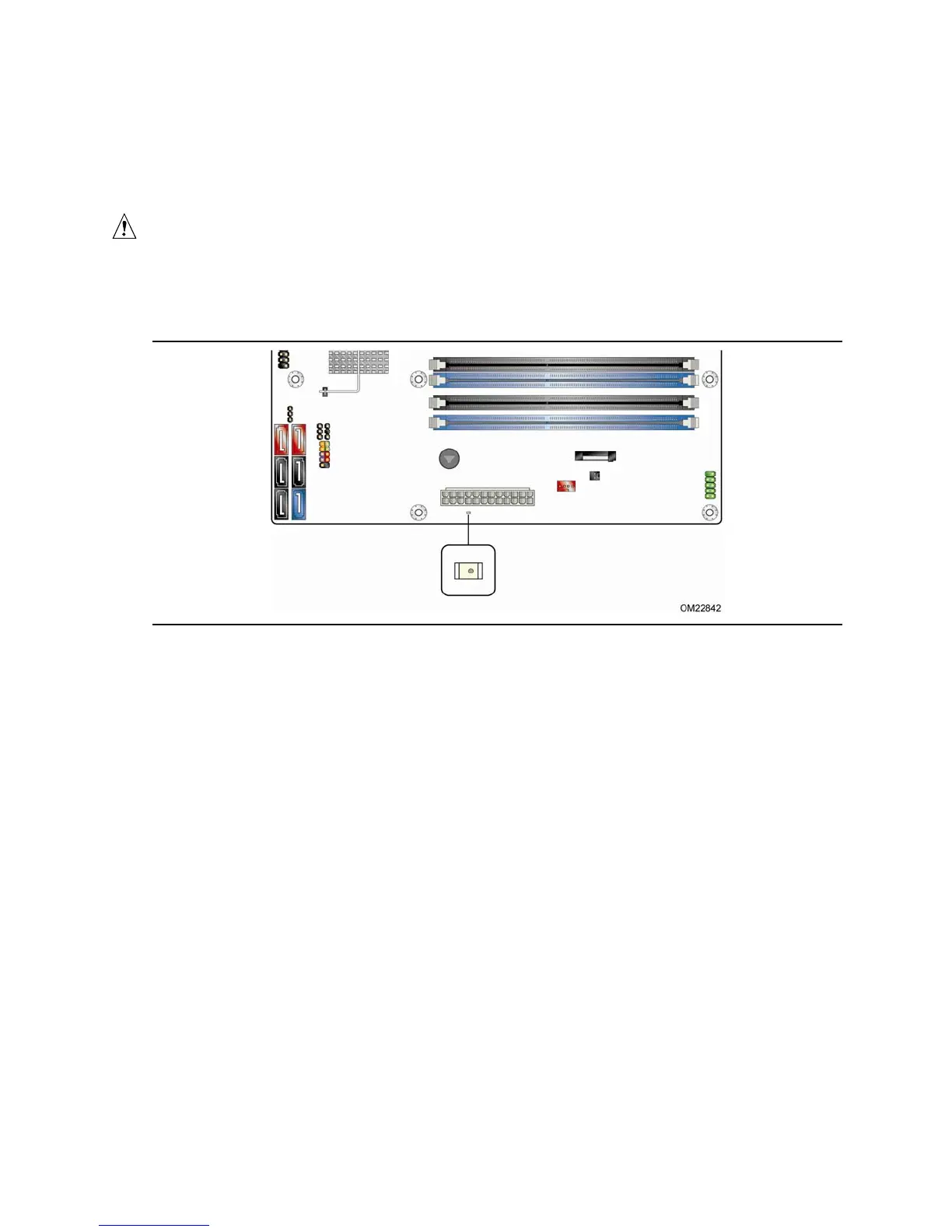

Figure 7. Location of the Standby Power LED (Green)
