Intel Desktop Board DB65AL Technical Product Specification
54
2.3 BIOS Configuration Jumper Block
CAUTION
Do not move the jumper with the power on. Always turn off the power and unplug the
power cord from the computer before changing a jumper setting. Otherwise, the
board could be damaged.
Figure 13 shows the location of the jumper block. The 3-pin jumper block determines
the BIOS Setup program’s mode. Table 26 describes the jumper settings for the three
modes: normal, configure, and recovery.

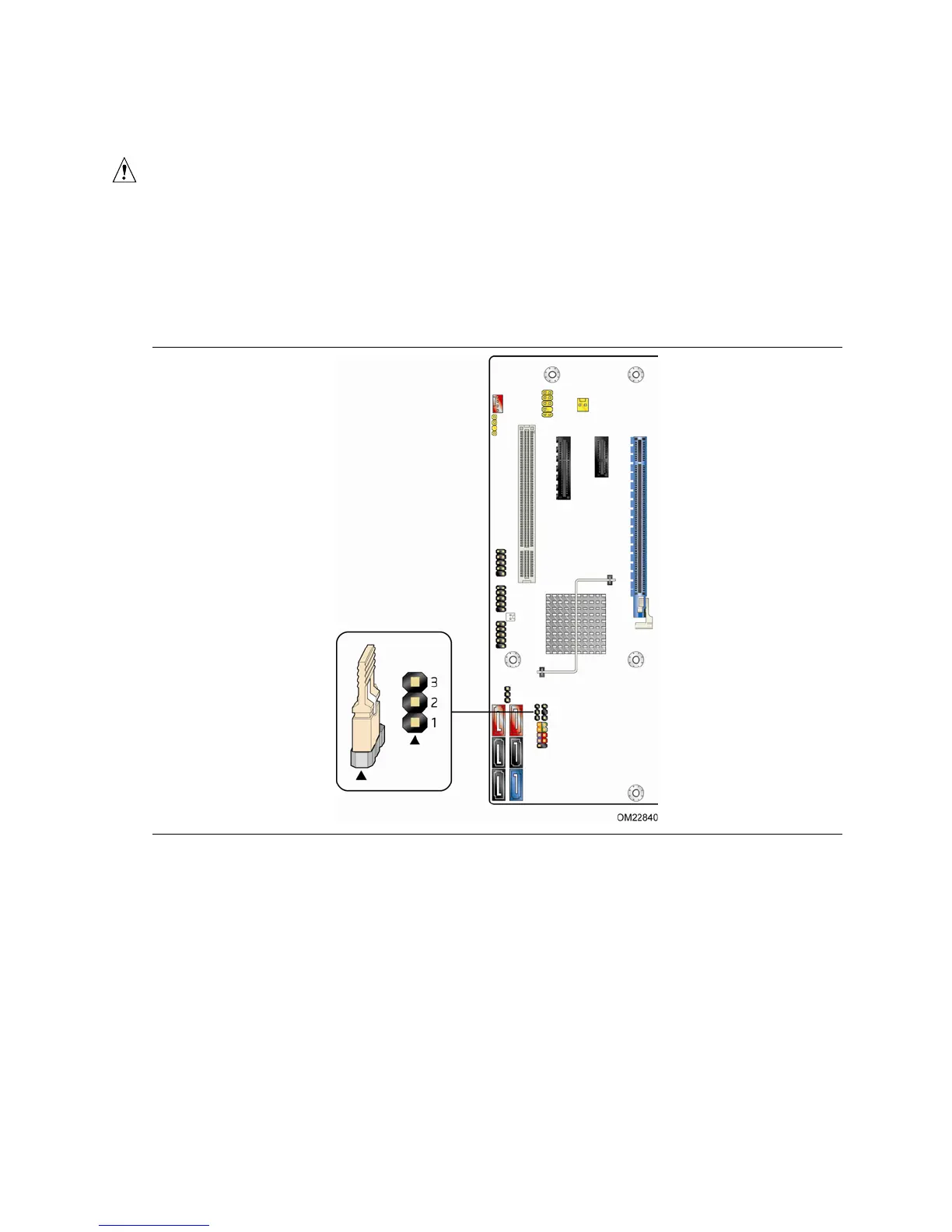

Figure 13. Location of the Jumper Block

Intel DB65AL Specifications

General

Socket Type	LGA 1155
Maximum RAM	16 GB
Supported RAM Types	DDR3
Memory Slots	2
Memory Standard	DDR3 1333/1066
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	Realtek ALC662
LAN	Realtek RTL8111E Gigabit Ethernet
Graphics Output	VGA, DVI-D, HDMI
Power Connector	24-pin ATX
Expansion Slots	1 x PCI Express x16, 1 x PCI Express x1, 2 x PCI
