Intel Desktop Board DB65AL Technical Product Specification
44
2.2.1 Back Panel Connectors

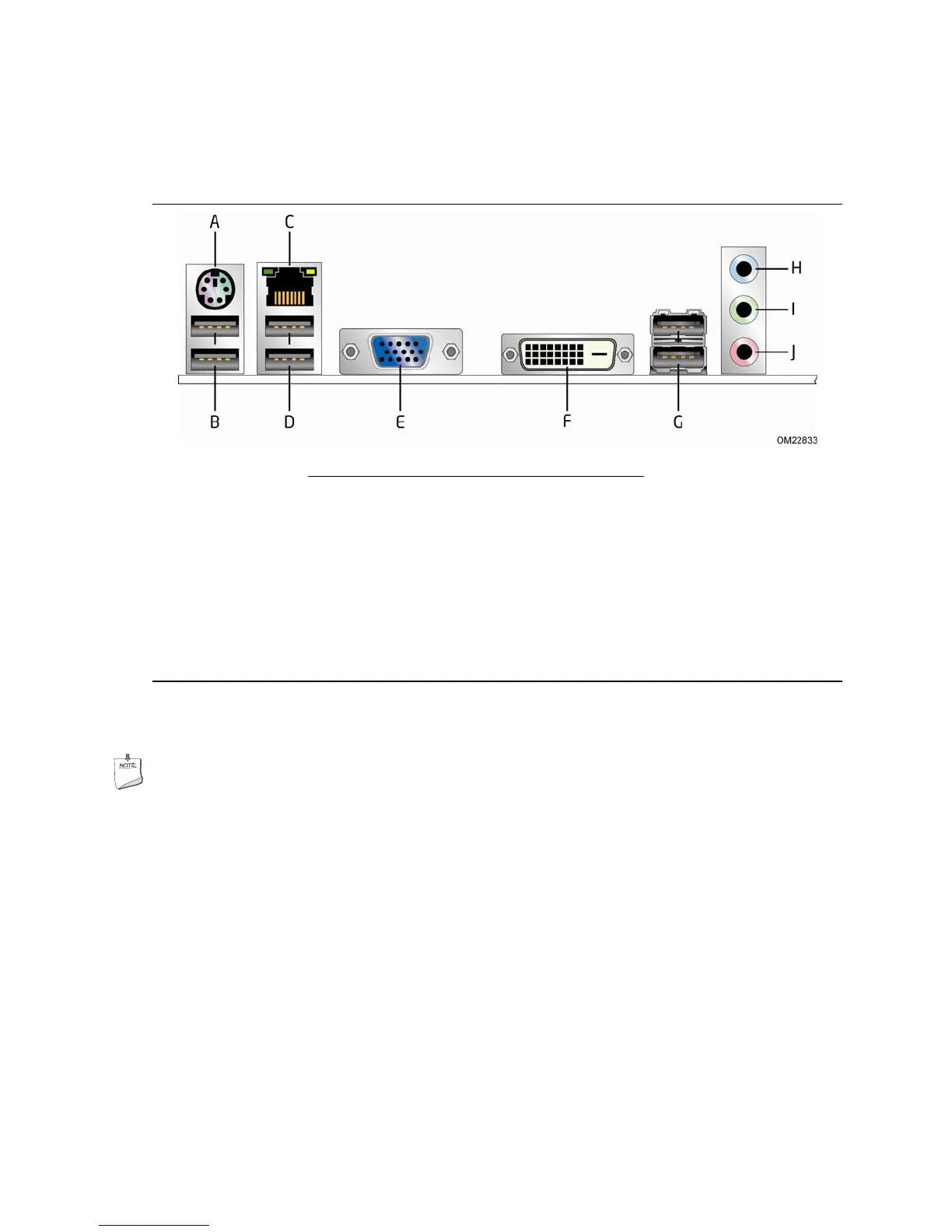

Figure 9 shows the location of the back panel connectors for the board.
Item Description
A PS/2 keyboard/mouse connector
B USB 2.0 ports
C LAN
D USB 2.0 ports
E VGA connector
F DVI-D connector
G USB 2.0 ports
H Audio line in
I Audio line out
J Mic in
Figure 9. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
