1.14.3 Chassis Intrusion and Detection
The board supports a chassis security feature that detects if the chassis cover is
removed. The security feature uses a mechanical switch on the chassis that attaches
to the chassis intrusion header. When the chassis cover is removed, the mechanical
switch is in the closed position.
For information about Refer to
The location of the chassis intrusion header Figure 10, page 39
1.14.4 Thermal Monitoring
Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Rear chassis fan header
B Thermal diode, located on processor die
C Processor fan header
D Front chassis fan header

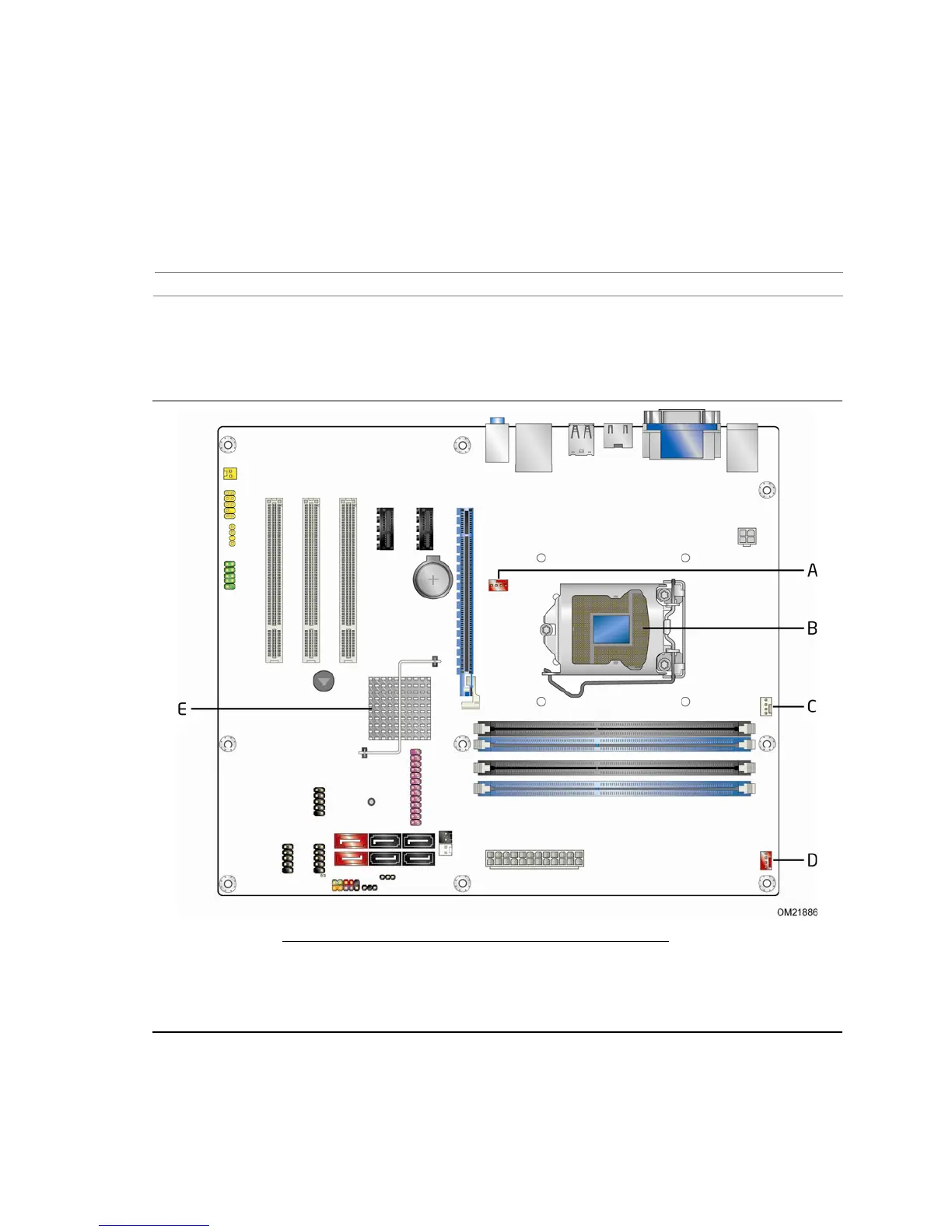

Figure 6. Thermal Sensors and Fan Headers

Intel DH55HC Specifications

General

Form Factor	MicroATX
Socket	LGA 1156
Memory Type	DDR3
Memory Slots	4
Max Memory	16 GB
PCI Express x16	1
PCIe 2.0 x1 Slots	2
PCI Slots	1
VGA	1
DVI-D	1
HDMI	1
Audio Codec	Realtek ALC888S
Chipset	Intel H55 Express
Memory Standard	DDR3 1333/1066
SATA Ports	6
USB Ports	12 x USB 2.0
Audio	Realtek ALC888S
LAN	Intel 82578DC Gigabit Ethernet Controller
