Intel DH55HC User Manual

Technical Reference
55
Item Description
A Processor voltage regulator area
B Processor
C Intel H55 Express Chipset

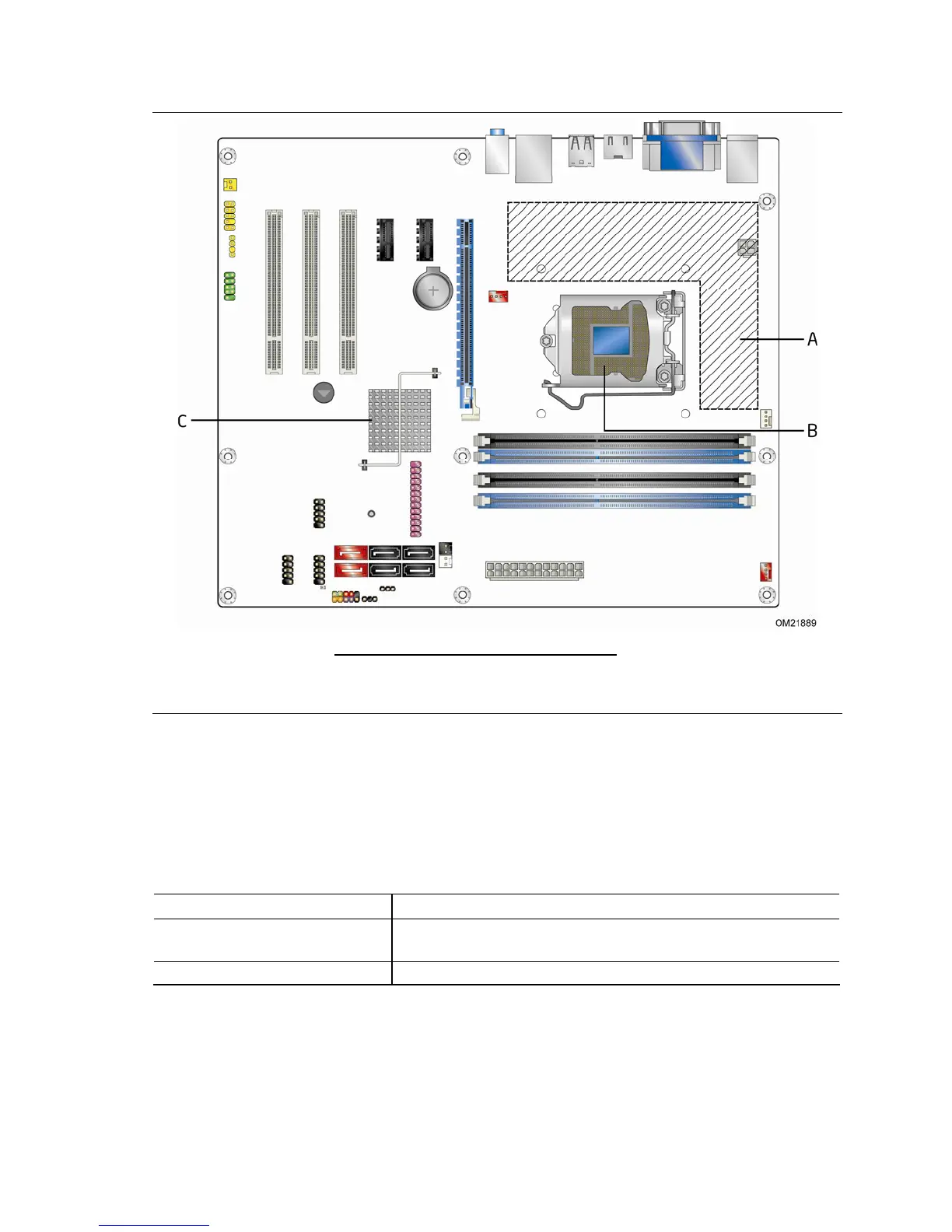

Figure 16. Localized High Temperature Zones
Table 31 provides maximum case temperatures for the components that are sensitive
to thermal changes. The operating temperature, current load, or operating frequency
could affect case temperatures. Maximum case temperatures are important when
considering proper airflow to cool the board.
Table 31. Thermal Considerations for Components
Component Maximum Case Temperature
Processor For processor case temperature, see processor datasheets and
processor specification updates
Intel H55 Express Chipset 111
o
C (under bias)

Intel DH55HC Specifications

General

Form Factor	MicroATX
Socket	LGA 1156
Memory Type	DDR3
Memory Slots	4
Max Memory	16 GB
PCI Express x16	1
PCIe 2.0 x1 Slots	2
PCI Slots	1
VGA	1
DVI-D	1
HDMI	1
Audio Codec	Realtek ALC888S
Chipset	Intel H55 Express
Memory Standard	DDR3 1333/1066
SATA Ports	6
USB Ports	12 x USB 2.0
Audio	Realtek ALC888S
LAN	Intel 82578DC Gigabit Ethernet Controller
