英特尔台式机主板 DH57JG 产品指南
连接到内置接头连接器
在将电缆连接到任何内置接头连接器上之前，请首先阅读并遵守第 27 页“开始之前”中的

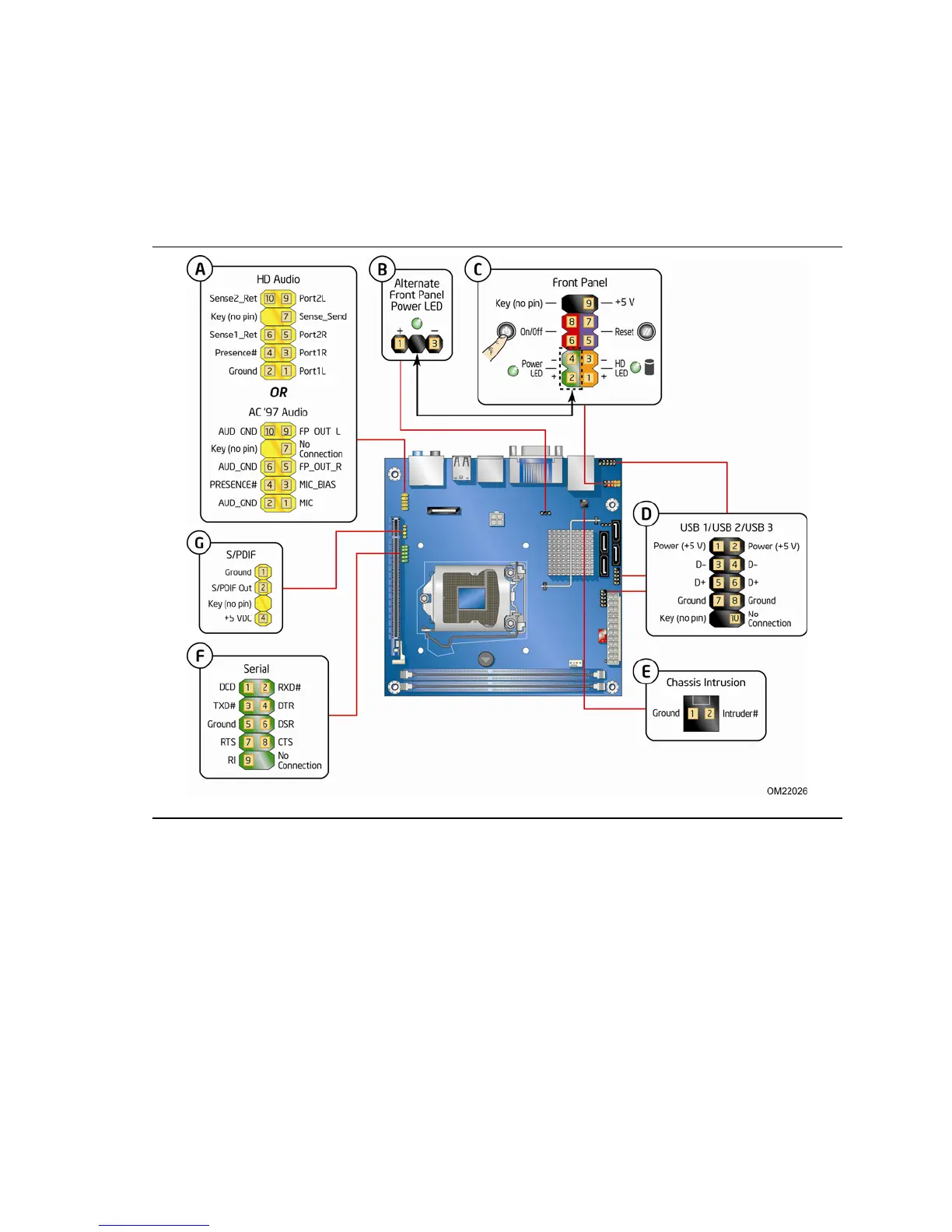

注意事项。图 20 显示了英特尔台式机主板 DH57JG 各内置接头连接器和连接器的位置。
图 20. 内置接头连接器
44
