Intel Desktop Board DH67GD and Intel Desktop Board DH67BL Technical Product
Specification
28
The back panel audio connectors are configurable through the audio device drivers.

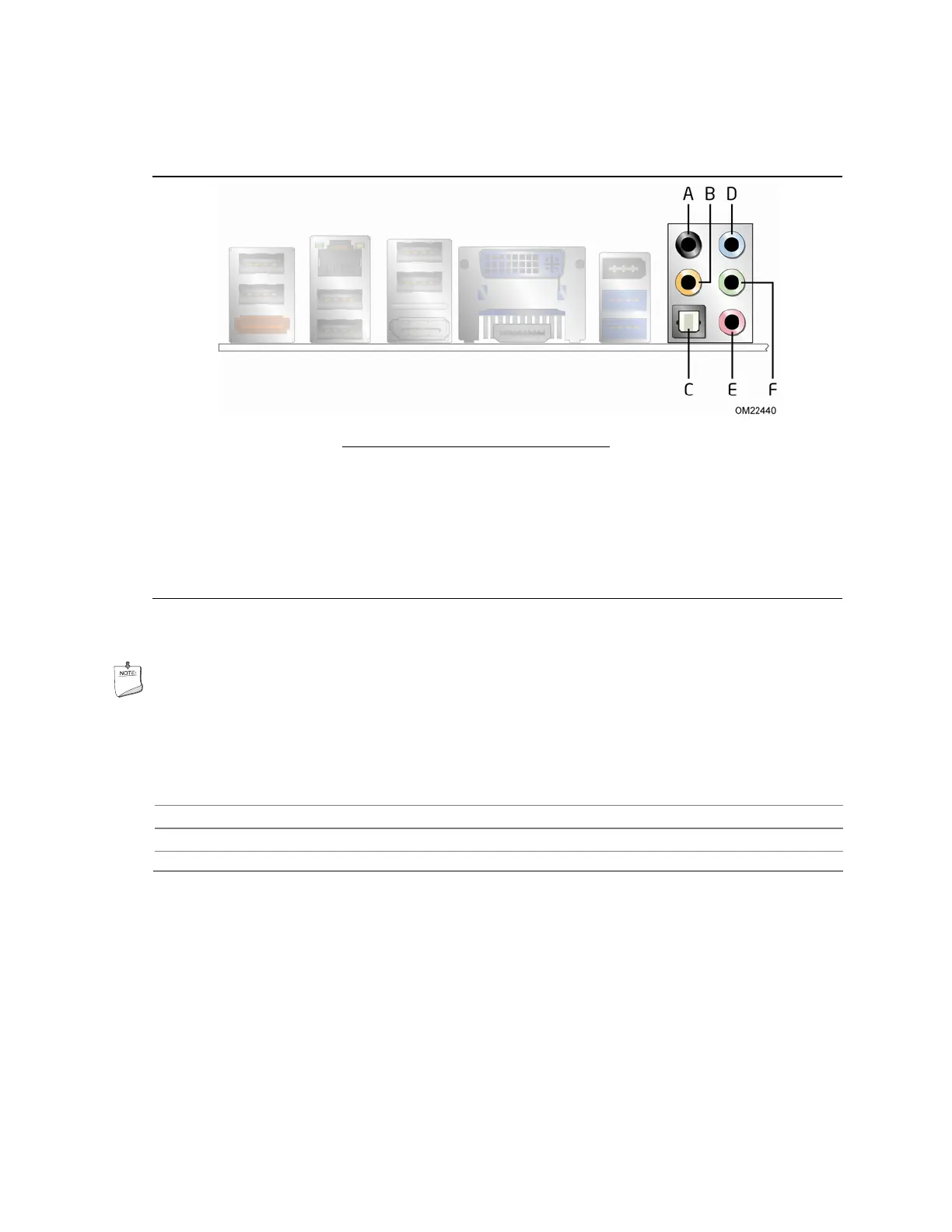

The available configurable back panel audio connectors are shown in Figure 4.
Item Description
A Rear surround
B Center channel and LFE
(subwoofer)
C S/PDIF out (optical)
D Line in
E Mic in/side surround
F Line out/front speakers
Figure 4. Back Panel Audio Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
For information about Refer to
The locations of the front panel audio header and S/PDIF audio header Figure 10, page 45
The signal names of the front panel audio header and S/PDIF audio header Section 2.2.2.1, page 47
The back panel audio connectors Section 2.2.1, page 44
