Intel Desktop Board DH67GD and Intel Desktop Board DH67BL Technical Product
Specification
56
2.4 Mechanical Considerations
2.4.1 Form Factor
The board is designed to fit into an ATX-form-factor chassis. Figure 14 illustrates the
mechanical form factor for the board. Dimensions are given in inches [millimeters].
The outer dimensions are 9.60 inches by 9.60 inches [243.84 millimeters by
243.84 millimeters]. Location of the I/O connectors and mounting holes are in
compliance with the ATX specification.

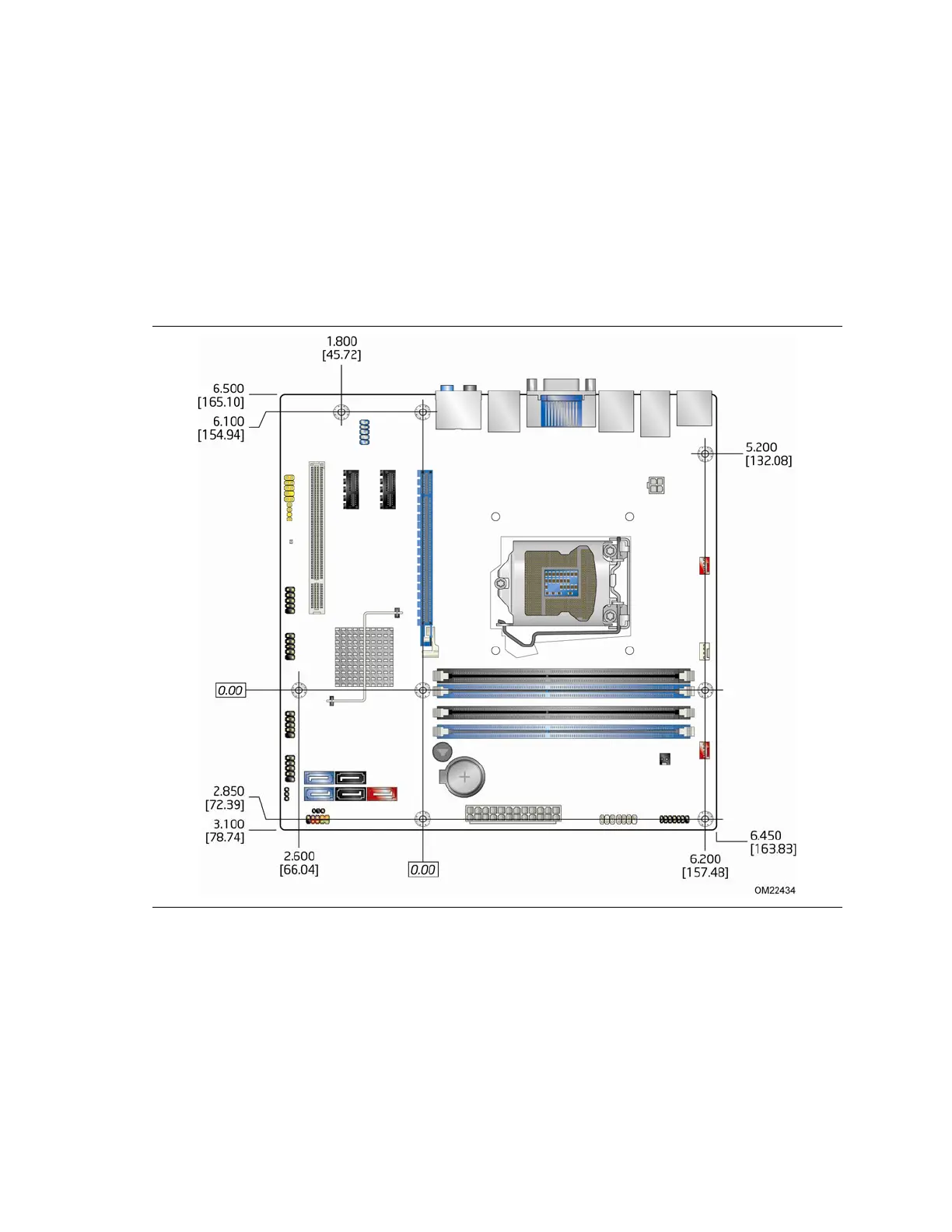

Figure 14. Board Dimensions
