Intel Desktop Board DH67CF Product Guide
30
Installing and Removing the Desktop Board
CAUTION
Only qualified technical personnel should perform this procedure. Disconnect the
computer from its power source before performing the procedures described here.
Failure to disconnect the power before you open the computer can result in personal
injury or equipment damage.
Refer to your chassis manual for instructions on installing and removing the Desktop
Board.
Figure 5 shows the location of the mounting s
crew holes for Intel Desktop Board
DH67CF.

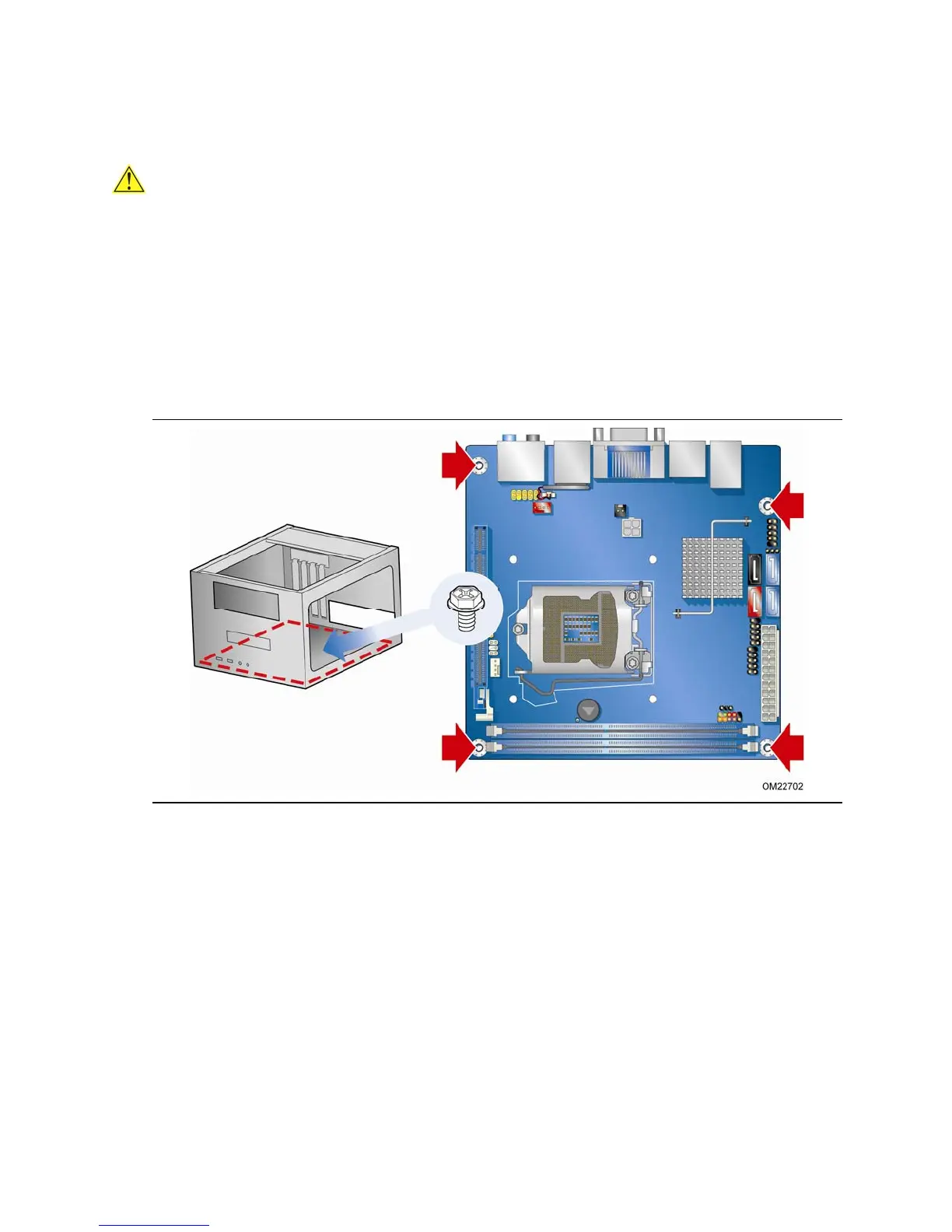

Figure 5. Intel Desktop Board DH67CF Mounting Screw Hole Locations
