Product Description
15
1.1.3 Block Diagram

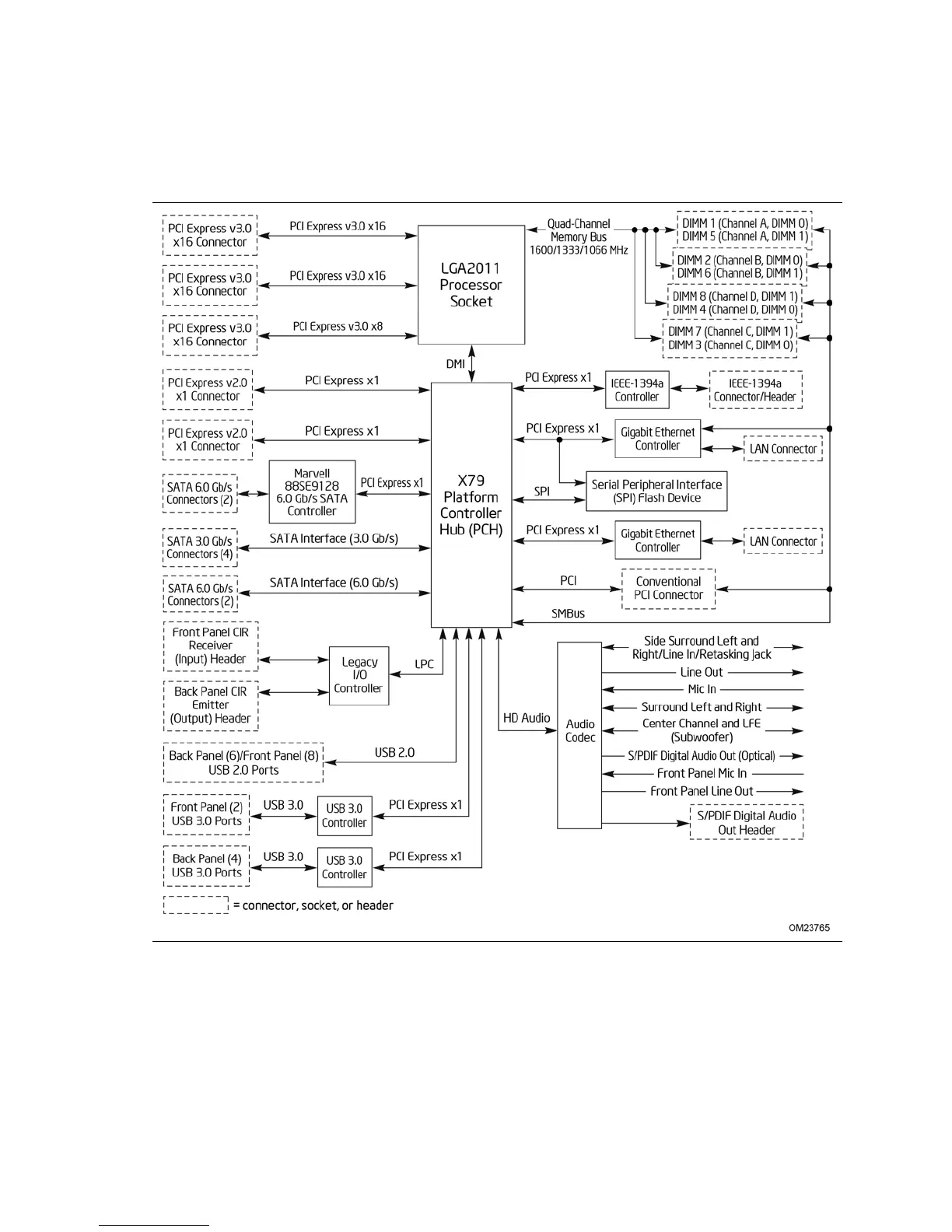

Figure 2 is a block diagram of the major functional areas of the board.
Figure 2. Block Diagram
