Intel Desktop Board DZ75ML-45K Technical Product Specification
28
1.8.2 Audio Connectors and Headers
The board contains audio connectors and headers on both the back panel and the
component side of the board. The component-side audio headers include front panel
audio (a 2 x 5-pin header that provides mic in and line out signals for front panel audio
connectors). The available configurable back panel audio connectors are shown in
Figure 4.
Item
Description
A Line in/surround
B Line out/front speakers
C
Mic in/center/sub

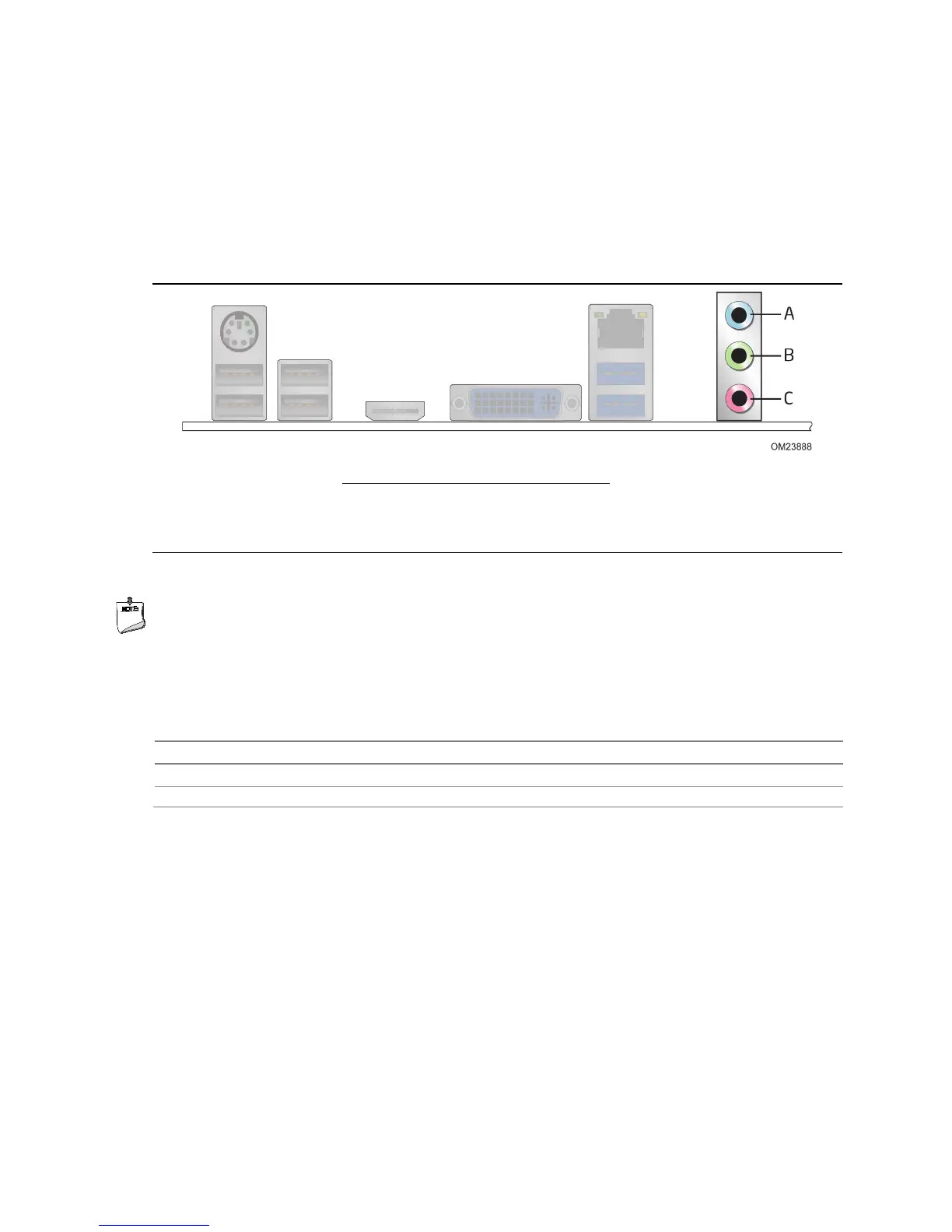

Figure 4. Back Panel Audio Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
For information about Refer to
The locations of the front panel audio header and S/PDIF audio header Figure 10, page 45
The signal names of the front panel audio header and S/PDIF audio header Section 2.2.2.1, page 47
The back panel audio connectors
Section 2.2.1, page 44
