Intel Desktop Board DZ75ML-45K Technical Product Specification
56
2.4 Mechanical Considerations
2.4.1 Form Factor
The board is designed to fit into a microATX-form-factor chassis. Figure 14 illustrates
the mechanical form factor for the board. Dimensions are given in inches
[millimeters]. The outer dimensions are 9.60 inches by 9.60 inches
[243.84 millimeters by 243.84 millimeters]. Location of the I/O connectors and
mounting holes are in compliance with the ATX specification.

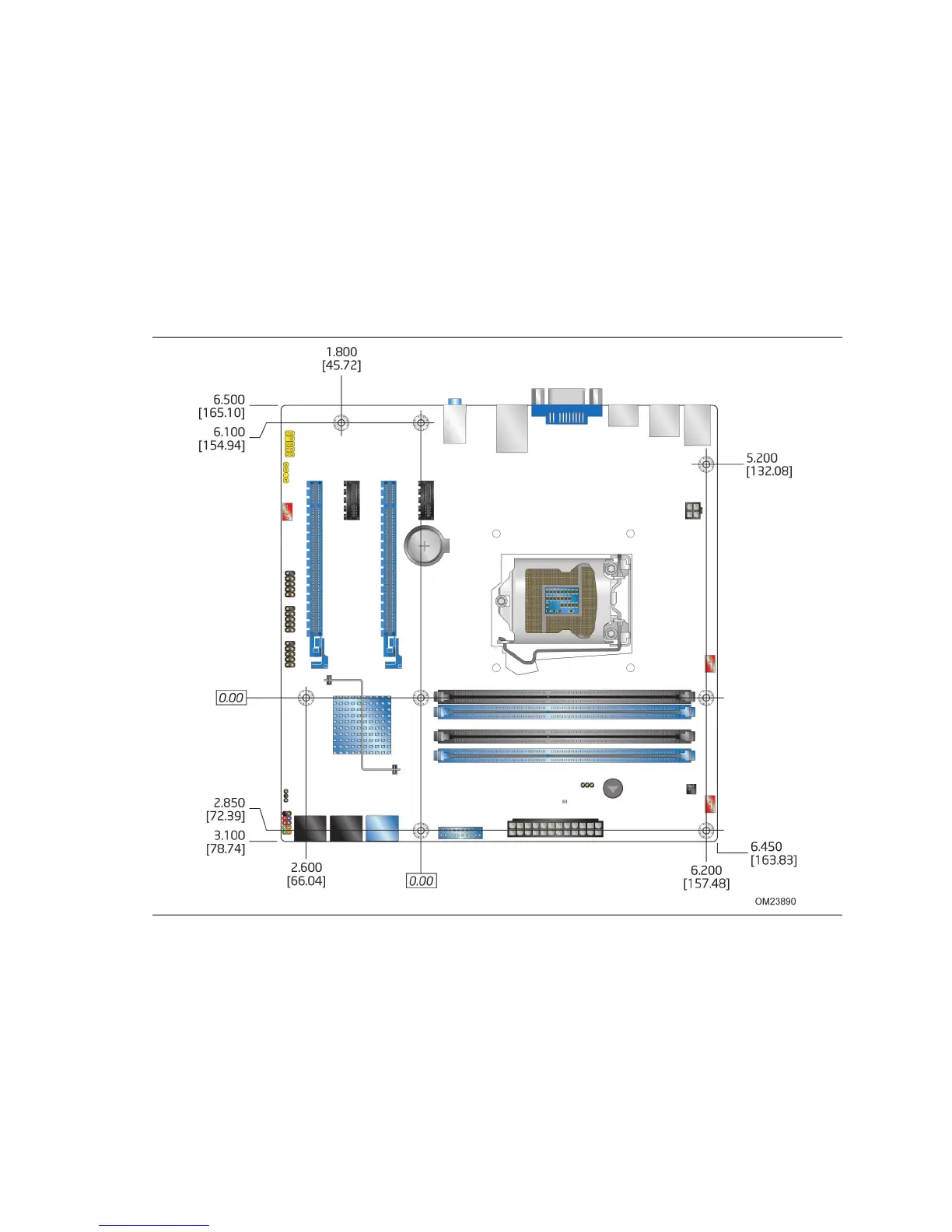

Figure 14. Board Dimensions
