Intel DZ77RE-75K

Product Description
13
1.1.2 Board Layout

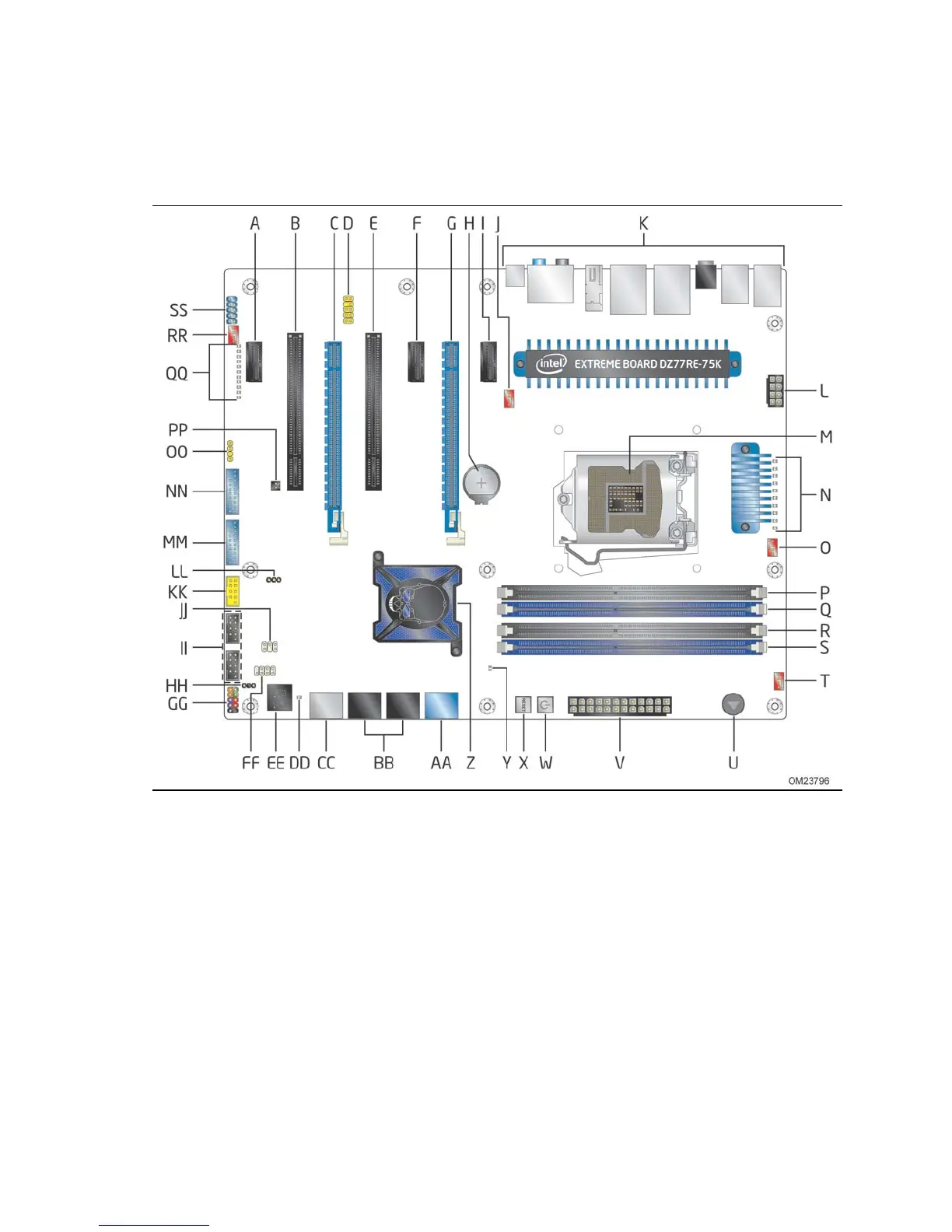

Figure 1 shows the location of the major components on Intel Desktop Board
DZ77RE-75K.
Figure 1. Major Board Components
Table 2 lists the components identified in Figure 1.
