User Guide for NUC7CJYH, NUC7PJYH
5

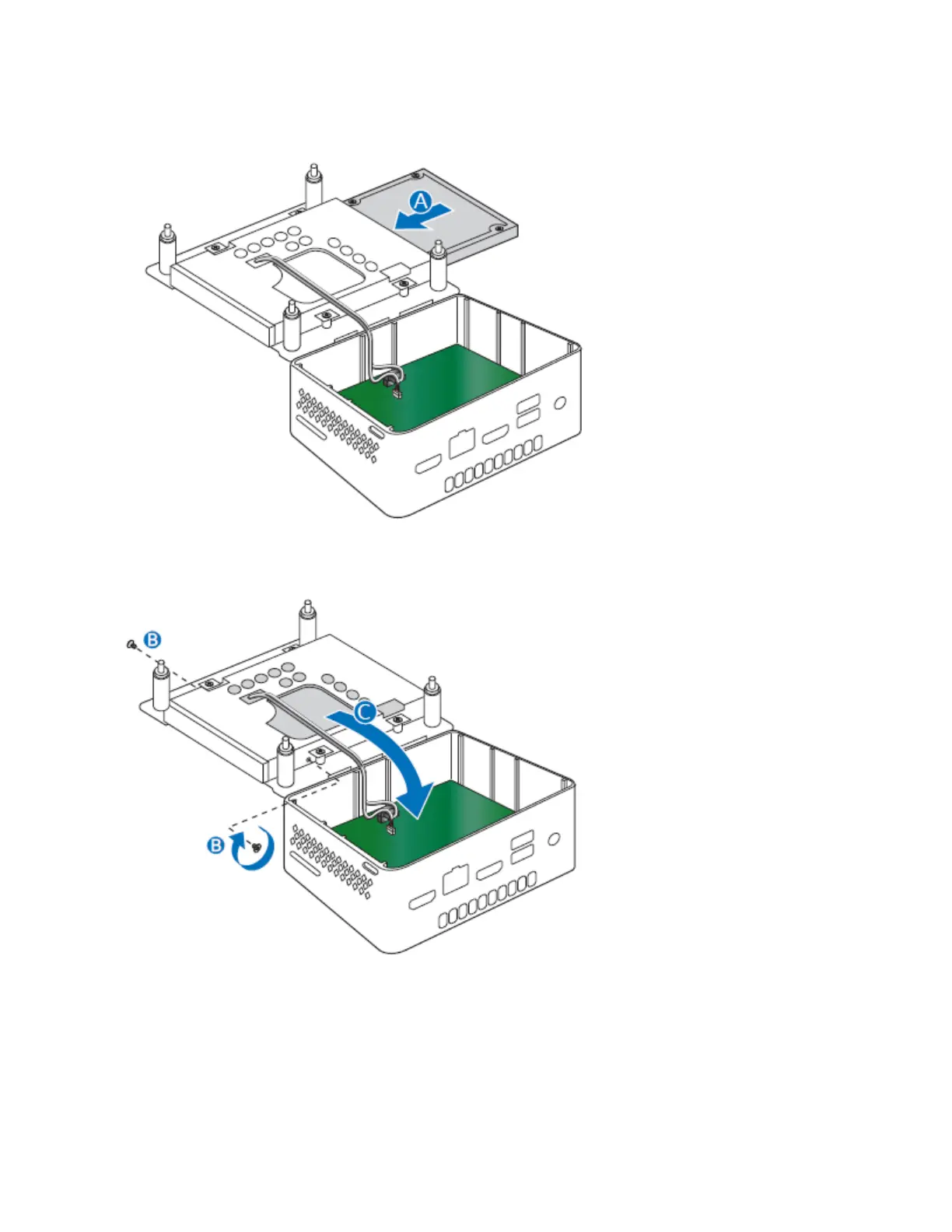

1. Slide the new 2.5” drive into the drive bay, ensuring the SATA connectors are fully seated into the
connectors of the SATA daughter card (A).
2. Secure the drive into the drive bay with the two small silver screws that were included in the box (B).
Set the drive bay bracket down inside the chassis (C).
