Intel NUC 7 User Manual

User Guide for NUC7CJYH, NUC7PJYH
6

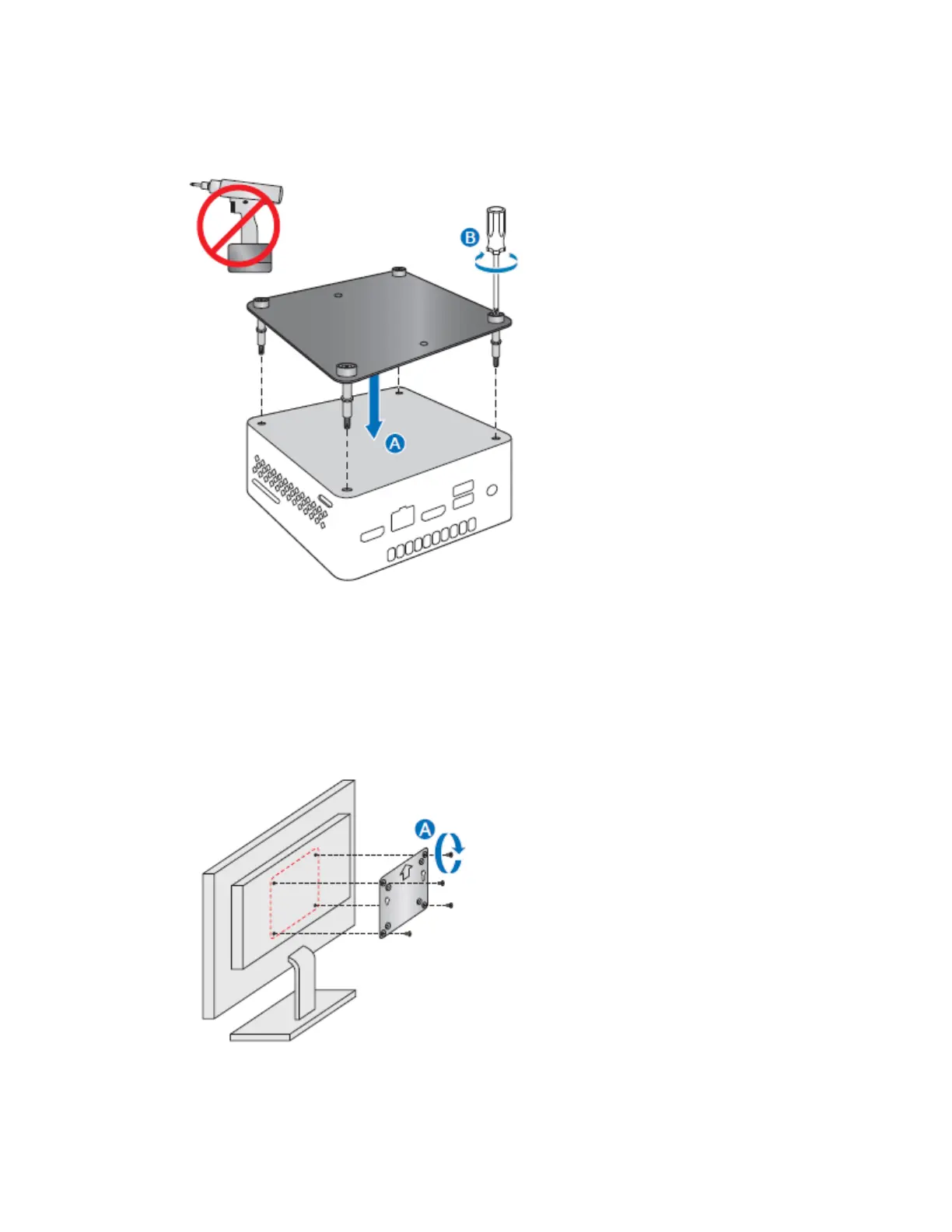

Close the Chassis
After all components have been installed, close the Intel NUC chassis (using an electric or battery
operated screw driver can damage the NUC).
Attach and Use the VESA Bracket (Optional)
Follow these instructions to attach and use the VESA mount bracket:
1. Using the four small black screws that were included in the box, attach the VESA bracket to the
back of the monitor or TV.

Intel NUC 7 Specifications

General

Operating System Support	Windows 10, Linux
Power	19V DC, 65W power adapter
Processor	7th Gen Intel Core i3, i5, or i7
Memory	Up to 32GB DDR4
Storage	M.2 SSD
Networking	Intel Wireless-AC 8265, Bluetooth 4.2
Ports	HDMI 2.0a, Mini DisplayPort 1.2
Audio	7.1 digital audio via HDMI
Dimensions	115mm x 111mm
Graphics	Intel HD Graphics 620 (i3, i5) or Intel Iris Plus Graphics 640 (i7)
