Intel NUC 8 Mainstream-G NUC8i7INH - Use the VESA Bracket (Optional)

12
NUC8i7INHX, NUC8i7INHP, NUC8i7INHZ, NUC8i5INHX, NUC8i7INHP
User Guide – April 2019
7.0 Use the VESA Bracket (Optional)

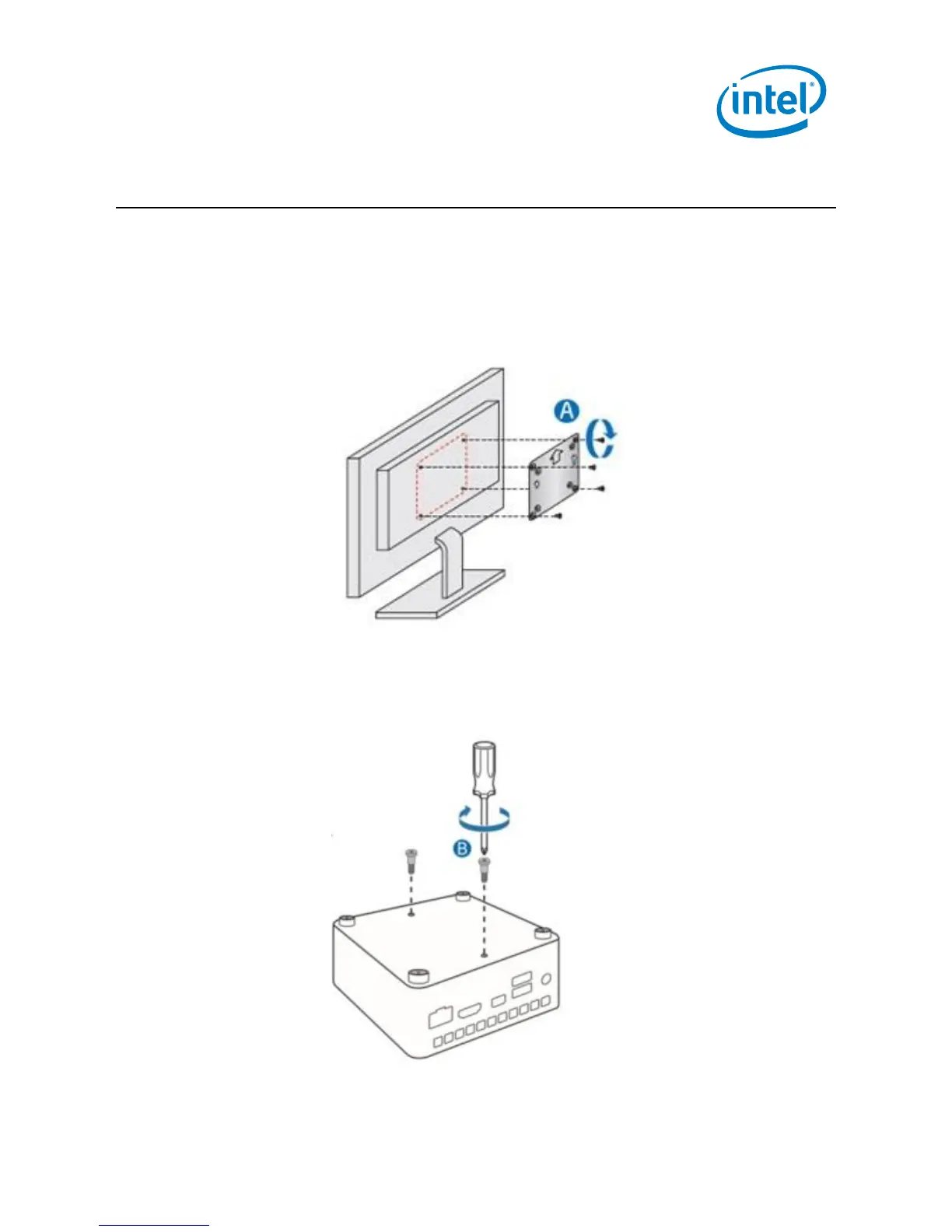

Follow these instructions to attach and use the VESA mount bracket:
1. Using the four small black screws that were included in the box, attach the
VESA bracket to the back of the monitor or TV.
2. Attach the two slightly larger black screws to the bottom chassis cover of the
Intel NUC.
