Intel NUC6CAYH User Manual

Intel NUC Kit NUC6CAYH User Guide
9

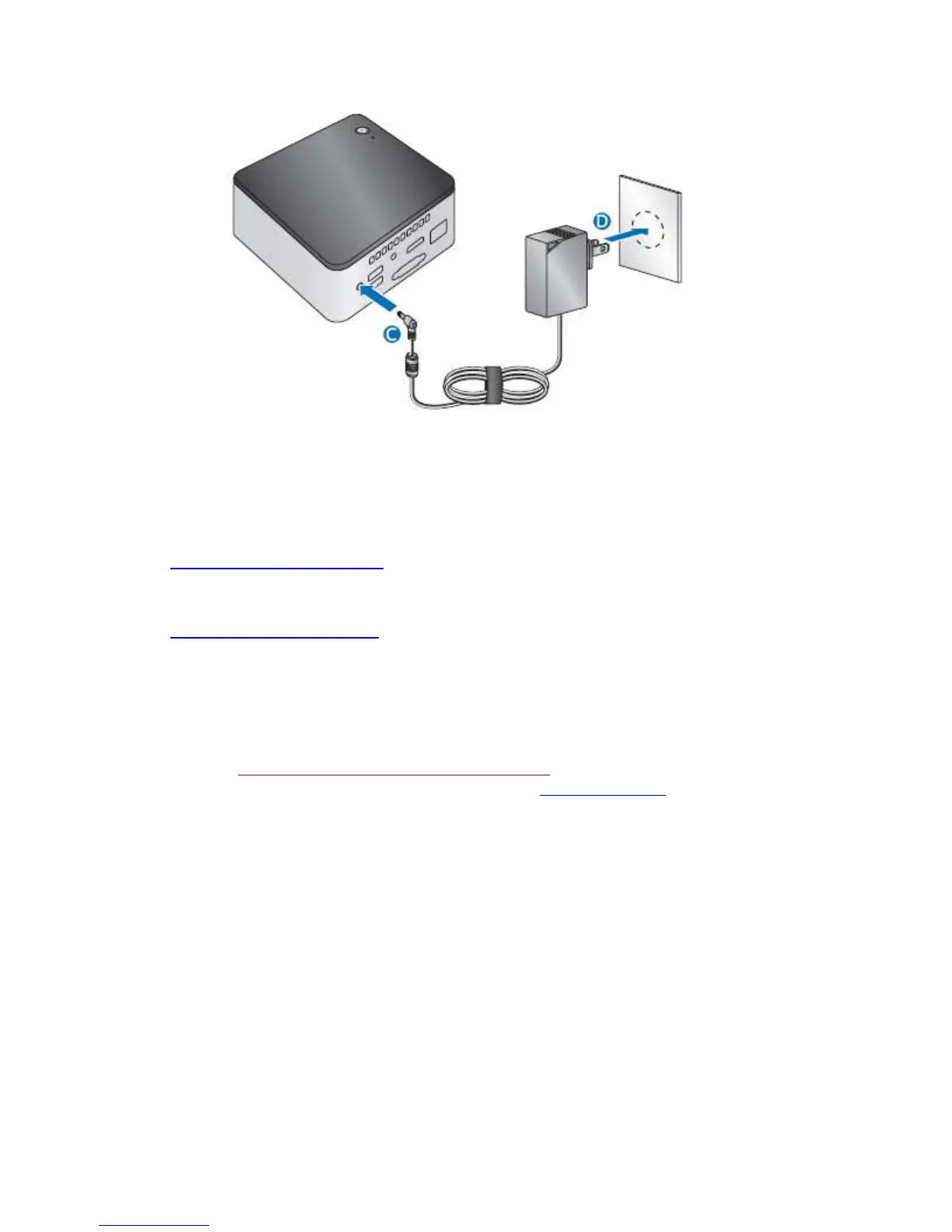

3. Connect AC power.
Install an Operating System
Refer to Supported Operating Systems for a list of Intel-validated Windows* operating systems, as well
as versions of Linux that have been reported as compatible by Intel NUC owners.
Refer to Operating System Installation for system requirements and installation steps.
Install the Latest Device Drivers and Software
Here are the options for keeping device drivers current:
 Allow the Intel® Driver & Support Assistant (Intel® DSA) to detect out-of-date drivers
 Manually download drivers, BIOS, and software from Download Center.
The following device drivers and software are available.
 Intel® Chipset Device Software
 Intel® HD Graphics
 Intel® Trusted Execution Technology
 Intel® Serial I/O
 Intel® Wireless
 Intel® Bluetooth
 Realtek* High Definition Audio
 Realtek* Card Reader
 Realtek* Gigabit Ethernet
 ITE Tech* Consumer Infrared
 HDMI Firmware

Intel NUC6CAYH Specifications

General

Processor	Intel Celeron J3455
Processor Cores	4
Processor Base Frequency	1.5 GHz
Processor Max Turbo Frequency	2.3 GHz
Graphics	Intel HD Graphics 500
Graphics Base Frequency	250 MHz
Graphics Max Dynamic Frequency	750 MHz
Memory Slots	2
Max Memory Size	8 GB
Networking	Gigabit Ethernet
Bluetooth	Bluetooth 4.2
HDMI Ports	1
Card Reader	SDXC with UHS-I support
Operating System Support	Windows 10, Linux
Memory Type	DDR3L-1600
Storage	2.5" SATA HDD/SSD
Wireless	802.11ac
USB Ports	4 x USB 3.0, 2 x USB 2.0
Video Output	HDMI, VGA
Audio	3.5mm
Dimensions	115 x 111 x 51 mm
Power Supply	65W
