Intel NUC6CAYH User Manual

Intel NUC Kit NUC6CAYH User Guide
6

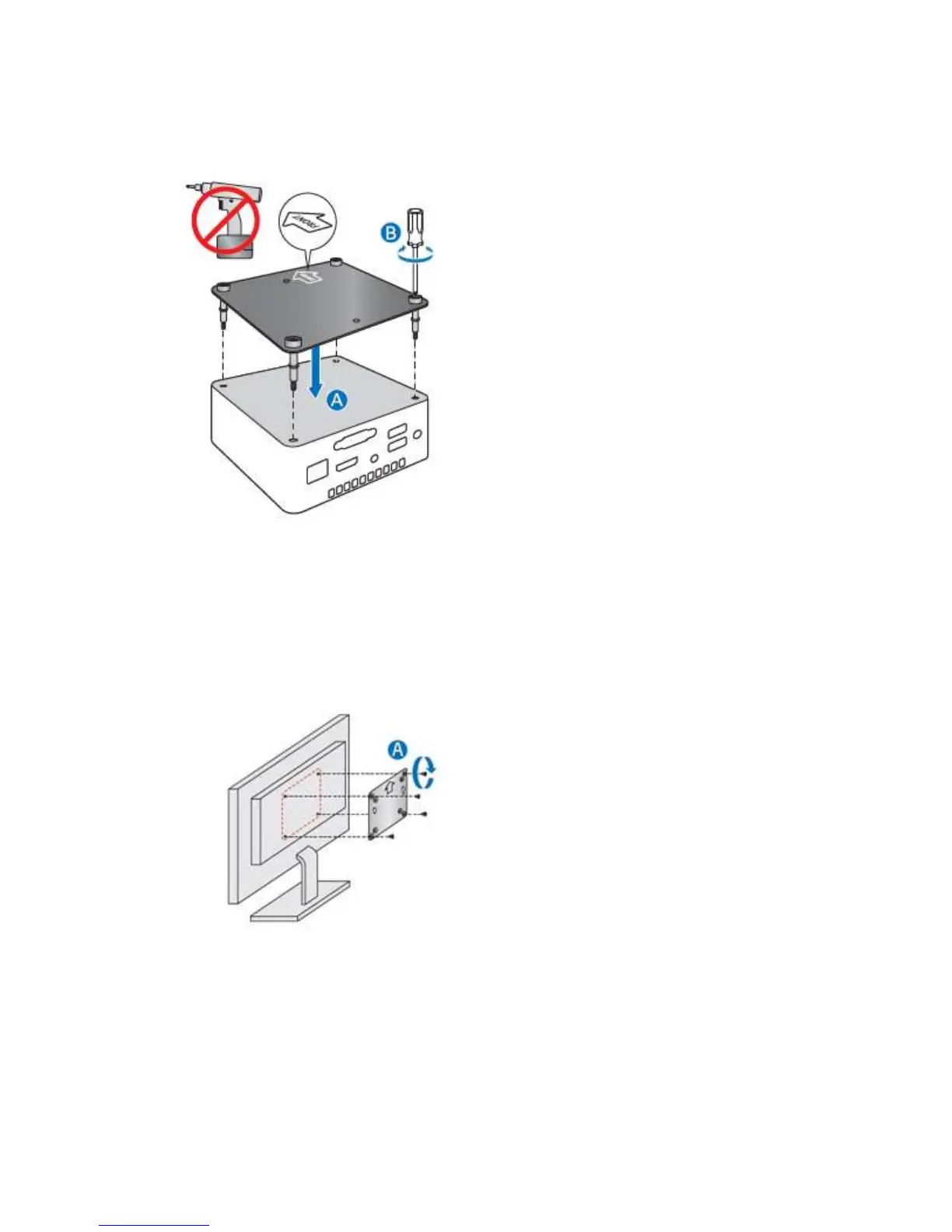

Close the Chassis
After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by
hand with a screwdriver to avoid over-tightening and possibly damaging the screws.
Attach and Use the VESA Bracket (Optional)
Follow these instructions to attach and use the VESA mount bracket:
1. Attach the VESA bracket to the back of the monitor or TV, using the four small black screws that
were included in the box.

Intel NUC6CAYH Specifications

General

Processor	Intel Celeron J3455
Processor Cores	4
Processor Base Frequency	1.5 GHz
Processor Max Turbo Frequency	2.3 GHz
Graphics	Intel HD Graphics 500
Graphics Base Frequency	250 MHz
Graphics Max Dynamic Frequency	750 MHz
Memory Slots	2
Max Memory Size	8 GB
Networking	Gigabit Ethernet
Bluetooth	Bluetooth 4.2
HDMI Ports	1
Card Reader	SDXC with UHS-I support
Operating System Support	Windows 10, Linux
Memory Type	DDR3L-1600
Storage	2.5" SATA HDD/SSD
Wireless	802.11ac
USB Ports	4 x USB 3.0, 2 x USB 2.0
Video Output	HDMI, VGA
Audio	3.5mm
Dimensions	115 x 111 x 51 mm
Power Supply	65W
