• 1866 MHz or 2133 MHz SO-DIMMs
• Non-ECC
For a list of tested memory, go to the System Memory page on the Support site.
Install SO-DIMMs
If you plan to install just one SO-DIMM, install it in the lower memory socket.
To install the SO-DIMMs, follow these steps:
1. Observe the precautions in "Before You Begin" on page 2.
2. Turn off all peripheral devices connected to the computer. Turn off the computer and
disconnect the AC power cord.

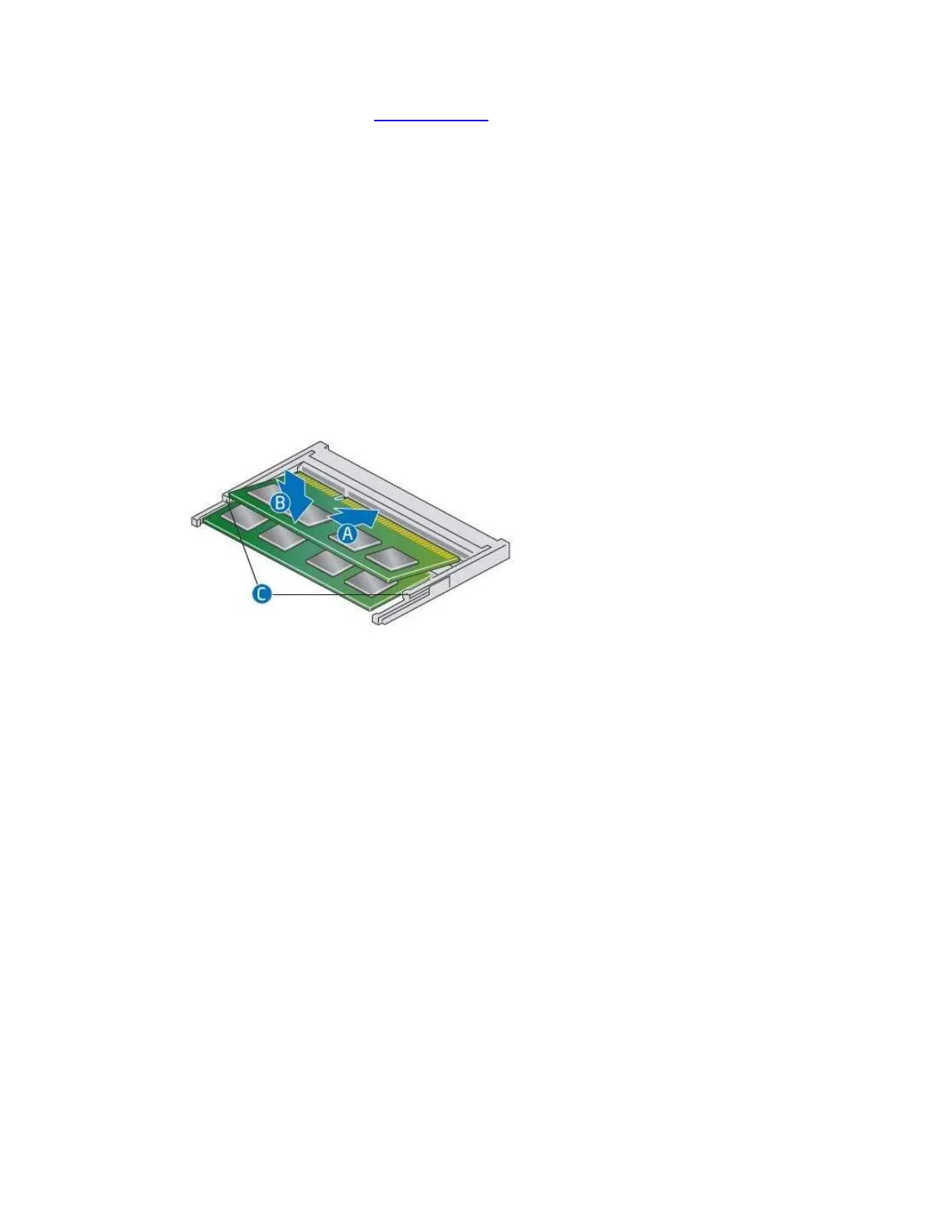

3. Align the small notch at the bottom edge of the SO-DIMM with the key in the socket.
4. Insert the bottom edge of the SO-DIMM into the socket.
5. When the SO-DIMM is inserted, push down on the outer edge of the SO-DIMM until the
retaining clips snap into place. Make sure the clips are firmly in place.
Removing SO-DIMMs
To remove a SO-DIMM, follow these steps:
1. Observe the precautions in "Before You Begin" on page 2.
2. Turn off all peripheral devices connected to the computer. Turn off the computer.
3. Remove the AC power cord from the computer.
4. Remove the computer’s cover.
5. Gently spread the retaining clips at each end of the SO-DIMM socket. The SO-DIMM pops out of
the socket.
6. Hold the SO-DIMM by the edges, lift it away from the socket, and store it in an anti-static package.
7. Reinstall and reconnect any parts you removed or disconnected to reach the SO-DIMM sockets.
8. Replace the computer’s cover and reconnect the AC power cord.
Install a 2.5” SSD or Hard Drive

Intel NUC7i3BNH Specifications

General

Processor	Intel Core i3-7100U
Processor Cores	2
Processor Threads	4
Processor Base Frequency	2.4 GHz
Graphics	Intel HD Graphics 620
Graphics Base Frequency	300 MHz
Graphics Max Dynamic Frequency	1.0 GHz
Max Memory Size	32 GB
Number of Memory Slots	2
Storage Interface	SATA 6.0 Gb/s
SATA Ports	1
Ethernet	10/100/1000 Mbps
Dimensions	115 x 111 x 51 mm
Operating System Support	Windows 10, Linux
Processor Cache	3 MB
Memory Type	DDR4-2133
M.2 Slot	M.2 22x42/80
USB Ports	4 x USB 3.0
HDMI Ports	1
Audio	3.5mm Headphone/Microphone Jack
Power Supply	65W external power adapter
Thunderbolt Ports	1 (USB-C Thunderbolt 3)
