Intel NUC Kit NUC7i5BNK & NUC7i3BNK User Guide
3
This guide tells you how to:
•
Install an M.2 SSD
•
Install and remove memory
•
Install a VESA mount bracket
•
Connect power
•
Install an operating system
•
Install the latest drivers
Open the Intel NUC Chassis
To open the Intel NUC chassis, follow these steps:

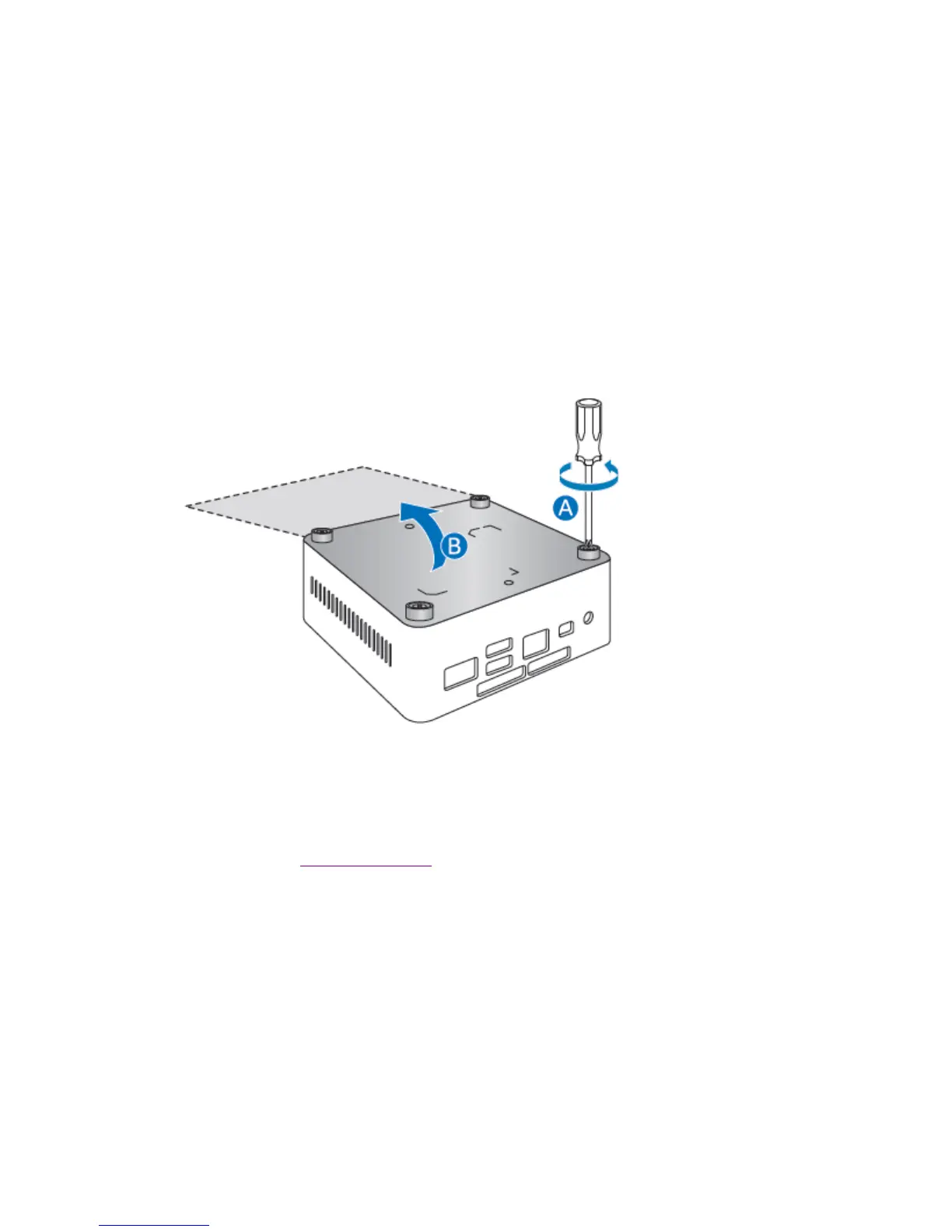

1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.
Install an M.2 SSD
Intel NUC Kits NUC7i3BNK and NUC7i5BNK support 80mm, 60mm, and 42mm M.2 SSDs. For a list of
tested M.2 SSDs, go to the Tested Peripherals page on the Support site.
Observe the precautions in "Before You Begin" on page 2.
If you are installing an 80mm M.2 SSD:
1. Remove the small silver screw from the 80mm metal standoff on the motherboard (A).
2. Remove the standoff from the 42mm position (B).
3. Align the small notch at the bottom edge of the M.2 card with the key in the connector.
To Next Page
