Intel NUC Kit NUC7i5BNK & NUC7i3BNK User Guide
4

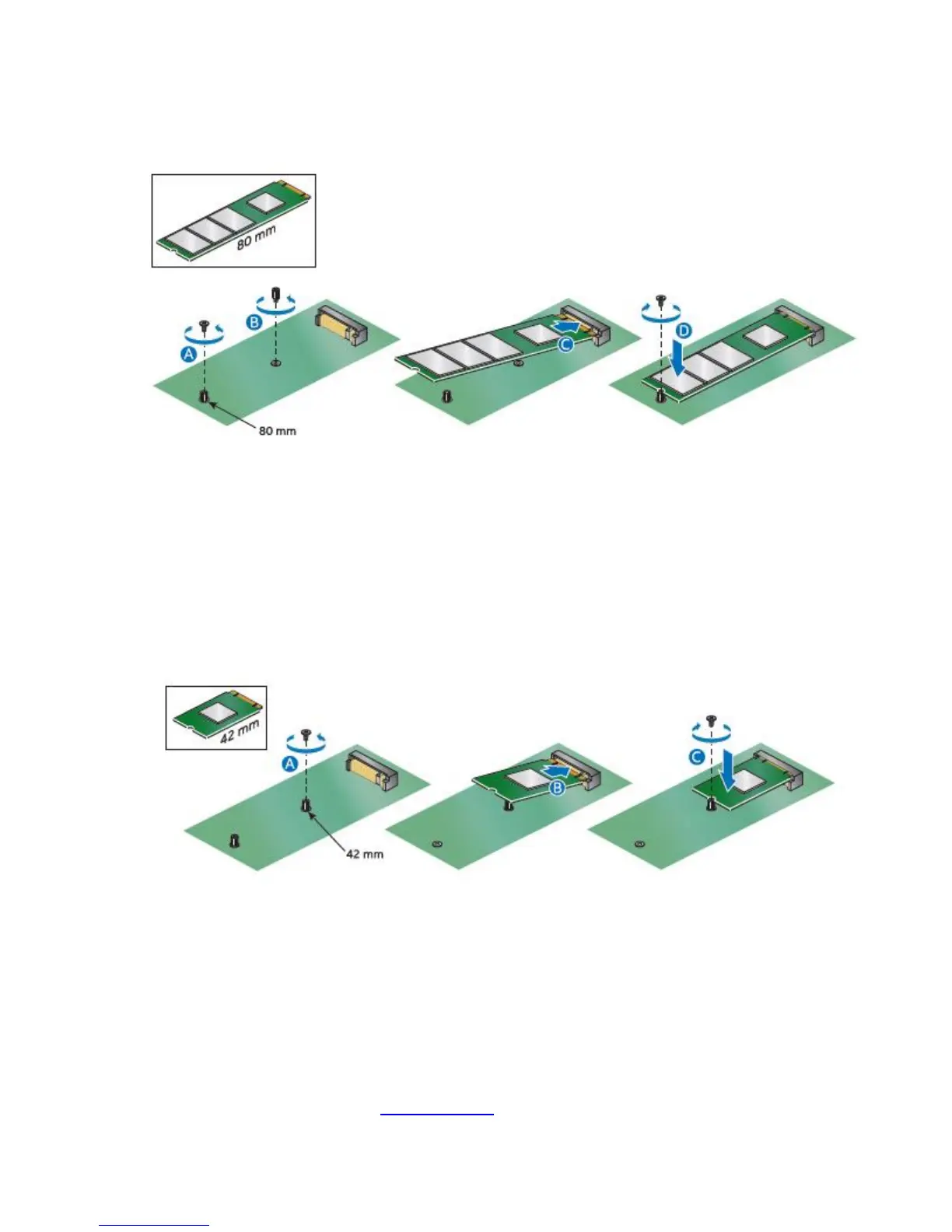

4. Insert the bottom edge of the M.2 card into the connector (C).
5. Secure the card to the standoff with the small silver screw (D).
If you are installing a 42mm M.2 SSD:
1. Remove the small silver screw from the metal standoff on the motherboard (A).
2. Align the small notch at the bottom edge of the M.2 card with the key in the connector.
3. Insert the bottom edge of the M.2 card into the connector (B).
4. Secure the card to the standoff with the small silver screw (C).
Installing and Removing Memory
Intel NUC Kits NUC7i3BNK and NUC7i5BNK have two DDR4 SO-DIMM sockets. Memory requirements:
 1.2V memory
 1866 MHz or 2133 MHz SO-DIMMs
 Non-ECC
For a list of tested memory, go to the System Memory page on the Support site.
