3
PC-3890

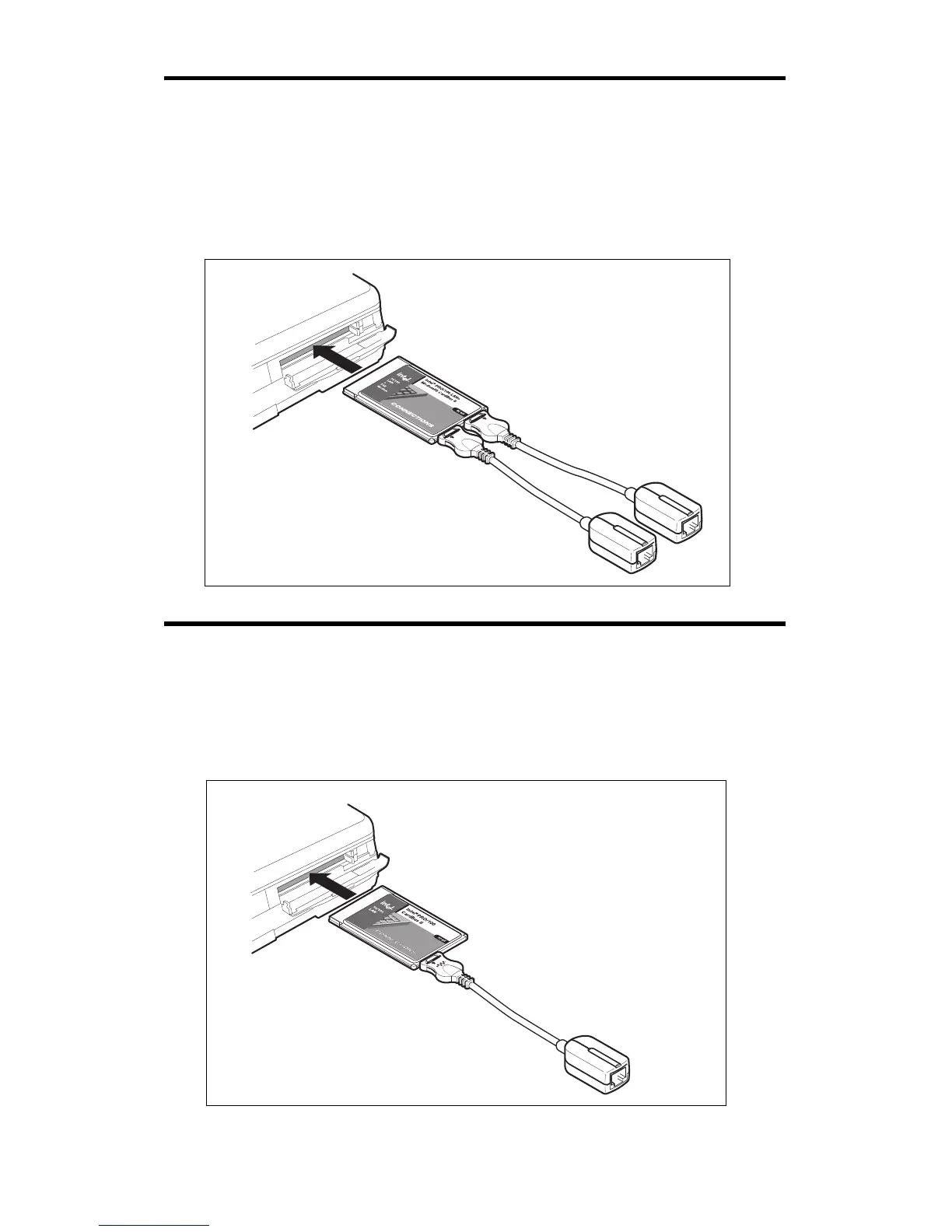

Hardware Installation — Type II Combo
Attach the LAN and modem cables to the adapter as shown in the
diagram. Use the icons on the cables to correctly identify each cable.
Fully insert the adapter into a CardBus slot.* Attach network and
modem lines to the appropriate cables. Take care not to attach the phone
line to the LAN cable.
Hardware Installation — Type II LAN Only
Attach the LAN cable to the adapter as shown in the diagram below.
Fully insert the adapter into a CardBus slot.* Attach your network
twisted pair Ethernet RJ-45 cable to the PRO/100 cable.
LAN CABLE
MODEM CABLE
* Note: if the adapter won't fully insert, the slot may not be CardBus
compatible. Try a different slot or check your owner's manual.
LAN CABLE
