Intel® RAID Controller SASWT4I Hardware User’s Guide 11
3 Intel
®
RAID Controller SASWT4I
Characteristics
This chapter describes the characteristics of the Intel
®
RAID Controller SASWT4I.
Figure 4 displays the connectors and headers on the controller and Table 1 describes them.

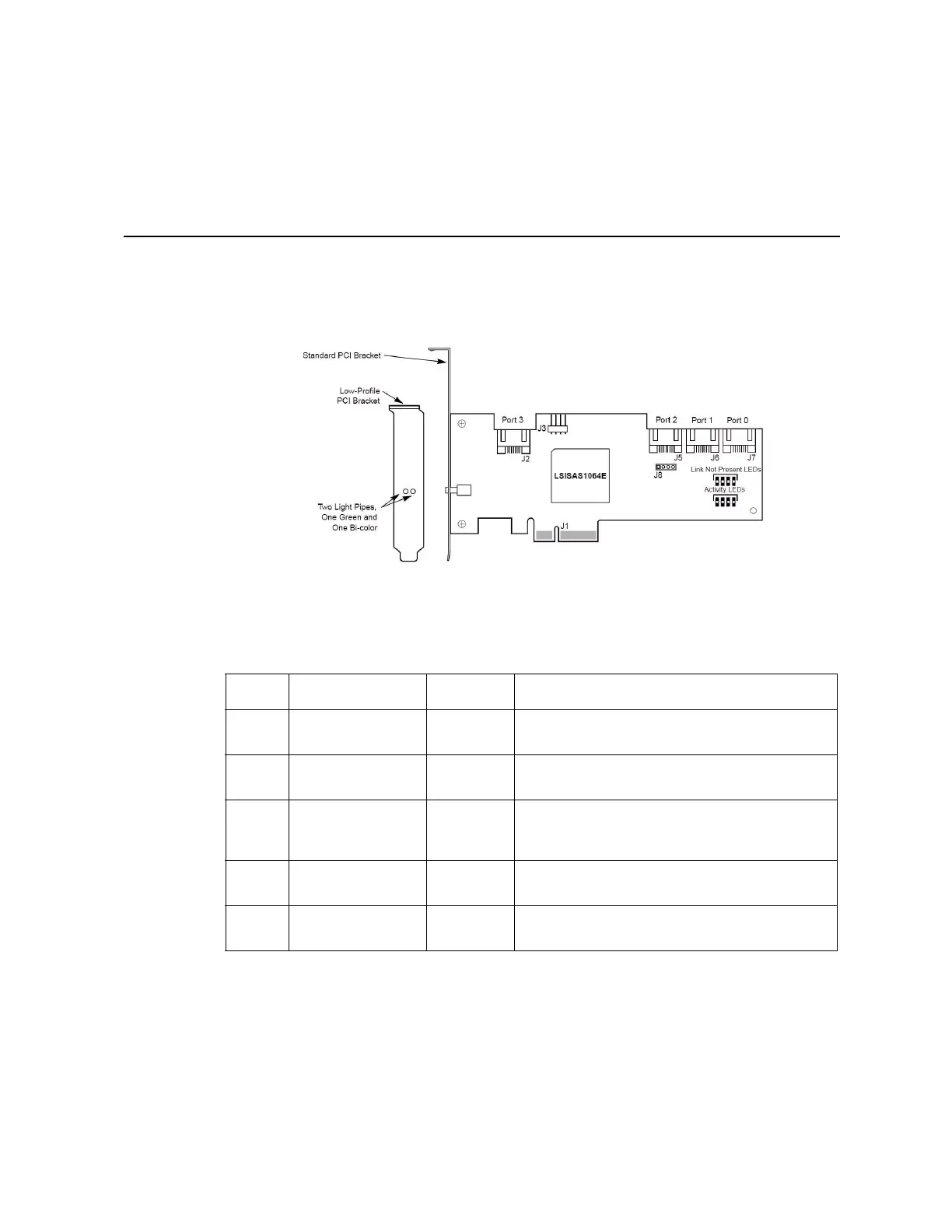

Figure 4. Card Layout
s
Table 1. Jumper Descriptions
Jumper Description Type Comments
J1 Lane board edge
connector
PCI
Express* x4
PCI Express X4 Slot or larger compatible
J2 SATA internal right-
angle connectors
SATA Connection to SAS/SATA devices
J3 Right angle, 0.1-
inch pitch, pin
header
4-pin
header
For driving external activity LEDs
J5-J7 SATA internal right-
angle connectors
SATA Connection to SAS/SATA devices
J8 Debug header 4-pin
header
For factory use
