Intel X550-T2 User Manual

Label
Indication Meaning
LNK On The adapter and switch are receiving power; the
cable connection between the switch and adapter is
good.
Off The adapter and switch are not receiving power; the
cable connection between the switch and adapter is
faulty; or you have a driver configuration problem.
ACT On or flash-
ing
The adapter is sending or receiving network data. The
frequency of the flashes varies with the amount of net-
work traffic.
Off The adapter is not sending or receiving network data.
100 On Operating at 100 Mbps.
Off Operating at 10 Mbps.

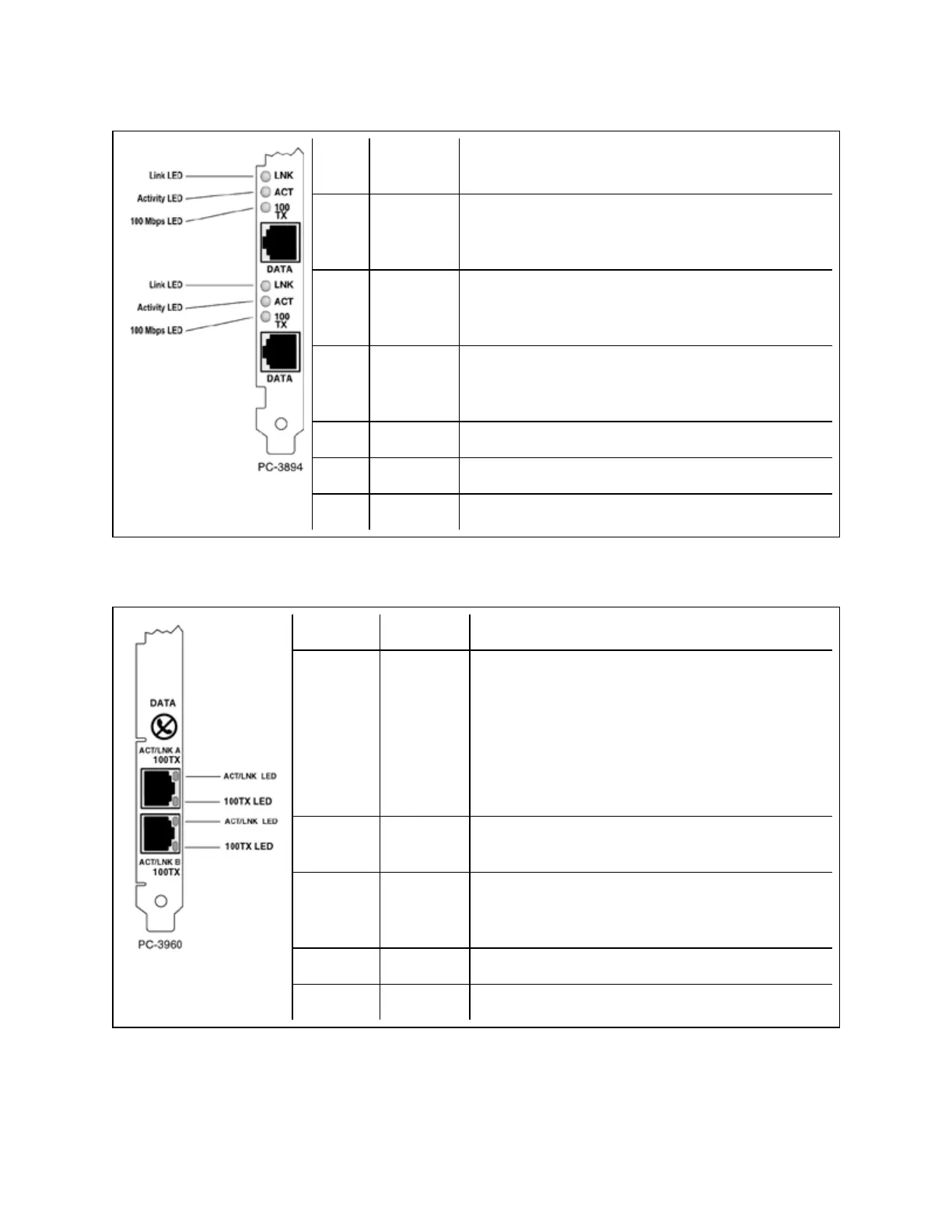

The PRO/100+ Dual Port Server adapter (with three LEDs per port) has the following indicator lights:
Label Indication Meaning
ACT/LNK On The adapter and switch are receiving power; the
cable connection between the switch and adapter is
good.
NOTE: if only one port appears to be operating, go
into the Network controlpanel(Windows) or a
configuration file for other operating system, and
check the status of the second port.
Off The adapter and switch are not receiving power, or
you have a driver configuration problem.
Flashing The adapter is sending or receiving network data.
The frequency of the flashes varies with the amount
of network traffic.
100TX On Operating at 100 Mbps.
Off Operating at 10 Mbps.
The Intel® PRO/100 S Dual Port Server adapter (with 64 bit PCI Connector) has the following indicator
lights:
