Label Indication Meaning
not labeled Flashing
Identity. Use the "Identify Adapter" button in
Intel PROSet to control blinking. See Intel
PROSet Help for more information.
LNK
On The adapter is connected to a valid link partner.
Off No link.
ACT
On Data is being transmitted or received.
Off No data activity.
10/100/1000
Off 10 Mbps
Green 100 Mbps
Yellow 1000 Mbps

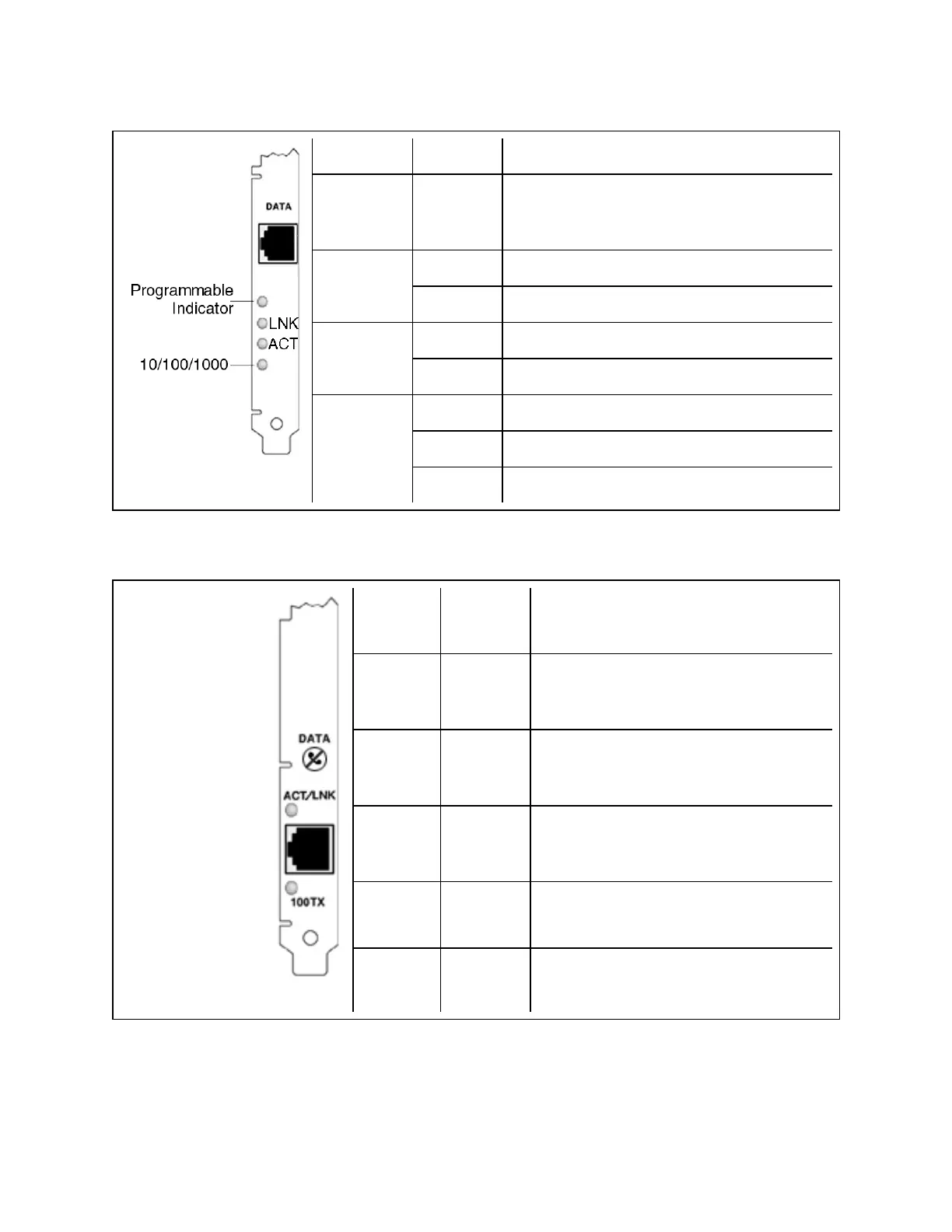

The Intel® PRO/1000 T Server Adapter has the following indicator lights:
Label Indication Meaning
ACT/LNK On The adapter and switch are receiving
power; the cable connection between the
switch and adapter is good.
Off The adapter and switch are not receiving
power, or you have a driver configuration
problem.
Flashing The adapter is sending or receiving net-
work data. The frequency of the flashes
varies with the amount of network traffic.
100TX On Operating at 100 Mbps.
Off Operating at 10 Mbps.
The Intel® PRO/100+, PRO/100 M, PRO/100 S , and PRO/100 VE and VM Desktop adapters and Net-
work Connections have the following indicator lights:
