Installing the Adapter
Select the Correct Slot
One open PCI-Express slot, x4, x8, or x16, depending on your adapter.
NOTE: Some systems have physical x8 PCI Express slots that actually only support lower speeds.
Please check your system manual to identify the slot.
Insert the Adapter into the Computer
1. If your computer supports PCI Hot Plug, see your computer documentation for special installation
instructions.
2. Turn off and unplug your computer. Then remove the cover.
CAUTION: Turn off and unplug the power before removing the computer's cover. Failure to
do so could endanger you and may damage the adapter or computer.
3. Remove the cover bracket from an available slot.

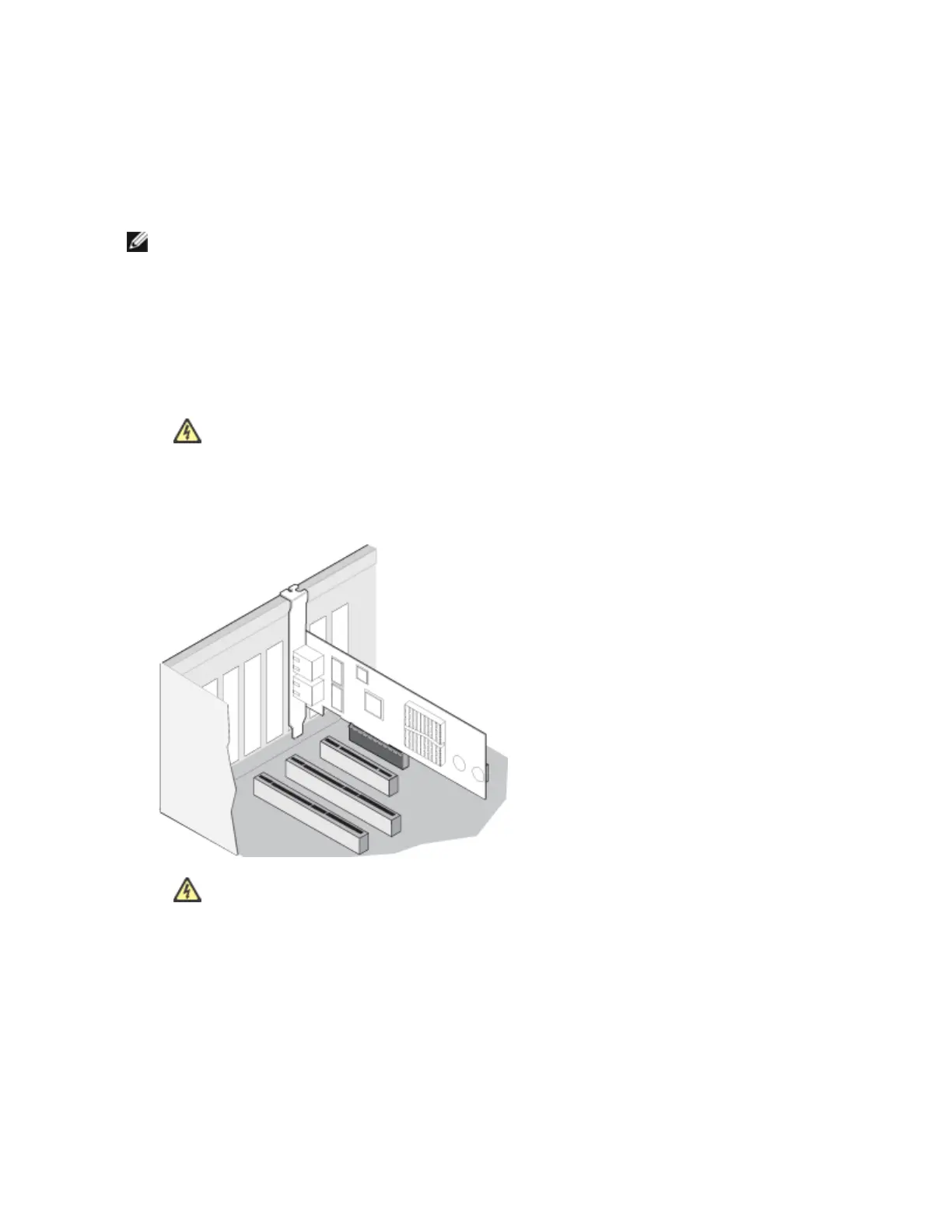

4. Insert the adapter, pushing it into the slot until the adapter is firmly seated. You can install a smaller
PCI Express adapter in a larger PCI Express slot.
CAUTION: Some PCI Express adapters may have a short connector, making them
more fragile than PCI adapters. Excessive force could break the connector. Use cau-
tion when pressing the board in the slot.
5. Secure the adapter bracket with a screw, if required.
6. Replace the computer cover and plug in the power cord.
7. Power on the computer.
Connecting Network Cables
Connect the appropriate network cable, as described in the following sections.
