Intel ZT8101 - Identifying External Components

ZT8101 User’s Manual 15
Installation and Initial Setup
Identifying External Components

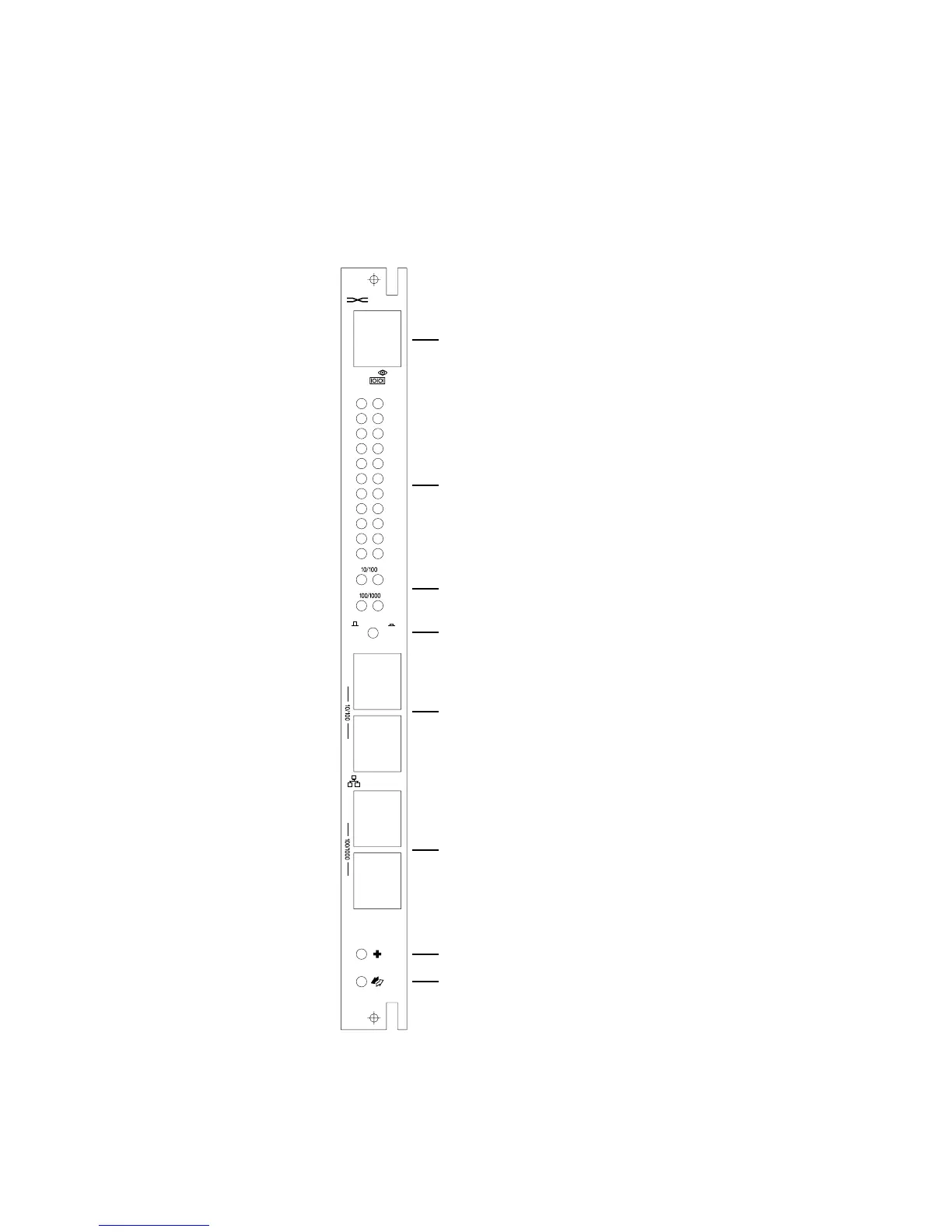

This chapter describes the front panel and the LED indicators of the ZT-8101switch. The front
panel consists of LED indicators, a management serial port, a toggle button, two 10/100 Ethernet
ports, and two 100/1000 Ethernet ports.
23
24
12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22/f
23 24
25
26
25
26
Management Serial Port
Toggle Activity/Speed LEDs Pushbutton
10/100 Ethernet Ports
100/1000 Ethernet Ports
Board Status
Hot Swap
Ethernet Channel LEDs
(Activity/Speed)
Front Panel Ethernet Port LEDs
(Activity/Speed)
STATUS
HOT SWAP
LINK
ACT
SPEED
