Intelix INT-44HDX-BSTK - Rear Panel

INT-44HDX Installaon Guide
8

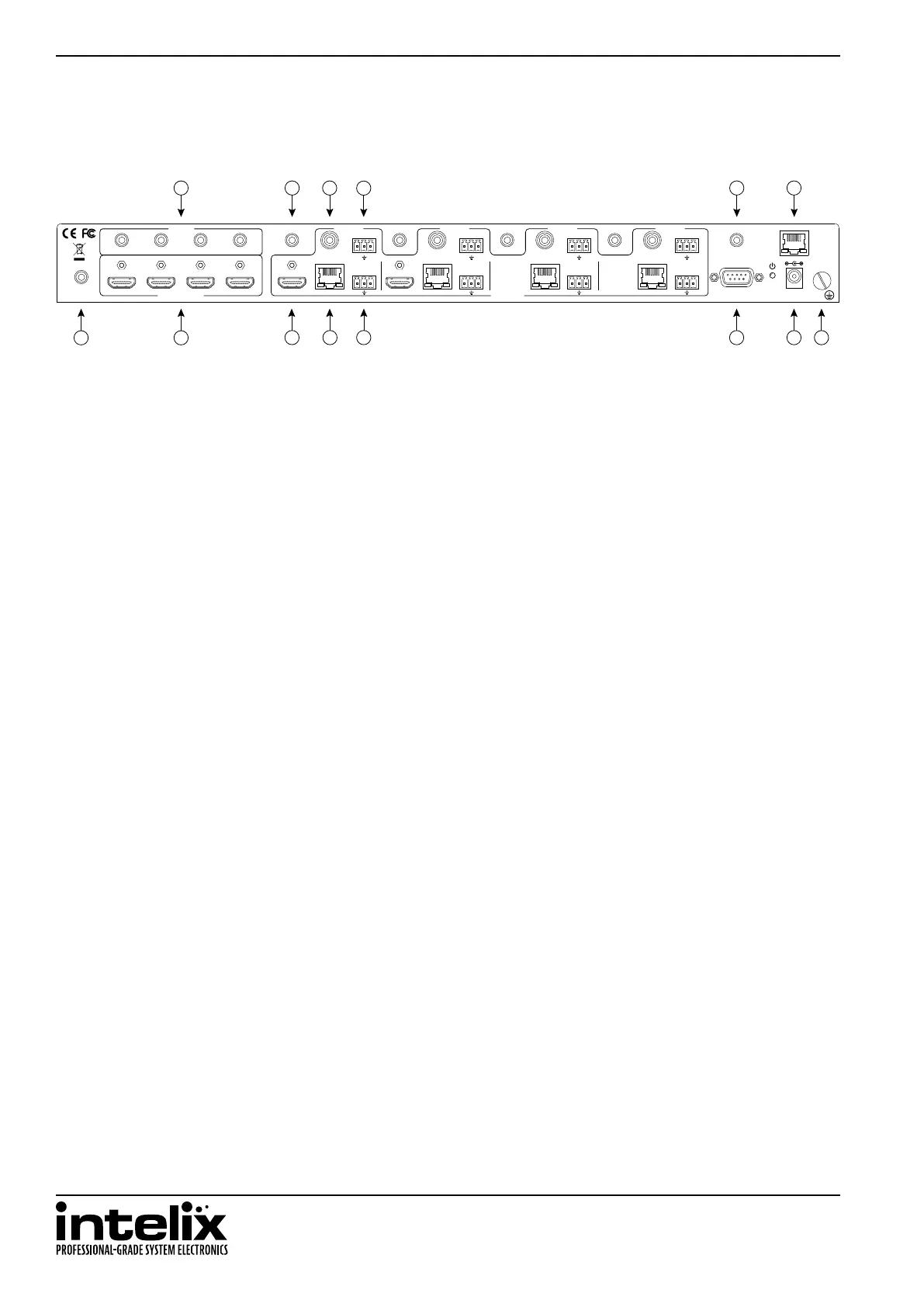

Rear Panel
IR ALL IN
HDMI INPUTS OUTPUTS
IR OUT ZONE 1 ZONE 2 ZONE 3 ZONE 4
1
1
2
2
3
3
4
4
IR IN
1
IR IN IR IN IR EYE
TCP/IP
RS232
24V DC
3
IR IN
4
2
TX
AUDIO
RS232
COAX RX
LHDBaseT
HDMI
R
TX
AUDIO
RS232
COAX RX
LHDBaseT R
TX
AUDIO
RS232
COAX RX
LHDBaseT R
TX
AUDIO
RS232
COAX RX
LHDBaseT
HDMI
R
A B C
D
E F
G H
I J K
L M N
A. IR output ports for each source device
B. IR input ports for each HDBaseT output
C. Coaxial digital audio output ports
D. RS232 input for each HDBaseT output
E. IR input for matrix when front is covered or matrix is located in a concealed locaon (IR EYE)
F. TCP/IP (Ethernet) control input; also allows control via web browser
G. IR input to send IR commands to all remote HDBaseT devices simultaneously (IR ALL IN)
H. HDMI inputs
I. HDMI outputs (1 and 2 only)
J. HDBaseT outputs with PoH support
K. Unbalanced analog audio output ports
L. RS232 control input
M. 24V DC power input
N. Ground screw
