Intellian t110Q User Manual

t110W/t130W – Marine Satellite Television System
34
Connecting the System's Cables
Up to 4 Receivers Connection
In Universal LNB mode, RF1, RF2, RF3 and RF4 can be connected, however,
when you switch and use the system from universal LNB mode (ex. Europe) to
single LNB mode (ex. US), RF3 and RF4 will not work and only RF1 and RF2 will
transfer the satellite's signal.
• Connect the RF cable from the ACU's RF1 connector on the power switch
box located inside of the radome to the ANT. RF1 connector on the rear of
the ACU.
• Connect the RF cable from the RECEIVER's connector on the rear of the
ACU to the RF on the IRD.
• Connect the ship’s gyro cable from the ship’s gyro to the Ship’s Gyro
connector on the ACU.
• Connect the power cable from the AC power connector on the rear of the
ACU to a power source at 110- 220 V AC.
• Press the POWER ON switch on the rear of the ACU to start the operation
of the antenna system.

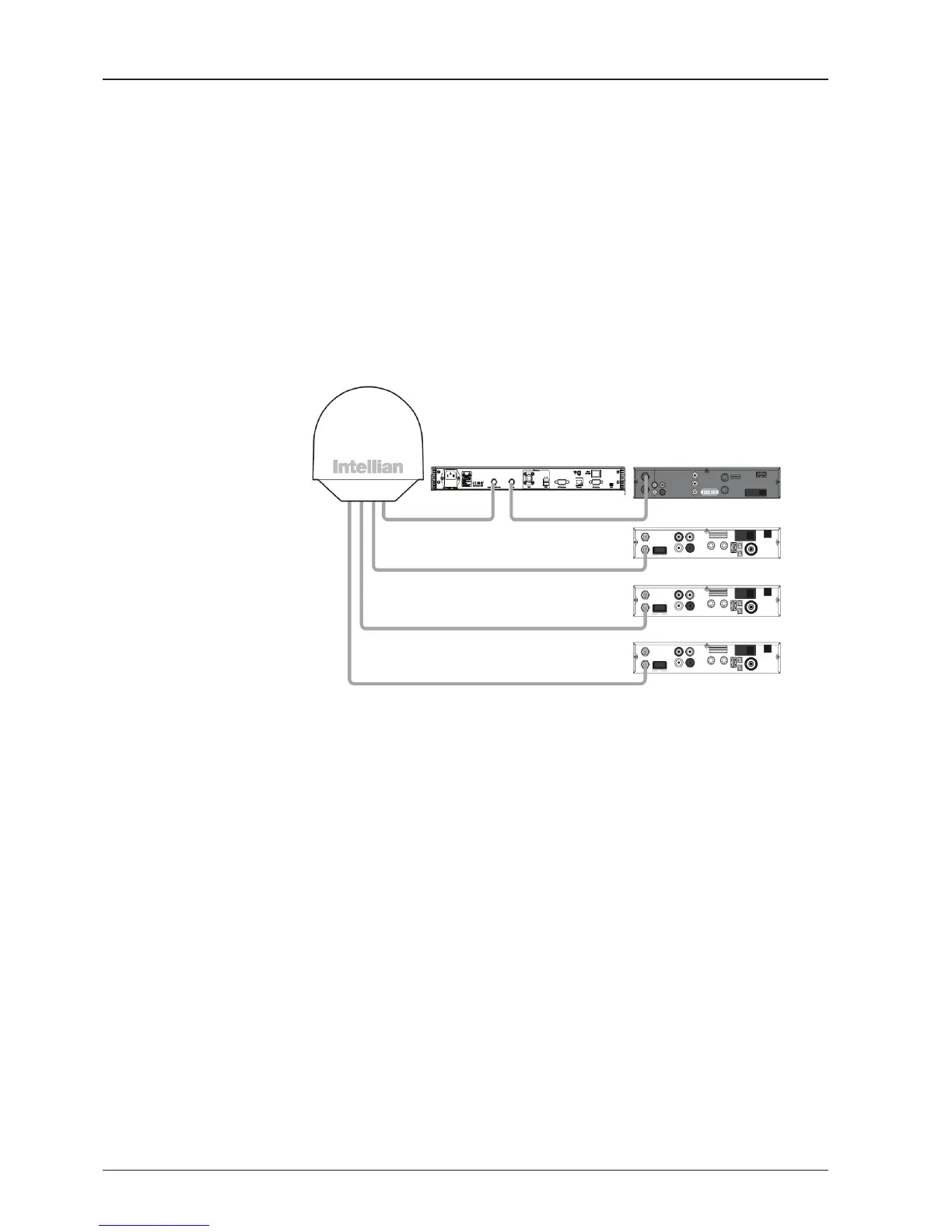

Figure 04. t110W / t130W System Diagram
ACU
RF1
RF2 (Optional)
Receiver 1
Receiver 2
Receiver 3
Receiver 4
RF3 (Optional)
RF4 (Optional)
