INSTALLING THE ACU

Multi-Switch Connection

When you use the multi-switch in single LNB mode, you need to connect RF1 and

RF2 to the low-band (Horizontal Low and Vertical Low) outputs of the 4x8 multi-

switch and disable DisEqC function while connecting to a receiver other than a

European receiver. In Universal LNB mode, RF1~ RF4 can be connected to any

4 outputs of 4x8 multi-switch. However when you use the system for single LNB

mode, RF3 and RF4 ports will not transfer the RF signal.

18V 13V 18V+22KHz 13V+22KHz

Horizontal Low Vertical Low Horizontal High Vertical High

RF1

ACU

RF2

RF3

RF4

4x8

Multi Switch

Receiver 8

Receiver 1

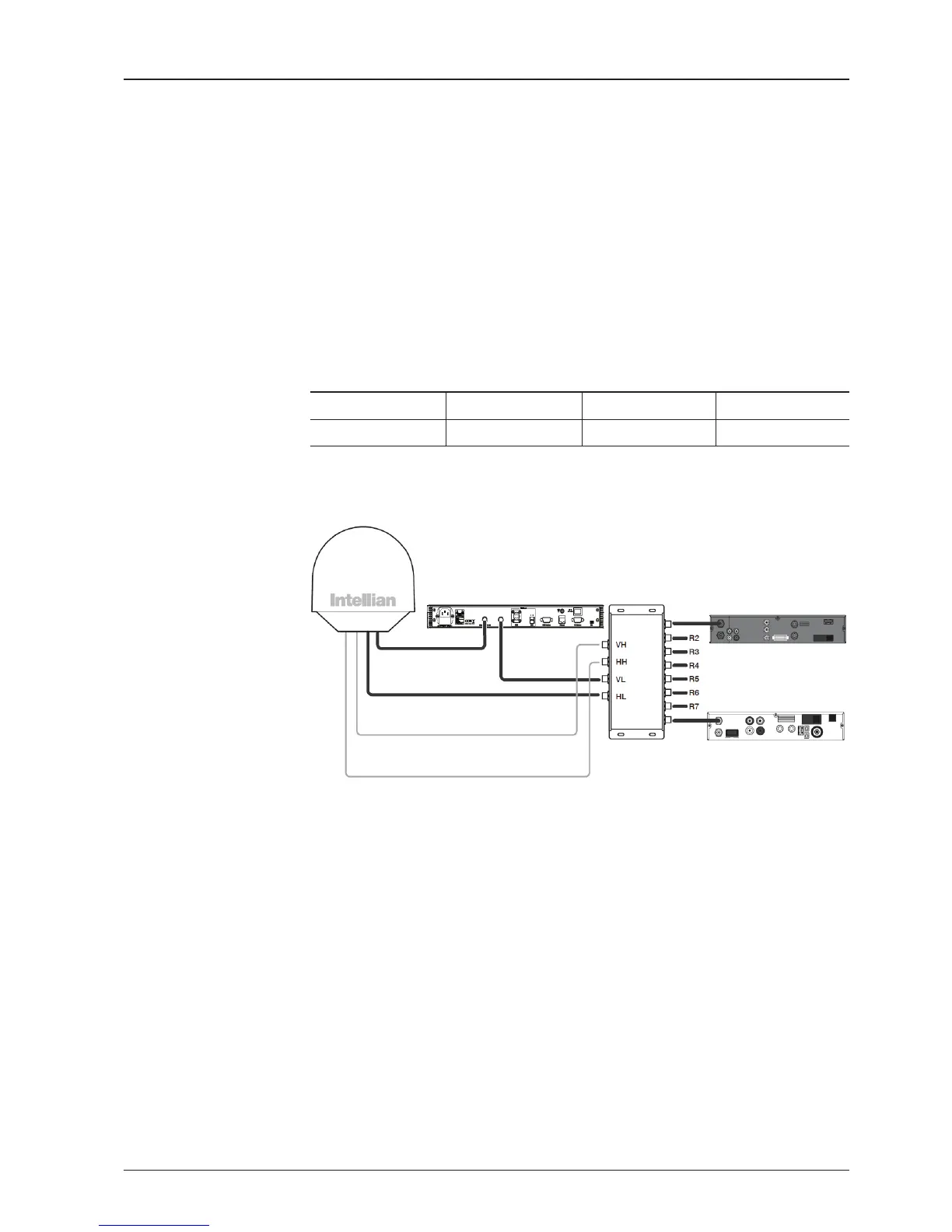

Figure 05. Multi-switch Conguration
