t110W/t130W/t110Q/t130Q – Marine Satellite Television System
36
ACU
RF2(Optional)
RF1
RF3(Optional)
RF4(Optional)
Receiver 1
Receiver 2
Receiver 3
Receiver 4
QSM/ Quad mode
Receivers Direct Connection
When the Receivers are directly connected to the antenna outputs, set the Quat-
tro Switching Module(QSM) to Quad mode. (Multi-switch is not used)
Be sure to set to Quad mode.
When connecting more than 4 receivers, refer to the previous section "Multi-
Switch Connection" for more details.
• Be sure to set the QSM to Quad mode.
• Connect the RF cable from the ACU's RF1 connector on the power switch
box located inside of the radome to the ANT. RF1 connector on the rear of
the ACU.
• Connect the RF cable from the RECEIVER's connector on the rear of the
ACU to the RF on the IRD.
• Connect the ship’s gyro cable from the ship’s gyro to the Ship’s Gyro
connector on the ACU.
• Connect the power cable from the AC power connector on the rear of the
ACU to a power source at 110- 220 V AC.
• Press the POWER ON switch on the rear of the ACU to power on the
antenna.

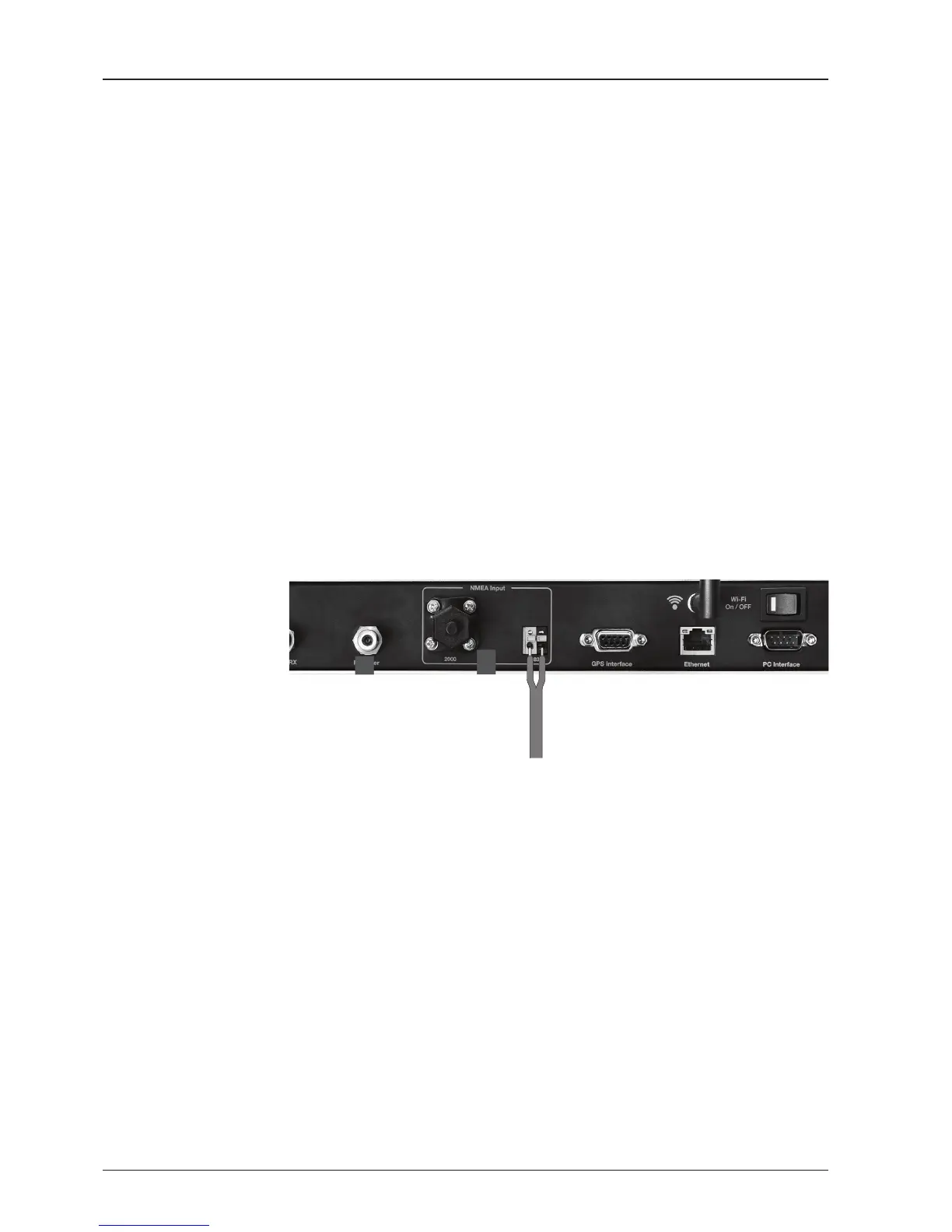

Figure 05. Receivers Direct Connection Conguration
