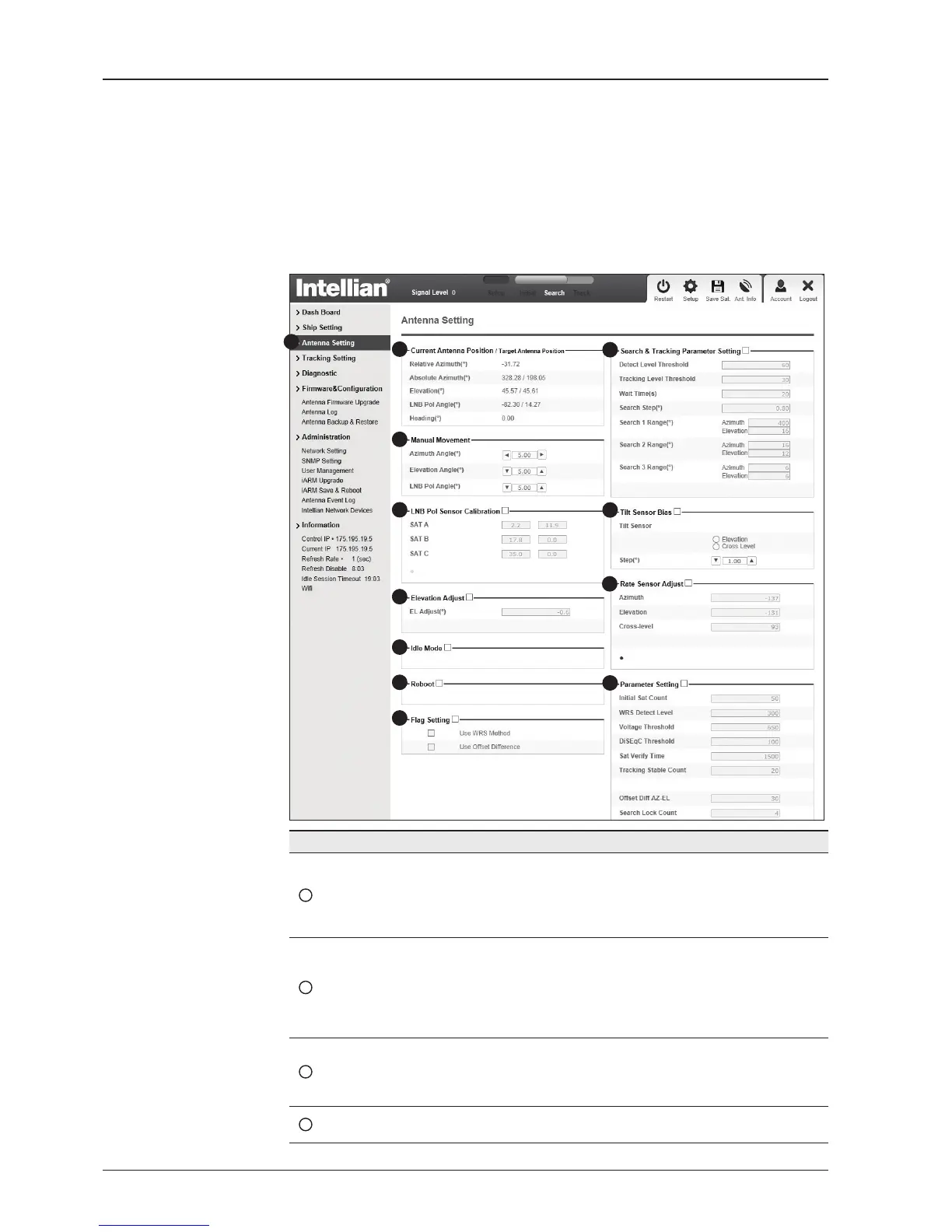

Antenna Position & Parameters
No. Item Description
1
Antenna Setting
Set current antenna position and Search and Track-
ing parameters. These parameters should only be
changed by an authorized service technician. Im-
proper setting of these parameters will render your
system inoperable.
2
Current Antenna Position/
Target Antenna Position
Display current antenna position.
- Relative Azimuth: display antenna relative AZ angle.
- Absolute Azimuth: display antenna absolute AZ angle.
- Elevation: display antenna elevation angle.
- LNB Pol Angle: display LNB pol angle.
- Heading: display ship’s heading information.
3
Manual Movement
Move antenna azimuth and elevation angles and
LNB pol angle to nd the desired satellite manually.
LNB Pol Angel can be adjusted at any time either in
SETUP Mode or Tracking Mode.
4
LNB Pol Sensor Calibration
Calibrate the LNB pol angle when the control board,
potentiometer or LNB Assembly is replaced.
1
3
4
5
6
7
8
9
10
11
12
2
