Intellian t130Q User Manual

t110W/t130W – Marine Satellite Television System
32
Mounting the ACU
19” Rack Mount Type
• The ACU should be installed using the two supplied Rack Mounting
Brackets which allow for a side 19” rack mounting conguration.
• Using the self tapping screws supplied, attach the mounting brackets to
the sides of the ACU.
• Place the ACU in the location where it is going to be installed.
• Connect the cables to the rear of the ACU.
Table Mount Type
• The ACU should be installed using the two supplied Table Mounting
Brackets which allow for a top or bottom mounting conguration.
• Using the self tapping screws supplied, attach the mounting brackets to
the sides of the ACU.
• Place the ACU in the location where it is going to be installed.
• Using a pencil to mark the 4 hole positions (2 on each side), and use the
appropriate drill bit to drill them.
• Connect the cables to the rear of the ACU.
NOTE: Ensure that the cable's length is installed long enough in order to pull out the
ACU from the rack.
Intellian supplies two types of mounting methods (a)19” Rack Mount Type and (b)
Table Mount Type to mount your ACU.

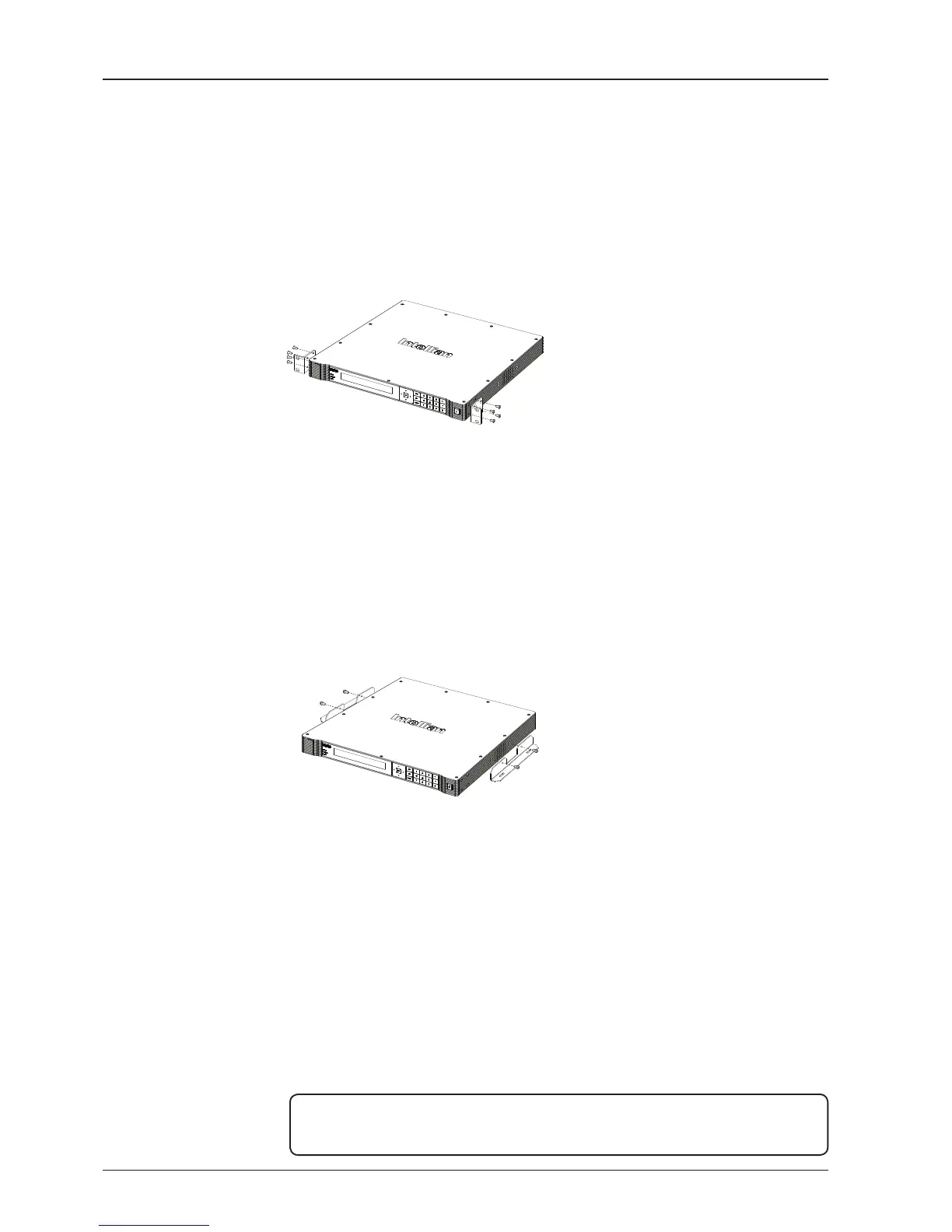

Figure 01. 19" Rack Mount Type
Figure 02. Table Mount Type
