t110W/t130W/t110Q/t130Q – Marine Satellite Television System
14
System Package
The Intellian t110W/t130W/t110Q/t130Q consists of two major units, an antenna
assembly unit and the antenna control unit.
Antenna Unit

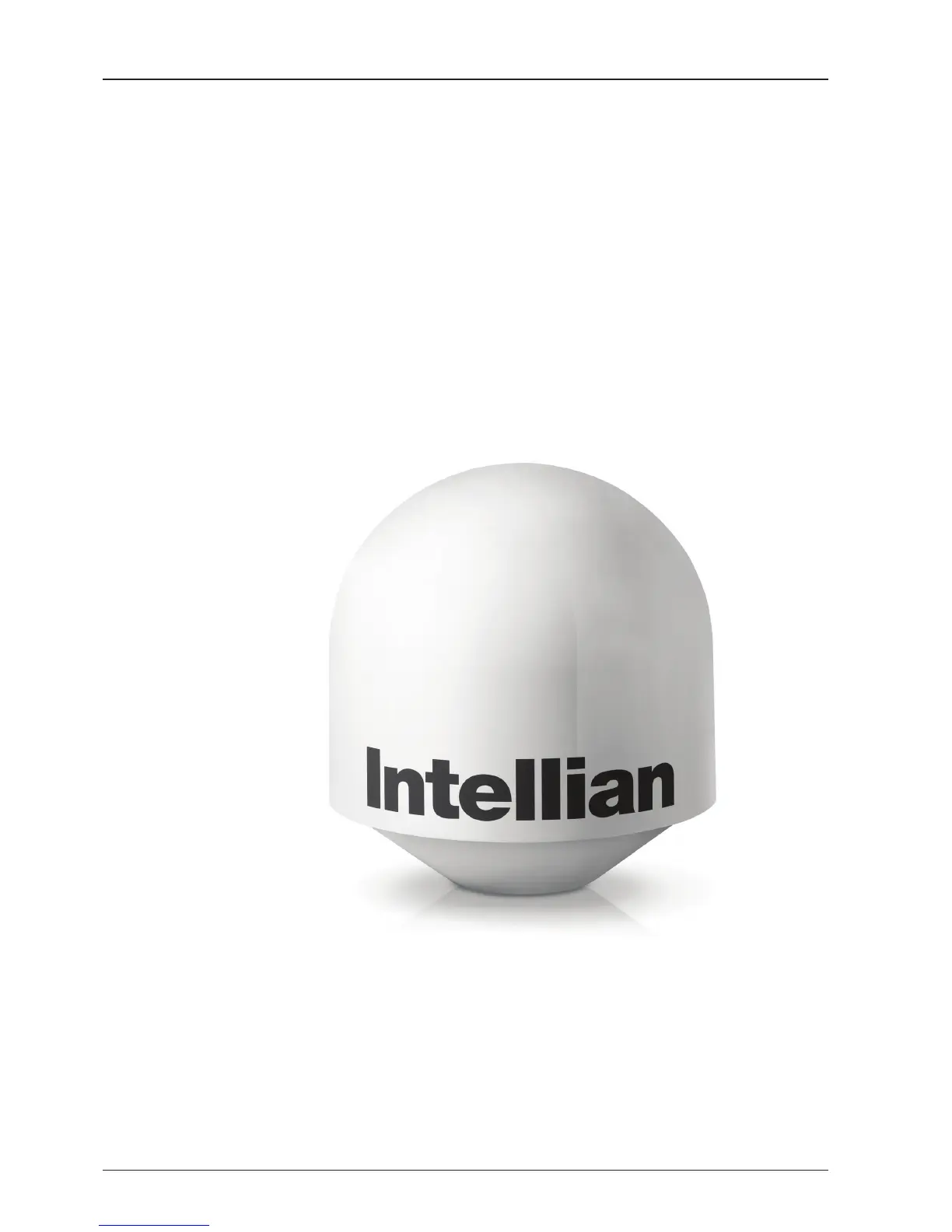

The antenna unit includes an antenna pedestal inside a radome assembly unit.
The pedestal consists of the satellite antenna main dish and sub-reector mod-
ule with the WorldView
TM
LNB module(t110W/t130W) or the Universal Quad LNB
module(t110Q/t130Q) mounted on a stabilized pedestal.
The Quattro Switching Module(QSM) can be changed to quad or quattro mode,
making it compatible with all multiswitches.
The radome protects the antenna pedestal assembly unit from the severe marine
environment.
WorldView
TM
LNB module
(For
t110W/t130W
model)
Universal Quad LNB module
(For
t110Q/t130Q
model)
Quattro Switching
Module(QSM)
(For
t110W/t130W/
t110Q/t130Q
model)
