Tracking Satellite
Display or set current tracking satellite and tracking information. Up to three
satellites can be selected.
2
- Search 3: Search 3 pattern will automatically be initiated when AGC falls below
the current tracking level threshold value. Once the desired signal is found and
above the predened tracking threshold, the ACU will enter to tracking mode.
- Tracking: Antenna is tracking the target satellite.
- Initialize: Antenna or ACU is initializing.
- Setup: Antenna is in SETUP mode.
Signal Level
Shows “DVB” when DVB mode of tracking signal is in use. The “Red” line indicates
the signal “Detect Level Threshold” and the “Orange” line indicates the signal
“Tracking Level Threshold”. If the signal level is higher than the tracking level
threshold, the signal level bar will display “Blue” color. If the signal level is lower
than the tracking level threshold, the signal level bar will display “Orange” color and
the antenna will stay in searching mode.
NOTE: If the signal level is not higher than the tracking threshold, decrease the detect
and tracking level.

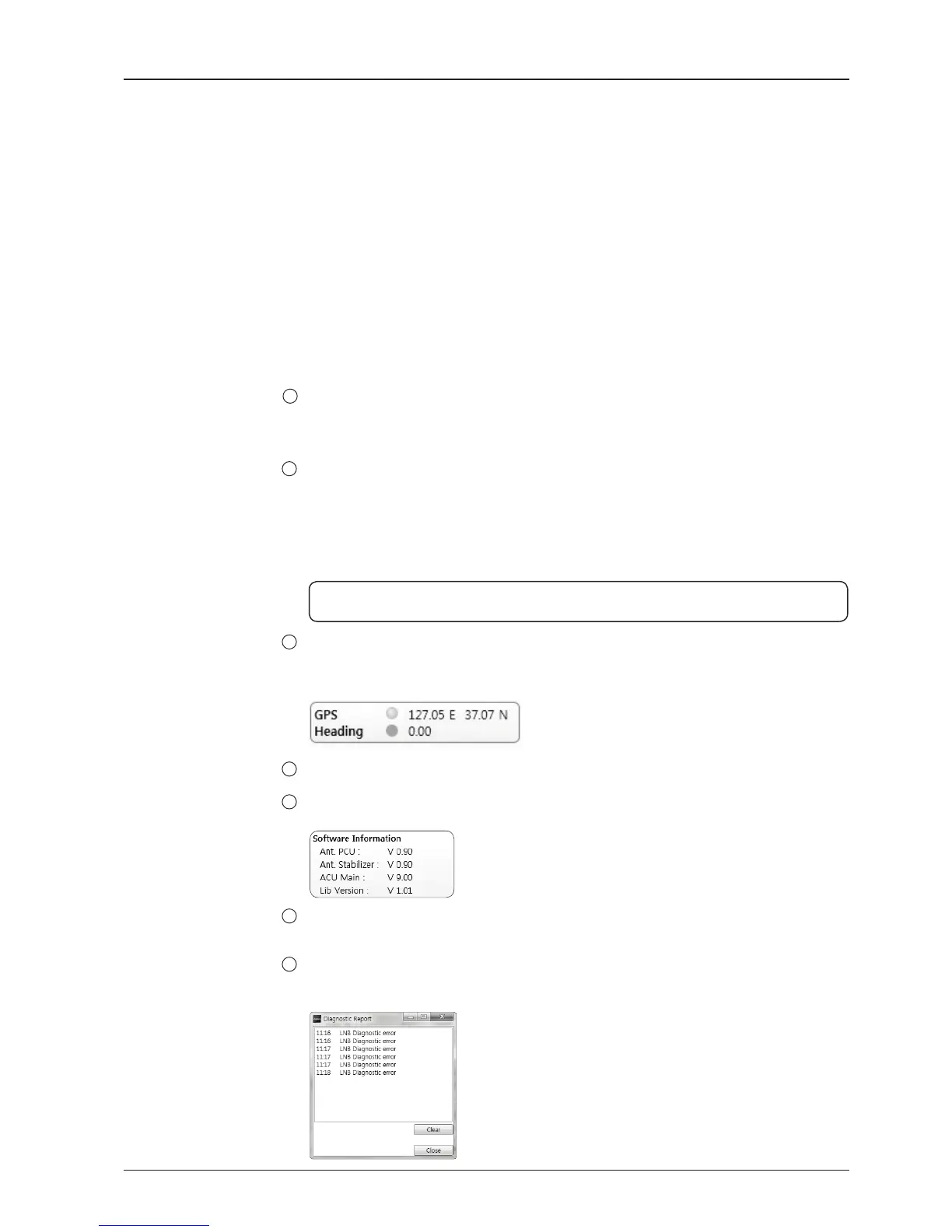

GPS and Heading
Displays the current GPS location from the Antenna and Ship’s heading information.
The status light ashes green if the system receives a correct input of the GPS and
Ship’s heading.
Voltage: Displays the antenna and the ACU voltage information.
Software Information: Displays the antenna and the ACU rmware versions, and the
library version.
Product Information: Displays the antenna and ACU serial numbers, antenna model
and ACU model.
Diagnostic Error Report
The square button next to the Diagnostic Error Report turns red when the system
receives an error. Click the button to see a Diagnostic Report.
