1. System brief introduction
System introduction
C-5 system uses category 5 cable to transfer signal, it is very easy for system installation and maintenance. It adopts the automatic
video pre-amplified and loss compensation technology to enable the stable signal transmission, this strength is more obvious in the long
distance transmission, the image will be still clear and preventative from disturbance. Besides, the C5 system integrates the functions of
network video intercom, alarm and message sending & receiving, which can cater to any of your needs.
System features
■ High safety. Antistatic and anti thunder design.
■ Super compatibility. All of the door stations and indoor phones can work with each other as you wish.
■ High reliability. Door station and indoor phone are controlled by MCU to make system much safer and more reliable.
■ Easy setting. System parameter set by computer, alarm information can be recorded and checked, very convenient to use.
■ Simple wiring. Using standard CAT-5 cable for connection, high reliability, and convenience for installation and maintenance.
System function
■ Intercom
The system supports video intercom between door station and indoor phone, door station and guard unit, perimeter gate station and
guard unit, perimeter gate station and indoor phone, guard unit and indoor phone. if the product is only audio available, there can only
audio intercom between above mentioned components.
■ Monitor
Indoor phone can monitor door station and second confirmed door station. Guard unit can monitor door station and perimeter gate
station.
[Note] Only video system has this function.
■ Door release
Several ways for door release: It can be from indoor phone or guard unit to unlock, or by password or IC/ID card etc to unlock.
■Alarm
Indoor phone can send alarm signal to guard unit
[Note] Below functions only apply to indoor phone with alarm area
Alarm message can be sent to guard unit automatically, and guard unit can check the alarm types, time, place and resident information
through the remote computer control.
■ Picture memory
Can record and check the image of visitors
[Note] Only apply to the indoor phone with picture memory function.
54

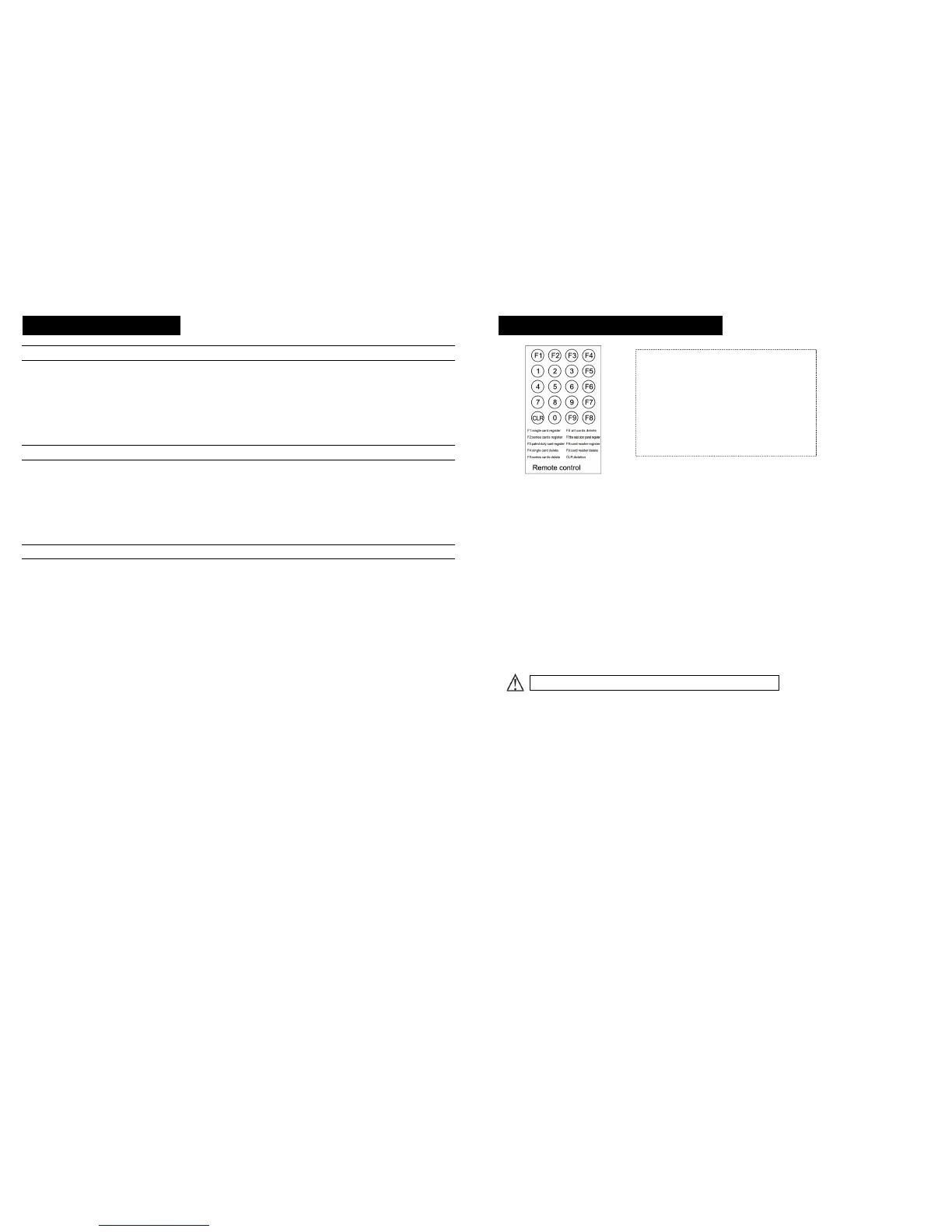

Appendix 5. Remote control user manual
■ Change password
1. Press [CLR]→ current password(4 bits)→ ne w password(4bits)→ [F3].
2. The Card Reader status LED will blink once, and the device will sound a long "di"；
3. If enter a wrong number, the Card Reader status LED will blink thrice quickly, and the device will sound three short "di", please
repeat the step1.
[Note]The originalpassword is 1-2-3-4.
Enter the setting state
1. Press [CLR]→ Password(4bits)→ [F3].
2. The Card Reader status LED will on, and the device will sound a long "di"；
3. If enter a wrong number, the Card Reader status LED will blink thrice quickly, and the device will sound three short "di", please
repeat the step1.
[Note]Press [CLR]→ [F3] can quit the setting sta te.
■ Unlock time
Press [CLR]→ Unlock time (01~20)→ [F3].
[Note] Original factory setting is 5s.
e.g. P ress [CLR]→ [0][8]→ [F3]
，
to set the unlock time 8s.
■ Register single card
Card number register：
Press[CLR]→ Card number→ [F1].
Card reader register：
Press[CLR]→ [F8]→ put the cards close to the card reader in turn→ [CLR].
e.g. press[CLR]→ [02584235]→ [F1].
or press[CLR]→ [F8]→ first card→ second card→ … … → [CLR].
Hereinafter settings
To Next Page
