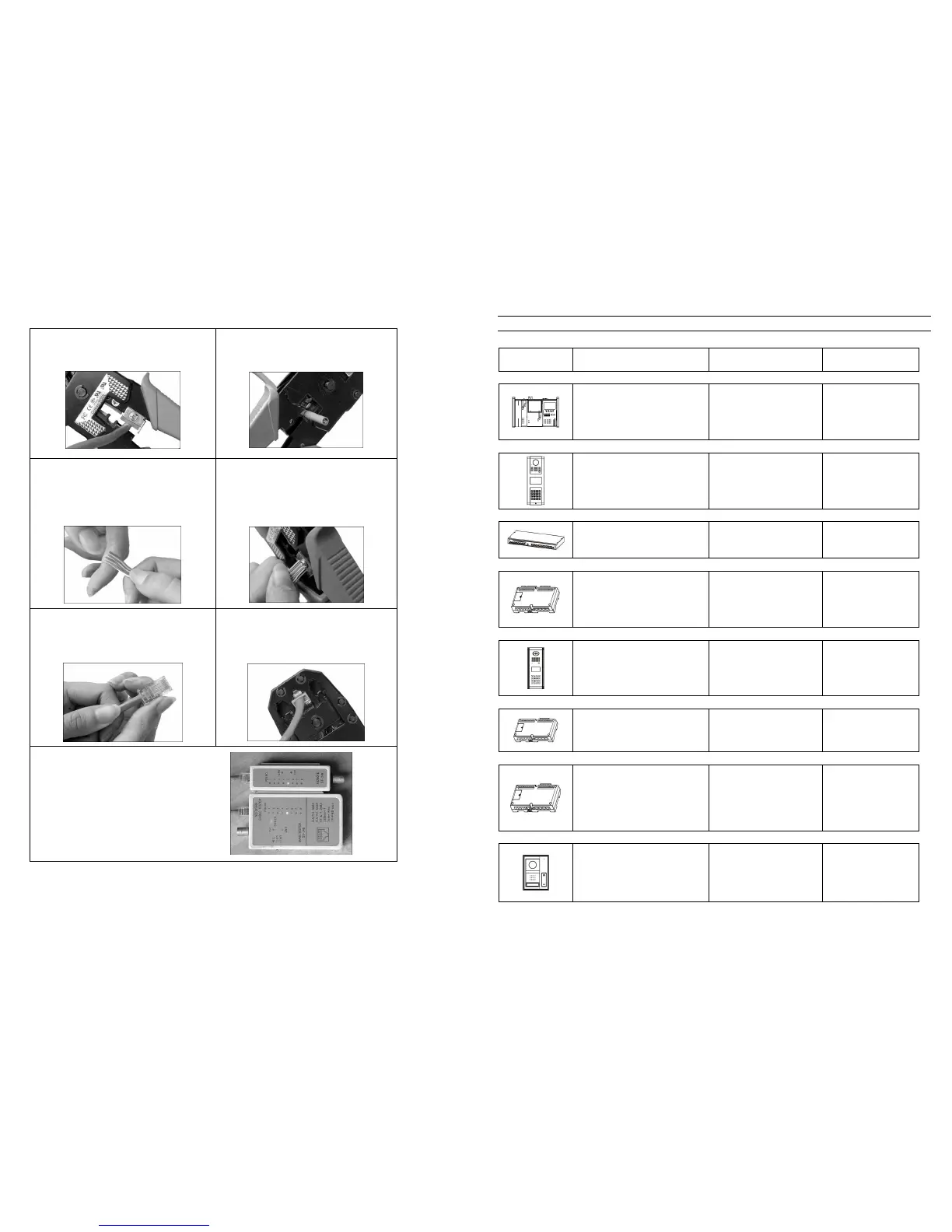

RJ45 plug making step pictures
Step 1. Use clamp’s knife edge to cut needed length of
the cable.
Step 2. Remove the grey rubber protector, use knife
edge to cut the cable trim
Step 3.：Untie the twisted lines，follow the sequence
from left to right (orange white-orange-green white-
blue-blue white- green-brown white-brown) to
arrange the lines，make them straight and clean.
Step 4. ： Use clamp knife edge to cut the top of the
lines clean，the remained parts without rubber should
be around 15mm.
Step 5 ：Insert the ready lines into plug according to the
picture (Note: The plug with spring should face
down.)and make sure that the lines are to the top of
the plug
Step 6 ：Pressing plug. After making sure the lines’
sequence is correct, put the plug into the 8P groove，
press the clamp to make the needle outside of plug
into plug.
Step 7: repeat Step 1 - Step 6 for another end of the
cable.
Step 8: use the tester to test if the wires at two ends are
conjoint well and corresponding each other at right
sequence.
2
Components (Pictures in the table only for reference.)
Product Main features specifications Remark
Guard unit
Remote monitor any door station in
network, intercom between all indoor
phones and door stations, store and
review alarm information.
Operating voltage: DC30~35V;
Quiescent current: ≤ 90mA;
Operating current: ≤ 350mA
Network equipments
(optional)
Perimeter gate station
Using at main entrance, with the
intercom, door release and other
functions.
Operating voltage: DC30~35V;
Quiescent current: ≤ 90mA;
Operating current: ≤ 260mA
Network equipments
(optional)
Network switch
Achieve the function of switching signal
among every branch.
Operating voltage: DC30~35V;
Quiescent current: ≤180mA;
Operating current: ≤ 200mA
Network equipment (basic)
Gate-way
Achieve the function of audio and video
signal switch function.
Operating voltage: DC30~35V;
Quiescent current: ≤ 30mA;
Operating current: ≤ 90mA
Network equipment (basic)
Door station
Using at building entrance, with the
intercom, door release and other
functions.
Operating voltage: DC30~35V;
Quiescent current: ≤ 90mA;
Operating current: ≤ 250mA
Unit equipment (basic)
Distributor
Achieve the function of audio, video
signal distribution , each distributor can
connect up to 4 indoor phones in
different apartment.
Operating voltage: DC30~35V;
Quiescent current: ≤ 15mA;
Operating current: ≤ 90mA
Unit equipment (basic)
Apartment distributor( with second confirmed door station)
Achieve the function of audio, video
signal distribution , each distributor can
connect up to 4 indoor phones in the
same apartment. When calling, 4 indoor
phones will ring at the same time
Operating voltage: DC30~35V;
Quiescent current: ≤ 15mA;
Operating current: ≤ 90mA
Unit equipment (optional),
match with apartment door
station in use
Apartment second confirmed door station
Used in front of apartment door.
Operating voltage: DC30~35V;
Quiescent current: ≤ 90mA;
Operating current: ≤ 250mA
Unit equipment (optional),
only one for each family，
use together with single
channel distributor(with
second confirmed door
station port)
