Intelligent Home Cat-5 network cable User Manual

3

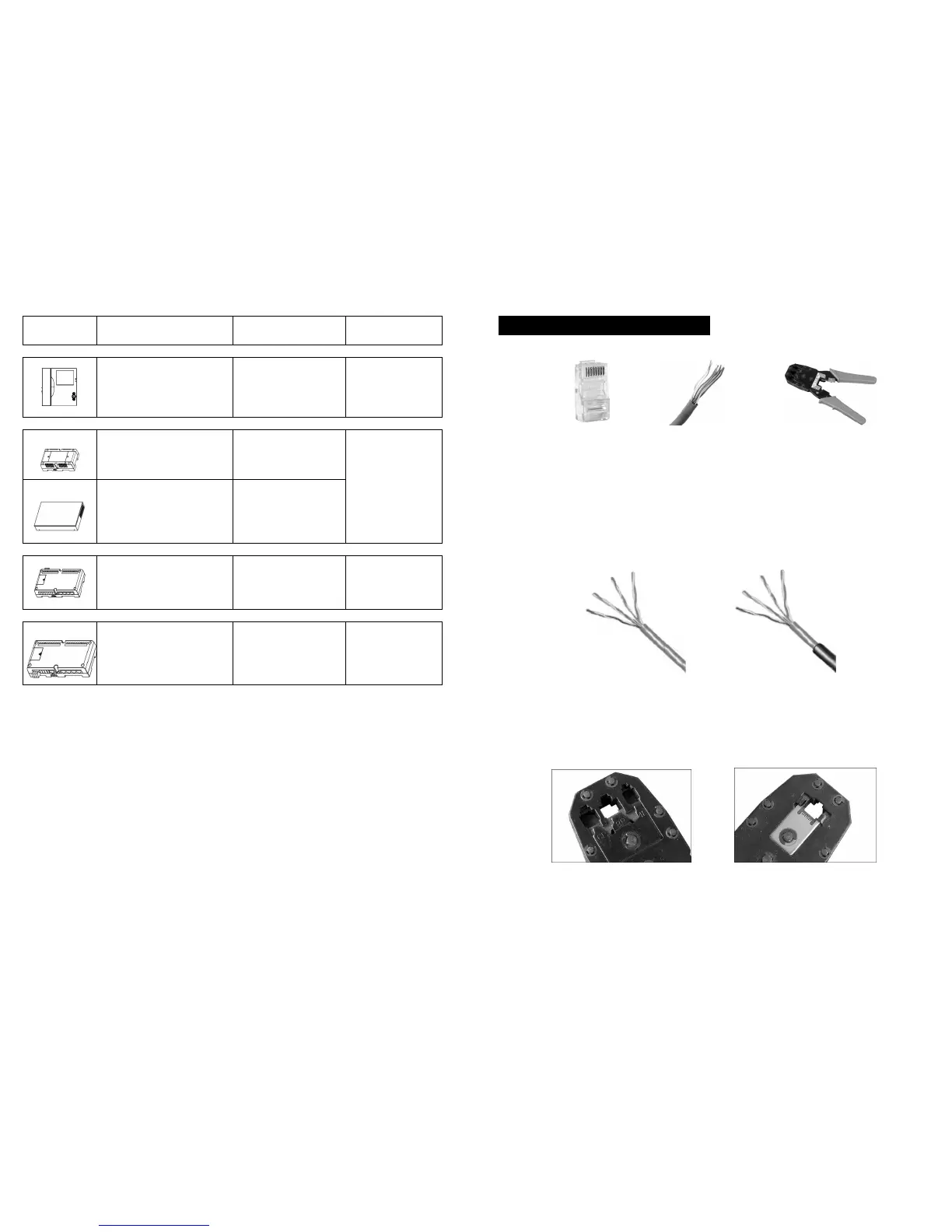

Product Main features Specifications Remark
Indoor phone
Achieve the functions of intercom,
unlock, monitor, and sending alarm to
guard unit
Operating voltage: DC30~35V;
Quiescent current: ≤ 25mA;
Operating current: ≤ 350mA
Unit equipment（basic）
One family can have 1-4
pcs of indoor phone
Power supply
Switch power supply
Supply p ower for equipment (not including
battery)
Operating voltage: AC180~270V
50~60Hz;
DC Output: DC35V/1.4A;
System equipment（basic）
User can choose power supply
according to their actual need
UPS power supply
Supply power for equipment.(The power is
with battery backup inside.)
Operating voltage: AC180~270V
50~60Hz;
DC Output: DC35V/1.4A; backup
battery capacity: 4Ah
Video repeater
Used to improve long distance network video
effect
Operating voltage: DC30~35V;
Operating current: ≤60mA
It is used when the network
distance in a unit surpasses
600m.
Door station extender
Used for extend the accessory door
station.
Operating voltage: DC30~35V;
Quiescent current: ≤15mA
Operating current: ≤60mA
Unit equipment (optional)
52
Appendix 4. RJ45 plug making method
Firstly, introduce some tools and materials needed for making RJ45 plug.
RJ45 plug CAT-5 Clamp
■ RJ45 plug
RJ45 Plug is the connector of CAT-5 with module jack structure. There are 8 grooves on the front of the connector called 8P（Position） , and there are 8
metal contact points called 8C （Contact）. When connecting CAT-5, the metal thorn should stab into the cable, making metal thorn connecting with cable
‘s copper conductor to make the system works
■ CAT 5 cable
C-5 system adopts currently widely used Category 5 cable and Category 5E cable. Meanwhile, network wiring should adopt water proof Category 5E
cable. To distinguish C-5 cable and C-5E cable, please refer to below picture.
C-5 water proof C-5E
■ Clamp
On top of clamp is RJ45 plug groove used for binding plug and cable together, there are three size grooves, respectively are 6P, 8P and 4P. The 8P
groove is what we use for binding RJ 45 plug. Behind 8P grooves, we can see dentate modules, which are used for pressing 8 plug contact points to
cable
