Intellinet 525688 Quick Install Guide

2
ENGLISH
Wireless AC1200 PoE Access Point • Quick Install Guide English
A
B
D
C
This quick install guide presents basic installation steps. For operation
details and specications, refer to the user manual on the included CD or
at intellinetnetwork.com.
CONNECTIONS

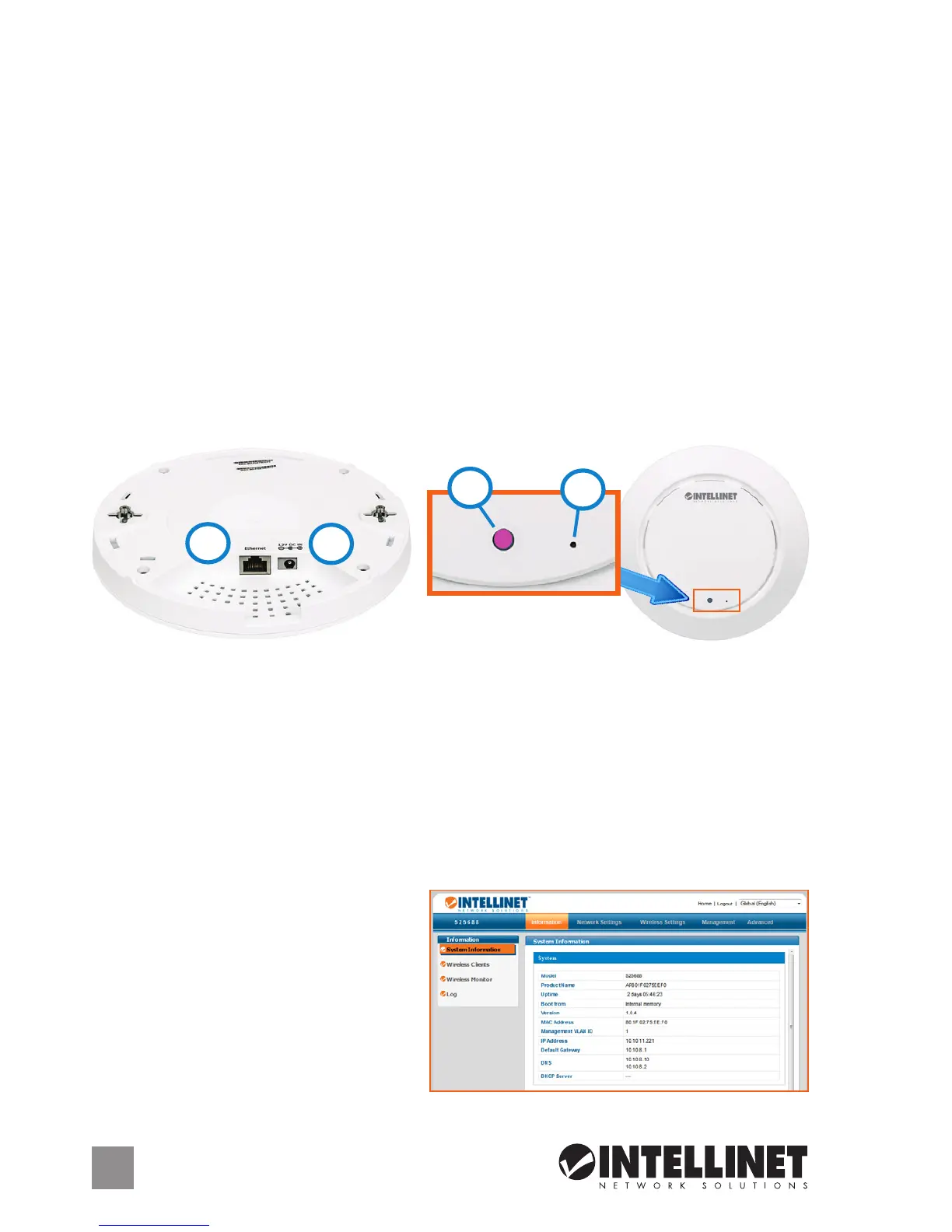

1. Refer to Section III of the user manual to mount this device (ceiling,
wall, post, etc.) where the cables will reach. Note: Placing the access
point out of easy reach may require that you use the Web management
interface for the Reset function.
2. Connect your Ethernet cable (A) and the power adapter (B) to the main
chassis of the access point and connect the other end of the two cables.
Note: You can connect the access point to an IEEE802.3af PoE-compliant
source instead of an AC wall outlet.
• Once the access point is connected, the LED (D) will light blue to indicate
it’s powered on, then it will light purple to indicate it’s ready for use. If it
blinks yellow, there is an error or bad network connection.
OPERATION
1. Enter http://192.168.2.1 on your Web browser to display a login
window for the Web management interface, where all functions and
settings for the access point are congured.
2. Enter “admin” for username and “1234” for password, then click “OK” to
display the System Information
screen of the interface. Refer to
the user manual for further
instructions.
• Use a pin or other narrow object
to press the Reset button (C)
when needed.

Intellinet 525688 Specifications

General

Brand	Intellinet
Model	525688
Category	Wireless Access Point
Language	English
