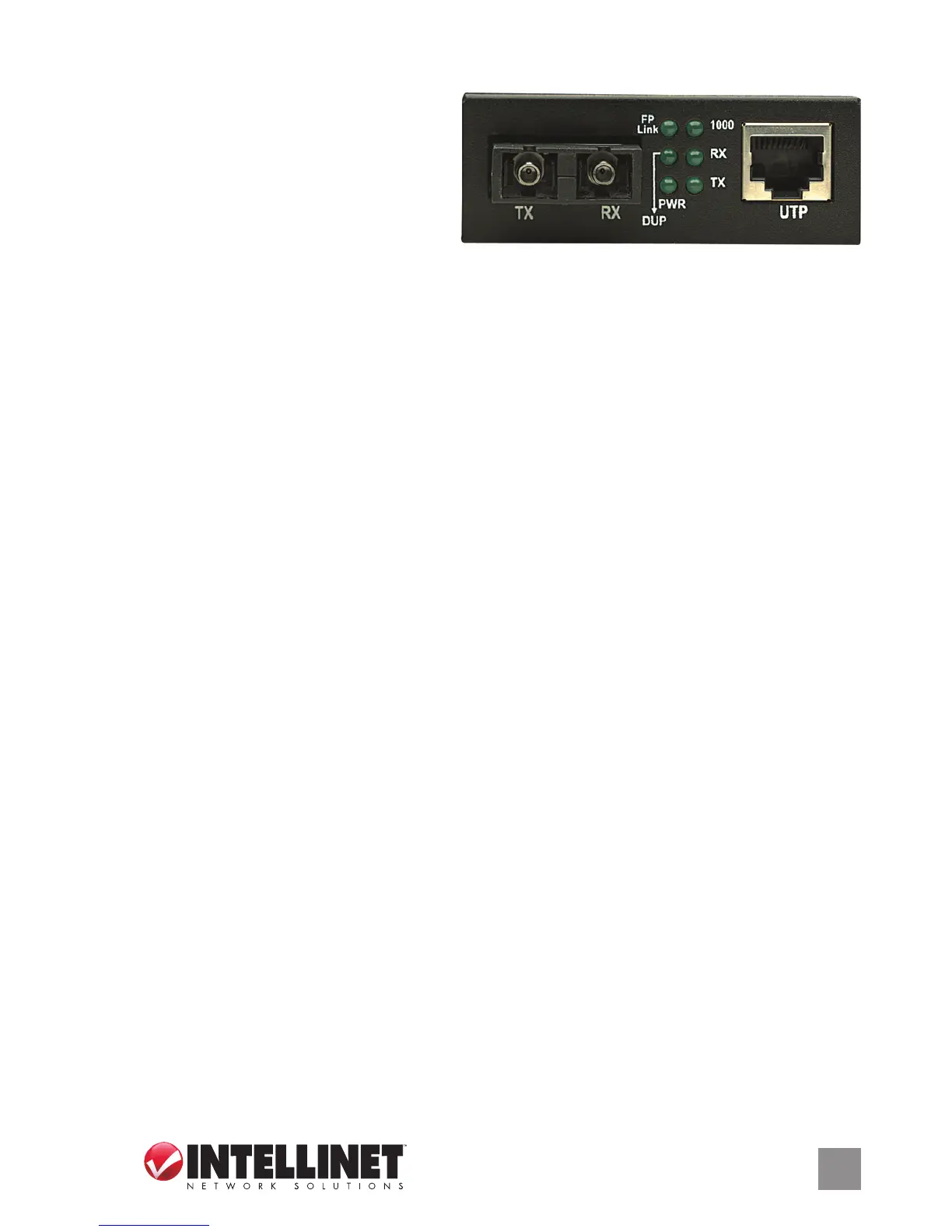

Front panel
LED Description
PWR The power adapter is connected when lit.
1000M
1000 Mbps link on the twisted
pair connection when lit.
100M 100 Mbps link on the twisted pair connection when lit.
Link/Act (TP = RJ45;
FX = Fiber)
– Active link when lit;
– Data traffic when flashing;
– No active network link when unlit.
FDX/COL (for TP/RJ45)
– Full duplex connection when lit;
– Data collisions when flashing;
– Half duplex when unlit.
SD (for FP/Fiber)
– Fiber optic signal is detected when lit;
– No signal when unlit.
Rear Panel
Power
Plug the power adapter into the 5 V DC input jack on the media converter,
then connect it to a regular power outlet. Only use the included power
adapter or one with matching specifications (output of 5 V DC, at least 1 A).
3
