14 // tazer user manual INTENSE CYCLES // 1 5
ITEM
NO.
ITEM
PART
NUMBER
DESCRIPTION QTY. TORQUE SPEC.
39
BHCS M5 X 12 410010
Skid Plate Bolt, Button
Head, M5 X 12
2
6 Nm /
54 in-lbs
40
SHCS M8 x 35 410045 Shock Bolt, M8 x 35 Steel 1
16 Nm /
140 in- lbs
41
SHCS M6 x 18 410 0 4 8
Seat Clamp Bolt, Socket
Head, M6 x 18
1
5 Nm /
45 in-lbs
42
M5 x 11 410068
Fender / Skidplate Bolt, Low
prole Socket Head, M5 x 11
5
1 Nm /9 in-l bs
(Fender)
2 Nm/18 in -lbs
(Skidplate)
43
Bearing 7902 430007
15 x 28 x 7 2RS
MAX Angular Contact Bearing
2 N/A
44
Bearing 6802 430008
15 x 24 x 5 2RS
MAX Radial Bearing
4 N/A
45
Bearing 6800 43 00 11
10 x 19 x 5 2RS
MAX Radial Bearing
2 N/A
46
Bearing 3802 43 0014
15 x 24 x 7,
Double Row Radial Bearing
2 N/A
47
Flack Guard
Downtube
500301
Flack Guard Tazer
Downtube
1 N/A
48
Flack Guard CS 500302
Flack Guard Tazer
Chainstay
1 N/A
49
Flack Guard 500303 Flack Guard Tazer Seatstay 1 N/A
50
Flack Guard 500304
Flack Guard Tazer
Seat Tube Protector
1 N/A
51
Flack Guard 500305 Flack Guard Tazer RT Strut 1 N/A
52
Head Badge 500335 Head Badge Flame Logo 1 N/A
53
Rear Shock 185 x 55, Trunnion 1 N/A
54
Battery Shimano E8010 1 N/A
55
Front Triangle Carbon, 3 Sizes 1 N/A
56
Motor Shimano E8000 1 N/A
57
Rear Triangle Carbon, 1 Size 1 N/A
16 Nm / 140 in-lbs
5 Nm / 45 in-lbs
16 Nm / 140 in-lbs
M8 HEX 7 Nm / 60 in-lbs
M5 HEX 14 Nm / 125 in- lbs
20 Nm / 175 in-lbs
M8 HEX 7 Nm / 60 in-lbs
M5 HEX 14 Nm / 125 in- lbs
M8 HEX 7 Nm / 60 in-lbs
M5 HEX 14 Nm / 125 in- lbs
Derailleur Cap: 11 Nm / 100 in-lbs
Axle (non-drive side): 11 Nm / 100 in-lbs
Adjuster cone (non-drive side): M5 HEX
14 Nm / 125 in-lbs

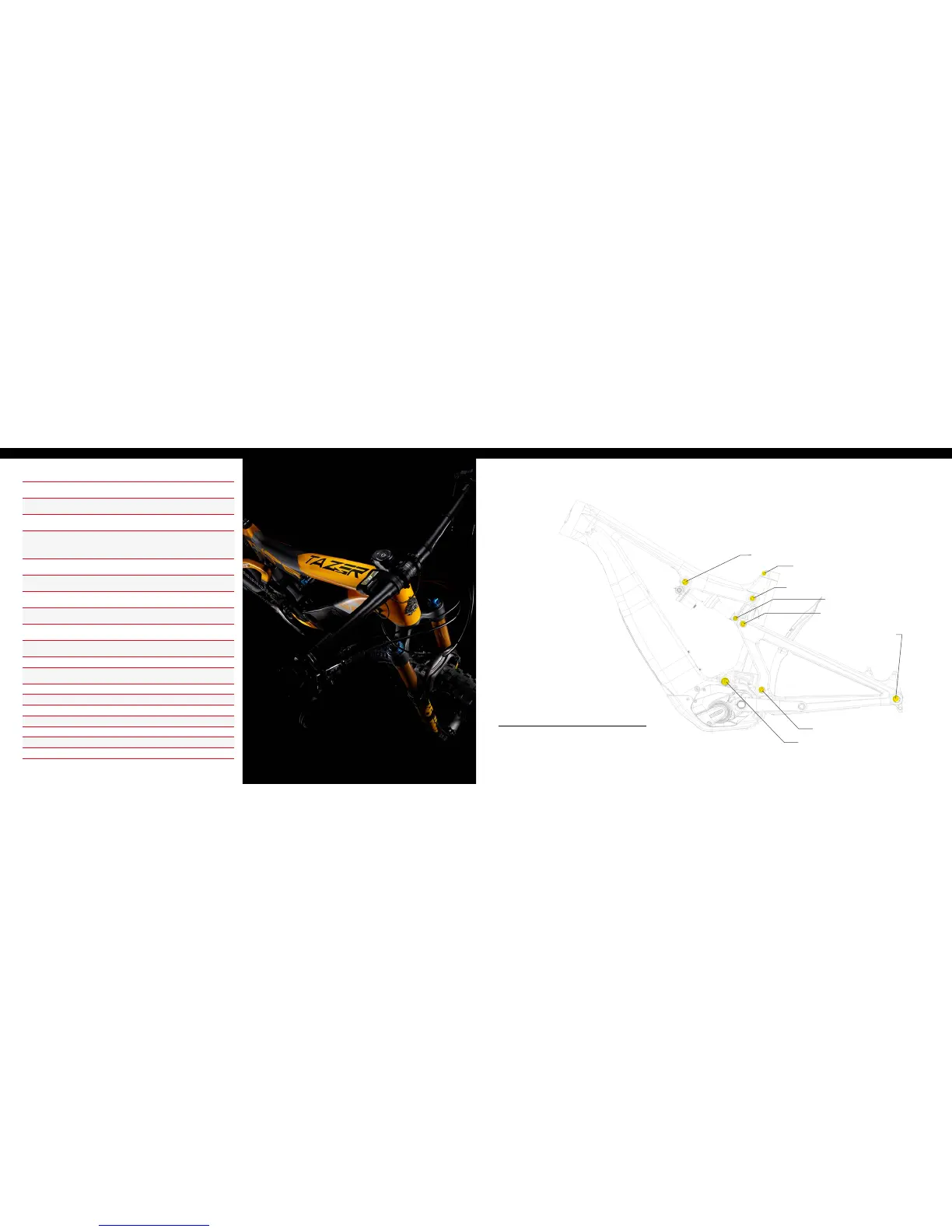

torque specifications //
Achieving proper torque is vital to ensuring the safe performance and function
of the tazer frame. Failure to do so could result in sub-optimal performance
of your frame as well as premature wear and tear of individual parts.
additional reference
In addition to this chart, torque values are laser etched
onto corresponding hardware for your reference.
To Next Page
