12 // tazer user manual INTENSE CYCLES // 1 3

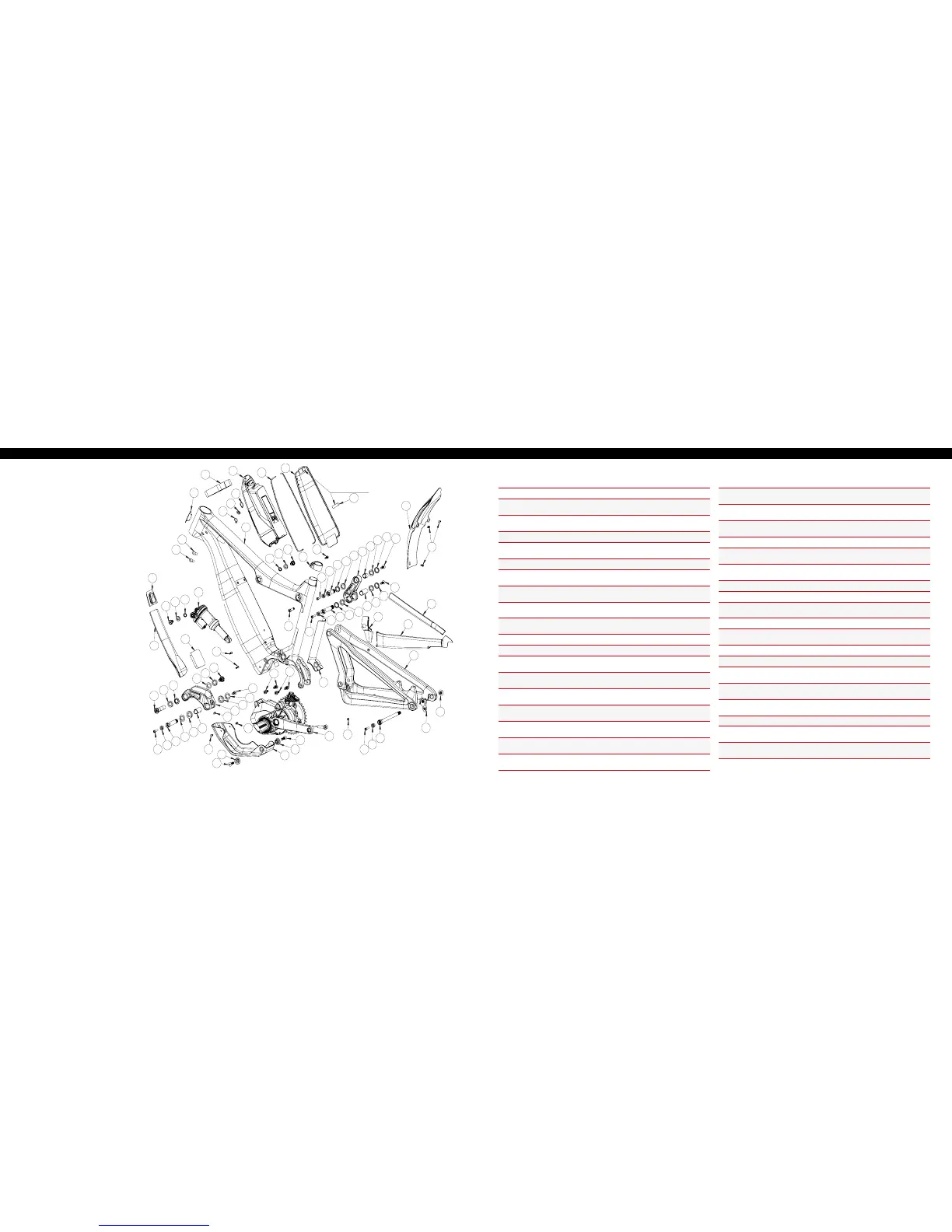

exploded view and b.o.m. //
52
15
45
24
28
54
47
15
26
36
20
41
44
3
12
14
10
44
3
3
8
6
2
56
55
22
23
43
5
46
37
11
39
1
4
17
7
9
38
13
23
23
44
3
19
9
38
44
38
9
43
46
17
4
28
28
25
45
16
16
42
34
40
49
48
29
57
50
42
42 21
27
21
22
18
18
32
33
30
31
Foam in Door Latch
53
9
38
51
35
(continued on next page)
ITEM
NO.
ITEM
PART
NUMBER
DESCRIPTION QTY. TORQUE SPEC.
1
Bearing Spacer 130754 Lower Link Bearing Spacer 1 N/A
2
Rear Axle 130757
Axle Rear
148 x 12mm Boost
1
11 Nm /
100 in-lbs
3
Bearing Cap 130765
Upper Link Bearing Cap,
24mm
4 N/A
4
Bearing Cap 130778 Lower Link Bearing Cap, 28mm 2 N/A
5
Pivot Bolt 13 0785 Lower Link Pivot Bolt 1
20 Nm /
175 in-lbs
6
Hanger 13079 0 Derailleur Hanger, Forged 1 N/A
7
Pivot Bolt 13 0795
Lower Link Expander Bolt
(Lower Pivot)
1
7 Nm /
60 in-lbs
8
Hanger Bolt 130798 Derailleur Hanger Bolt 1
11 Nm /
100 in-lbs
9
Cone Adjuster 130807
Cone Adjuster,
8.3 mm Height
4 N/A
10
Bearing Spacer 130847
Upper Link Bearing Spacer
(Upper Pivot)
1 N/A
11
Lower Link 130848 Forged Lower Link Tazer, Blk 1 N/A
12
Forged Top Link 130849 Forged Top Link Tazer, Blk 1 N/A
13
Axle Lower 130850 Axle Lower Pivot Tazer 1
20 Nm /
175 in-lbs
14
Bearing Spacer 1308 51
Upper Link Bearing Spacer
(Lower Pivot)
1 N/A
15
Bearing Spacer 13 0852
Shock Mount Bearing
Spacer (Trunion Pivot)
2 N/A
16
Shock Bolt 130853 Trunion Pivot Shock Bolt 2
16 Nm /
140 in- lbs
17
Bearing Spacer 130860
Lower Link Bearing Spacer
(Upper Pivot)
2 N/A
18
Drive Unit Bolt 130862
Drive Unit Bolt M8 x 18 with
T40 B roac h
4
10 Nm /
88 in-lbs
19
Pivot Bolt 1308 63
Upper Link Expander Bolt
(Upper Pivot)
1
7 Nm /
60 in-lbs
ITEM
NO.
ITEM
PART
NUMBER
DESCRIPTION QTY. TORQUE SPEC.
20
Pivot Bolt 1308 64
Upper Link Expander Bolt
(Lower Pivot)
1
7 Nm /
60 in-lbs
21
Skidplate
Spacer
130867 Skidplate Spacer 2 N/A
22
FHCS M8 x 30 130868
Drive Unit /Skid Plate Bolt
M8 x 1.25 x 30 mm
2
10 Nm /
88 in-lbs
23
Plug 14 0038 Lower Link Pivot Plug 3 N/A
24
Cable Guide
Plug
140039 Cable Guide Plug, Solid 1 N/A
25
Cable Guide
Plug
140040 Guide Cable Plug, 5mm ID 1 N/A
26
Battery Door 140050 Battery Door 1 N/A
27
Skid Plate 140051 Skid Plate 1 N/A
28
Cable Guide
Plug
140052 Guide Cable Plug, 4mm ID 3
29
Rear Fender 140 054 Rear Fender 1 N/A
30
Battery Pull
Strap
140055 Batter y Pull Strap 1 N/A
31
Foam Pad 140056 Batter y Door Foam Pad 1 N/A
32
Gasket 140057 Battery Door Gasket 1 N/A
33
Foam Pad 140058
Battery Compartment
Foam Pad
1 N/A
34
Battery Charge
Window
140059 Battery Charge Window 1 N/A
35
Grommet 1400 60
Speed Sensor Wire
Grommet
1 N/A
36
Seat Clamp 340342 Bolt-on Seat Clamp 1 N/A
37
Zerk Fitting 401011 M6 x 1.0 1
5 Nm /
40 in-lbs
38
SHCS M6 x 22 410009
Cone Adjuster Bolt, Socket
Head, M6 x 22
4
14 Nm /
125 in-lbs
