P-2000/P-3200 Power Amplifier

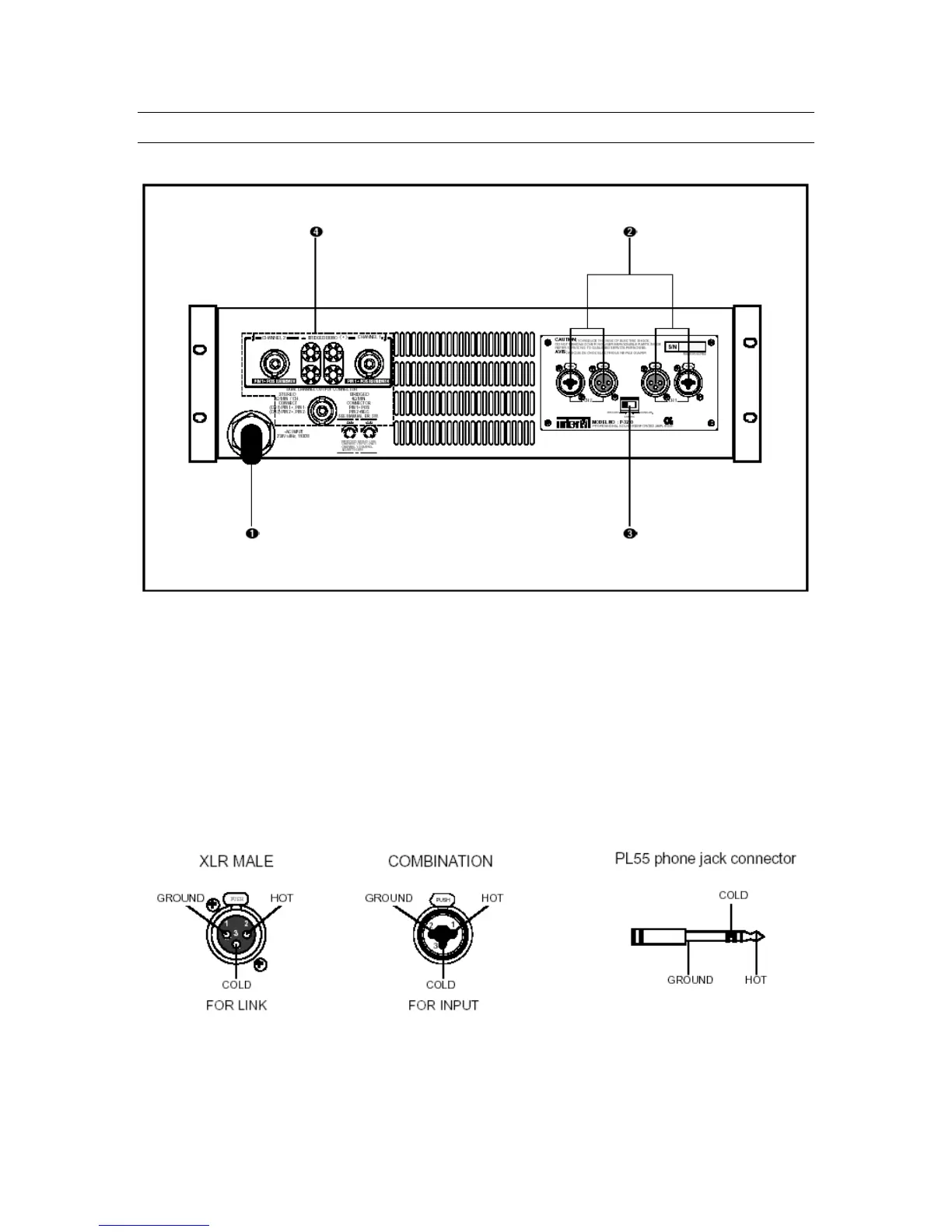

Rear Panel Controls
1. AC Input
Connect this cable to a standard AC outlet.
2. Input and Link Output Connectors
Balanced input connectors are provided on hybrid XLR/TRS jacks. Link output
connectors are provided on three-pin XLR connectors, and are used to operate
multiple amplifiers in parallel mode. (When operating in bridged mono mode,
only channel one input is active.)
Wiring for the input and link connectors is shown below:
3. Speaker Output Terminals
These five-way binding posts and speaker connect jacks are used to connect
speakers to the unit.
9
