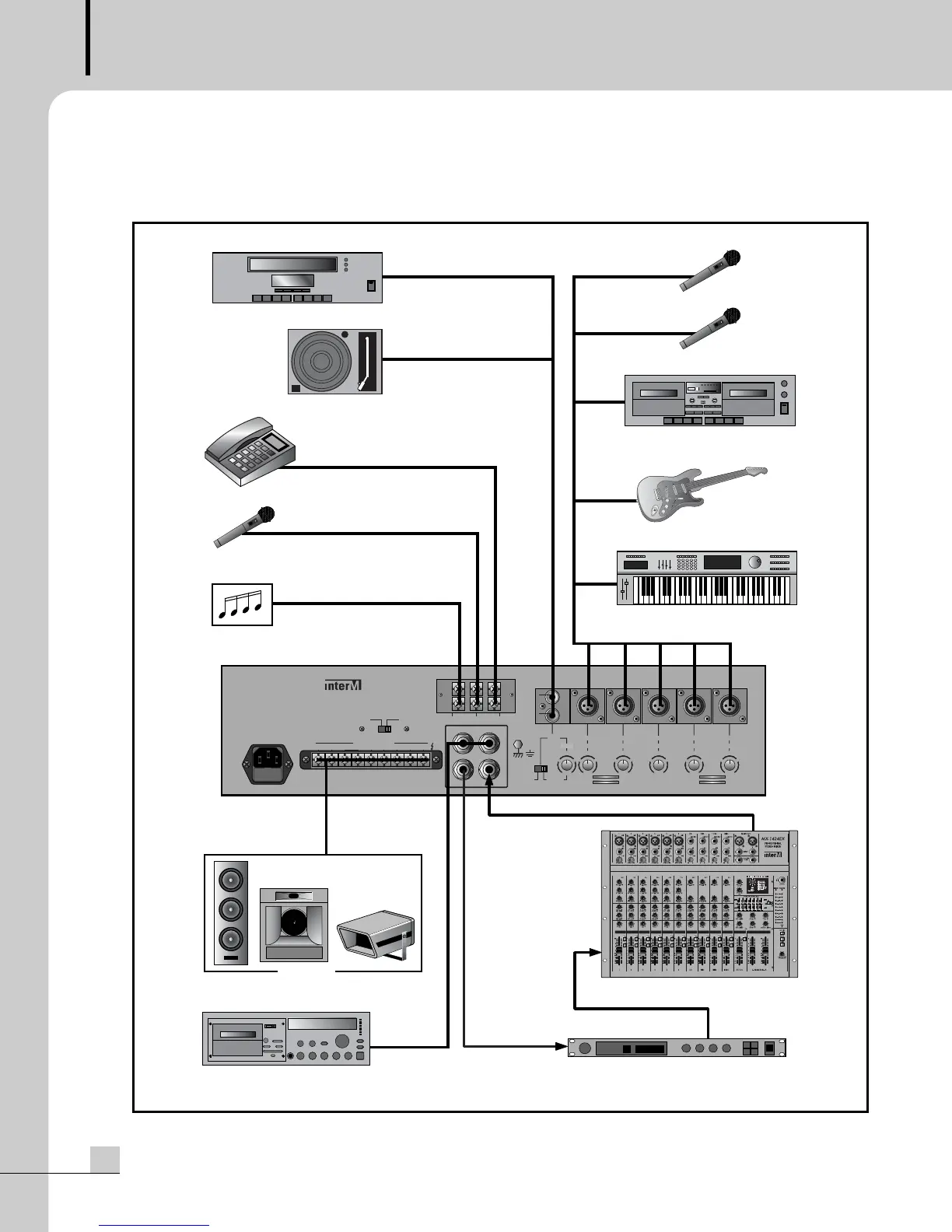

Inter-m PA-2000A User Manual

PUBLIC ADDRESS AMPLIFIER
10
PA-2000A/4000A/6000A
Applications
Applications
4Ω
8Ω
COM
SPEAKER OUTPUT
LINK OUT LINK IN
PREAMP OUT AMP IN
GND
BEFORE CONNECTING THE INPUT SOUND SOURCE.
PLEASE CONFIRM THE POSITION OF GAIN CONTROL.
( REFER OPERATING INSTRUCTION )
MIC ATT
CH 6
MIC/AUX
CH 5
MIC ATT
AUX
MIC
GAIN
AUX
MIC
CH 4
MIC ATT
AUX
MIC
GAIN
CH 3
MIC ATT
AUX MIC
GAIN
CH 2
MIC ATT
AUX
MIC
GAIN
CH 1
MIC ATT
AUX
MIC
GAIN
70V (83Ω)
100V (165Ω)
IMPEDANCE SELECTOR
SP 1 SP 2 SP 3 SP 4 SP 5
EXT/MUTE TEL INEXT/CHIME
( )
FUSE T1AL / 250V
PUBLIC ADDRESS AMPLIFIER
MODEL NO. PA-2000A
GAIN
www.inter-m.com
PHONO
L/HOT
R/COLD
CASSETTE DECK
SPEAKER
CHIME
MIC
AUDIO MIXER
Effect Processor
CASSETTE DECK
GUITAR
MIC
ON
ON
ELECTRONIC ORGAN
MIC SWITCH
TELEPHONE
CD PLAYER
TURN TABLE
ON
